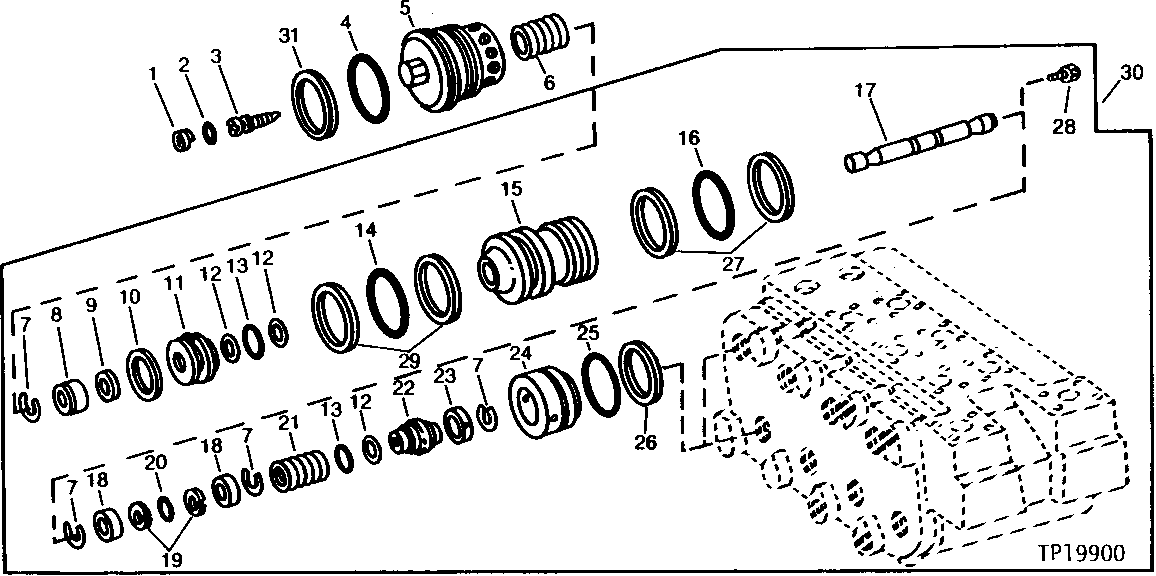

GRAPPLE VALVE STANDARD POPPET VALVE ASSEMBLY [03F19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42427	2	BACK-UP RING	(K)
2	T42426	2	O-Ring	(K)
3	T42425	2	SCREW	-
4	B3690R	2	O-Ring	(K) (SUB FOR T42421, THIS APPLICATION) (ALSO ORDER R75790)
5	R72873	2	FITTING	(SUB FOR AT41438 AND AR91676)
6	T42410	1	Spring	-
7	T48322	4	SNAP RING	(K) (SUB T56343)
7	T56343	5	SNAP RING	(K)
8	T42411	1	RETAINER	-
9	T42422	1	SHIM	(K) 0.51 MM (.020")
10	T42420	1	RING	-
11	T42409	1	POPPET	-
12	R26551	2	BACK-UP RING	(K)
13	R394R	3	O-Ring	(K)
14	R61015	1	O-Ring	(K) (SUB FOR T42418, T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
15	T42419	1	SLEEVE	-
16	R81906	1	O-Ring	(K) (SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
17	T42408	1	SHAFT	-
18	-	2	Part 19	( T42417 NO LONGER AVAILABLE)
19	-	2	Part 20	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
20	-	1	Part 21	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
21	T48598	1	SPRING	-
22	T48597	1	POPPET	-
23	T59720	1	RING	(SUB FOR T42415)
24	R73261	1	SEAT	(SUB FOR T42404, T54462 AND T56309)
25	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
26	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USED WITH R30319)
27	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USED WITH R81906 AND R61015)
28	K40994	1	Fitting	-
29	R78392	2	BACK-UP RING	(K)
30	AT41437	2	VALVE	WITH ANTI-CAVITATION
31	R75790	1	BACK-UP RING	(K) (USED WITH B3690R)

GRAPPLE VALVE STANDARD POPPET VALVE ASSEMBLY [03F19]
