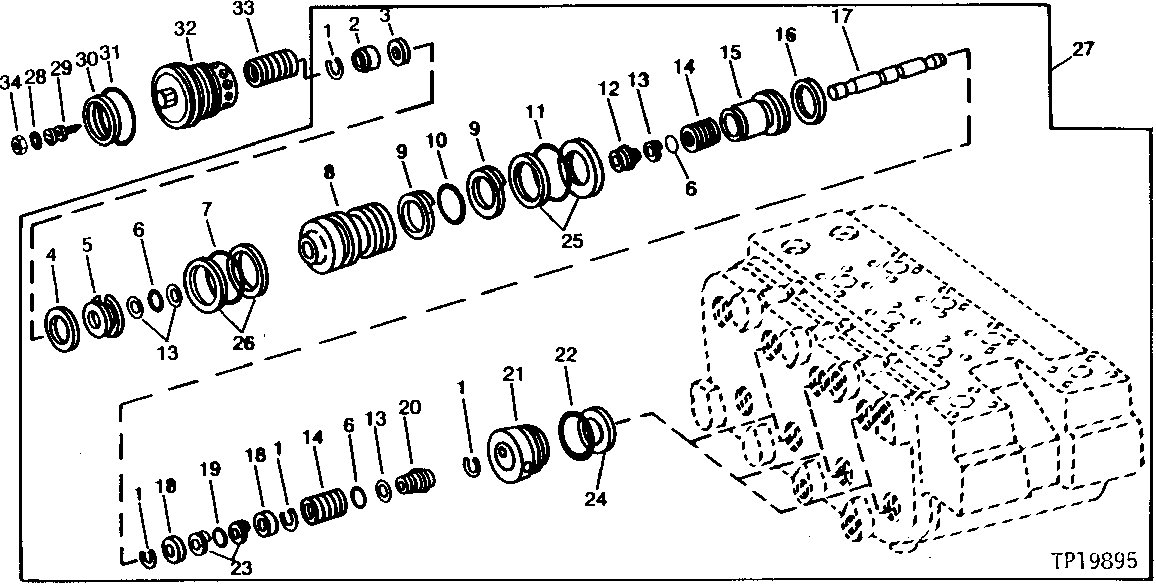

GRAPPLE VALVE DELUXE POPPET VALVE ASSEMBLY [03F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T56343	4	SNAP RING	(K)
1	T48322	4	SNAP RING	(K) (SUB T56343)
2	T42411	1	RETAINER	-
3	T42422	1	SHIM	(K) 0.51 MM (.020")
4	T42420	1	RING	-
5	T42409	1	POPPET	-
6	R394R	3	O-Ring	-
7	R61015	1	O-Ring	(K) (SUB FOR T42418, T59952 AND R31378, THIS APPLICATION) (ALSO ORDER (2) R78392)
8	T52755	1	CYLINDER LINER	(SUB FOR T42428)
9	R35473	2	Back-Up Ring	(K)
10	R29463	1	O-Ring	(K)
11	R81906	1	O-Ring	(K) (SUB FOR T42416 AND T11220, THIS APPLICATION) (ALSO ORDER (2) R81189)
12	T48596	1	POPPET	-
13	R26551	4	BACK-UP RING	(K)
14	T48598	2	SPRING	-
15	T42430	1	SLEEVE	-
16	T52754	1	RING	(SUB FOR T42429)
17	T42408	1	SHAFT	-
18	T42417	2	RETAINER	-
19	-	1	Part 20	(K) ( T42407 NO LONGER AVAILABLE) (SUB RE30357)
20	T48597	1	POPPET	-
21	R73260	1	SEAT	(SUB FOR T49191, T54463 AND T54731)
22	R30319	1	O-Ring	(K) (SUB FOR T42414) (ALSO ORDER R81188)
23	-	2	Part 24	(K) ( T42406 NO LONGER AVAILABLE) (SUB RE30357)
24	R81188	1	BACK-UP RING	(K) (SUB FOR T60654, THIS APPLICATION) (USED WITH R30319)
25	R81189	2	BACK-UP RING	(K) (SUB FOR U41971, THIS APPLICATION) (USED WITH R81906 AND R61015)
26	R78392	2	BACK-UP RING	(K)
27	AT47738	6	VALVE	-
28	T42426	6	O-Ring	(K)
29	T42425	6	SCREW	-
30	R75790	6	BACK-UP RING	(K) (USED WITH B3690R)
31	B3690R	6	O-Ring	(K) (SUB FOR T42421, THIS APPLICATION) (ALSO ORDER R75790)
32	R72873	6	FITTING	(SUB FOR AT41438 AND AR91676)
33	T42410	1	Spring	-
34	T42427	6	BACK-UP RING	(K)
