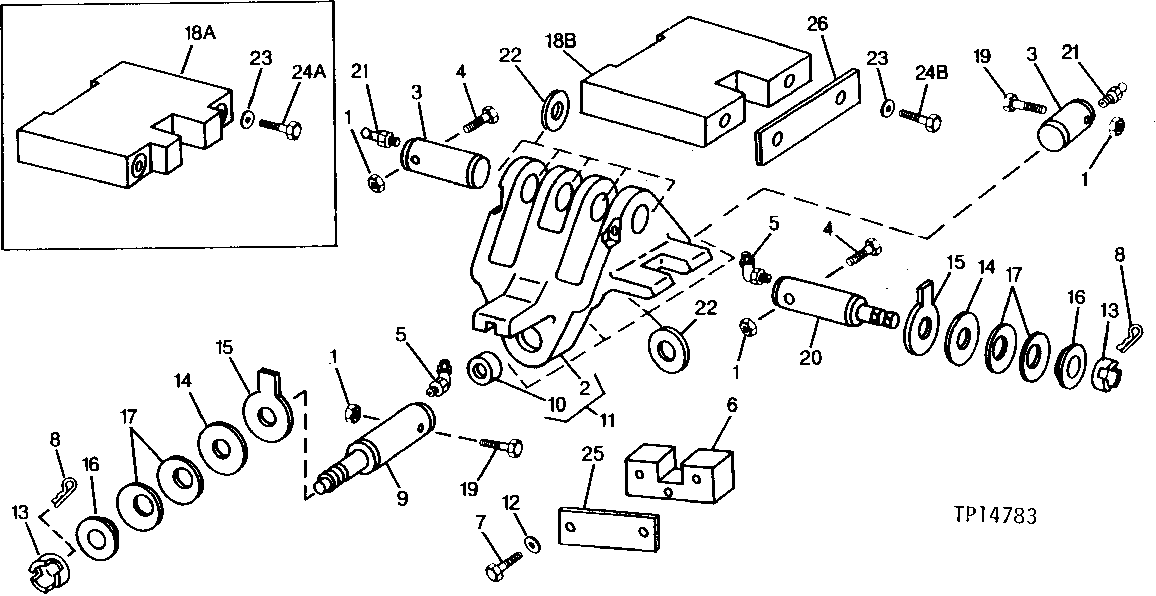

GRAPPLE DAMPENING YOKE (SINGLE FUNCTION BOOM) [03F06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H32811	4	Lock Nut	-
2	-	1	Part 2	( T77367 NO LONGER AVAILABLE, SUB AT90184, (4) AT106760, (3) T120149, (3) T90075, T90081, T90076, (3) 24H1272 AND T90083)
3	T120172	2	PIN FASTENER	(SUB FOR T77368)
4	19H3599	2	Cap Screw	1/2" X 5-1/4"
5	JD7778	2	Lubrication Fitting	30°, 1/8"
6	T77416	1	PLATE	-
7	19H1781	3	CAP SCREW	1/2" X 3-1/2"
8	11M7085	2	Cotter Pin	6.300 X 63 MM
9	T90076	1	PIN FASTENER	(SUB FOR T77415) (ALSO ORDER (2) AT117444, (3) T120149 AND (3) 24H1272)
10	T26810	2	BUSHING	-
11	AT90184	1	YOKE	(SUB FOR AT75967) (ALSO ORDER (4) AT106760, (3) T120149, (3) T90075, T90081, T90076, (3) 24H1272 AND T90083)
12	T21242	3	Washer	-
13	14H991	2	Nut	1-1/2"
14	T77371	8	WASHER	-
15	-	5	Part 15	( T77370 NO LONGER AVAILABLE) (ORDER ONLY 1 PIECE FOR EACH SET OF PARTS REQUIRED ON STOCK ORDER) FOR UPPER DAMPENER APPLICATIONS, FURNISH (3) T120149, (2) AT106760, T90083, AND T90074. FOR LOWER DAMPENER APPLICATIONS, FURNISH (2) AT117444, (3) T120149, AND T90076. OPTION: WHEN REPLACING (2) T77370 PLATES WITH (2) T120149 PLATES, ONE T90074 IS REQUIRED ON THE UPPER ASSEMBLY AND ONE T90076 ON THE LOWER ASSEMBLY
16	T77372	1	SPACER	-
17	T77373	4	SPRING WASHER	SPRING
19	19H2224	2	CAP SCREW	1/2" X 4-3/4"
20	T90074	1	PIN FASTENER	(SUB FOR T77369) (ALSO ORDER (2) AT106760, T90083 AND (3) T120149)
21	JD7759	2	Lubrication Fitting	STRAIGHT
22	24H1613	1	WASHER	2-17/32" X 3-1/4" X 0.120"
23	T497T	2	WASHER	-
25	T81365	1	STRAP	-
26	T81364	1	Strap	(USE WITH T81377, THIS APPLICATION)
18A	T77374	1	RETAINER	(SUB T81377 AND (2) 19H3170)
18B	T90083	1	RETAINER	(SUB FOR T81377) (ALSO ORDER T90074, (3) T120149 AND (2) AT106760)
24A	19H2969	2	Cap Screw	HS, SAE 8, 5/8" X 3-1/2"
24B	19H3170	2	Cap Screw	5/8" X 4-1/2"
