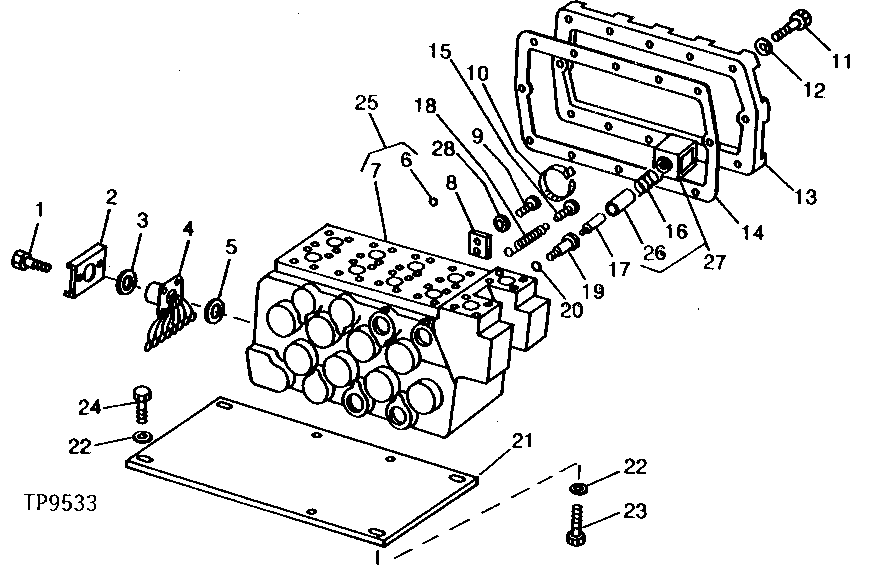

GRAPPLE CONTROL VALVE BODY AND COVER (SINGLE FUNCTION BOOM) [03F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	2	Cap Screw	3/8" X 3/4"
2	-	1	Part 2	( T42398 NO LONGER AVAILABLE)
3	24H1226	1	Washer	1/2" X 1-1/4" X 0.083", (SUB FOR 24H1474)
4	-	1	Part 4	(SUB FOR AT41440 AND AT51694) ( RE15579 NO LONGER AVAILABLE FOR SERVICE)
5	T42399	1	BACK-UP RING	-
6	400R	4	Ball	-
6	400R	5	Ball	-
6	400R	6	Ball	-
7	T54172	1	HOUSING	(SUB AT54301) (SUB FOR T42458)
8	T42401	3	PAD	-
8	R79632	1	SPACER	(NOT ILLUSTRATED) (GROUND)
9	T42402	8	SCREW	-
10	AT41441	2	TIE BAND	-
11	19H1990	12	Cap Screw	1/2" X 2-1/4"
12	T20168	12	Washer	-
13	R66847	1	COVER	-
13	T42448	1	COVER	(SUB R66847)
14	T42447	1	GASKET	-
15	21H1307	6	SCREW	4.166 X 11.125 MM (0.164" X 7/16") (SUB FOR T42403 OR M45349)
16	-	1	Part 20	( R69561 NO LONGER PROVIDED)
17	T42397	6	PIN FASTENER	SOLENOID VALVE
18	T42400	6	SPRING	-
19	R73431	6	VALVE SEAT INSERT	SOLENOID VALVE, (SUB FOR T42396)
20	R30903	8	O-Ring	(K)
21	T44167	1	PLATE	-
22	T29342	7	Washer	-
23	19H2898	3	Cap Screw	1/2" X 1-1/4"
24	19H1127	4	CAP SCREW	1/2" X 1-5/8"
25	AT54301	1	HOUSING	(SUB FOR AT42912)
25	AR99248	1	KIT	(INCLUDES (2) AU40527)
26	-	1	Part 31	( R69560 NO LONGER AVAILABLE)
27	AR89610	6	SOLENOID	(SUB FOR AT41448)
28	12H295	1	Lock Washer	0.190"
