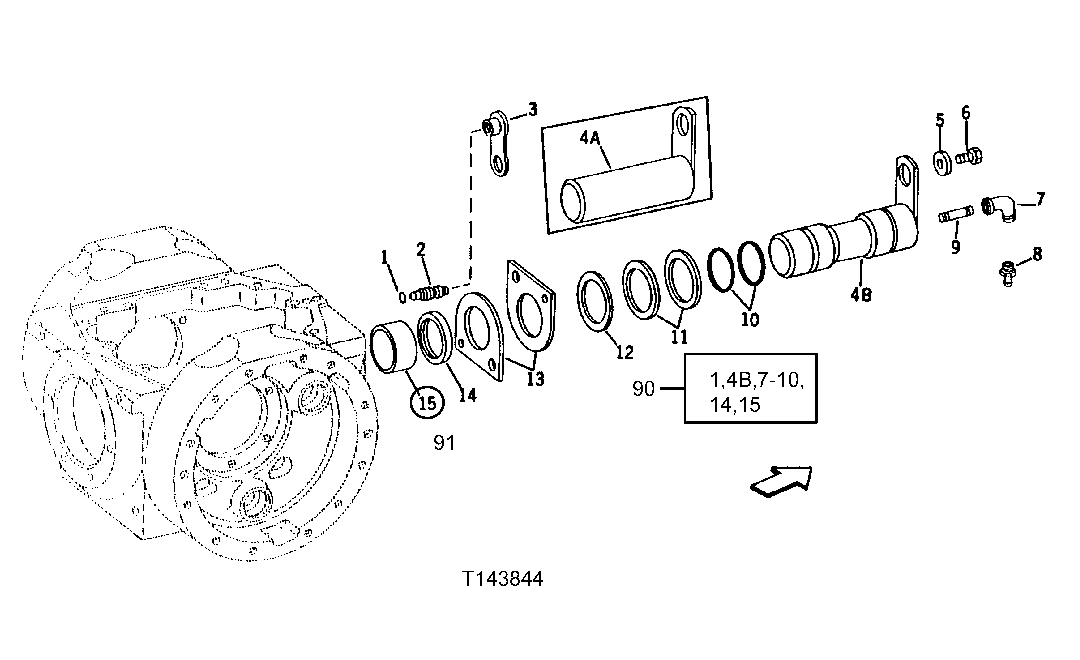

FRONT DIFFERENTIAL CASE PIN WITH STRAP [01C07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	400R	1	Ball	(A)
2	R21612	2	Bleed Valve	-
3	R47862	1	Cap	-
5	T20217	1	Washer	-
6	19H3385	1	Cap Screw	1/2" X 1-1/8"
7	15H95	1	ELBOW FITTING	(A) 90°
8	JD7759	1	Lubrication Fitting	(A) 1/8"
9	29H727	1	THREADED NIPPLE	(A) 1/8" X 2-1/2"
10	N170851	2	O-RING	(A) (USE IF AVAILABLE)
10	T70321	2	Washer	(SUB FOR N170851)
11	T27125	1	WASHER	-
12	T57548	1	SHIM	0.46 MM (.018")
13	T64255	2	PLATE	(SUB FOR T40420)
14	AT43415	1	SEAL	-
14	AA10570	1	SEAL	(A)
15	R55523	1	BUSHING	(A) (C) (D)
90	AT61384	1	PIN FASTENER	(CONTAINS ALL PARTS IDENTIFIED BY (A))
91	AR74028	1	CASE	(MARKED R57901) (INCLUDES 400R STEEL BALL) (SUB AR92876) (ALSO ORDER AT61384 FOR FRONT) (CONTAINS ALL PARTS IDENTIFIED BY (C))
91	AR92876	1	CASE	(MARKED R70710 OR R77294) (SUB FOR AR89814, MARKED R68920) (CONTAINS ALL PARTS IDENTIFIED BY (D))
4A	AT51769	1	PIN FASTENER	(WITH PLATE) (SUB FOR AT45089) (SUB AT61384)
4B	AT61383	1	PIN	(A) (WITH PLATE)
4B	AT55562	1	PIN FASTENER	(WITH PLATE) (SUB AT61384)

FRONT DIFFERENTIAL CASE PIN WITH STRAP [01C07]
