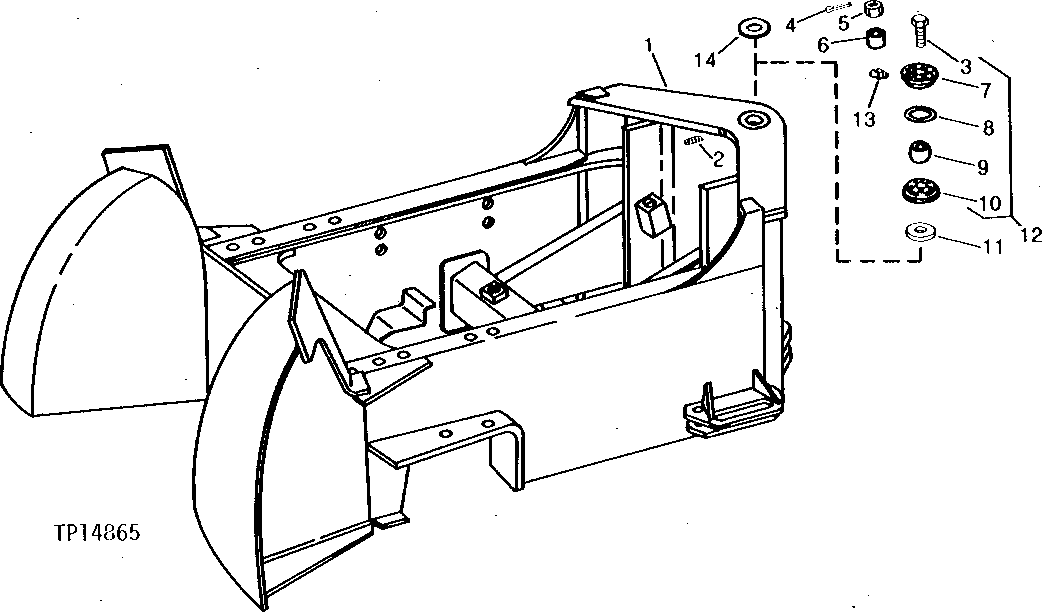

EQUIPMENT FRAME (640 SKIDDER) [02F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT42114 NO LONGER AVAILABLE)
2	JD7763	1	Lubrication Fitting	45°, 1/8", (SUB FOR JD7781)
3	19H3065	6	Cap Screw	3/8" X 2", (SUB FOR T43972)
3	19H2735	6	Cap Screw	1/2" X 2"
4	11M7083	1	Cotter Pin	3.200 X 50 MM, (USE WITH AT42789)
4	11M7085	1	Cotter Pin	6.300 X 63 MM, (USE WITH AT83003)
5	14H890	1	Nut	1-1/4", (USE WITH AT42789)
5	14H927	1	Nut	1-1/4", (USE WITH AT83003)
6	T43967	1	BUSHING	UPPER, (SUB T81452, AT83003, 14H927 AND 11H250)
6	T81452	1	BUSHING	UPPER, (USE WITH AT83003)
7	T77597	1	BALL JOINT SOCKET	UPPER HALF, (USE WITH AT76427)
7	T67087	1	SOCKET	(SUB FOR T60593) (SUB AT76427) UPPER HALF
7	T43969	1	SOCKET	UPPER HALF, (SUB AT76427)
8	T43970	1	SHIM	.003"
8	T43971	1	SHIM	.010"
8	T77599	1	SHIM	.003", (USE WITH AT76427)
8	T77600	1	SHIM	.010", (USE WITH AT76427)
9	T43966	1	BALL	-
10	T43968	1	SOCKET	LOWER HALF, (SUB AT76427)
10	T67088	1	SOCKET	LOWER HALF, (SUB FOR T60592) (SUB AT76427)
10	T77601	1	BALL JOINT SOCKET	LOWER HALF, (USE WITH AT76427)
11	T43965	1	WASHER	-
12	AT76427	1	BALL JOINT	-
13	JD7763	1	Lubrication Fitting	45°, 1/8"
14	T43971	1	SHIM	.010"
