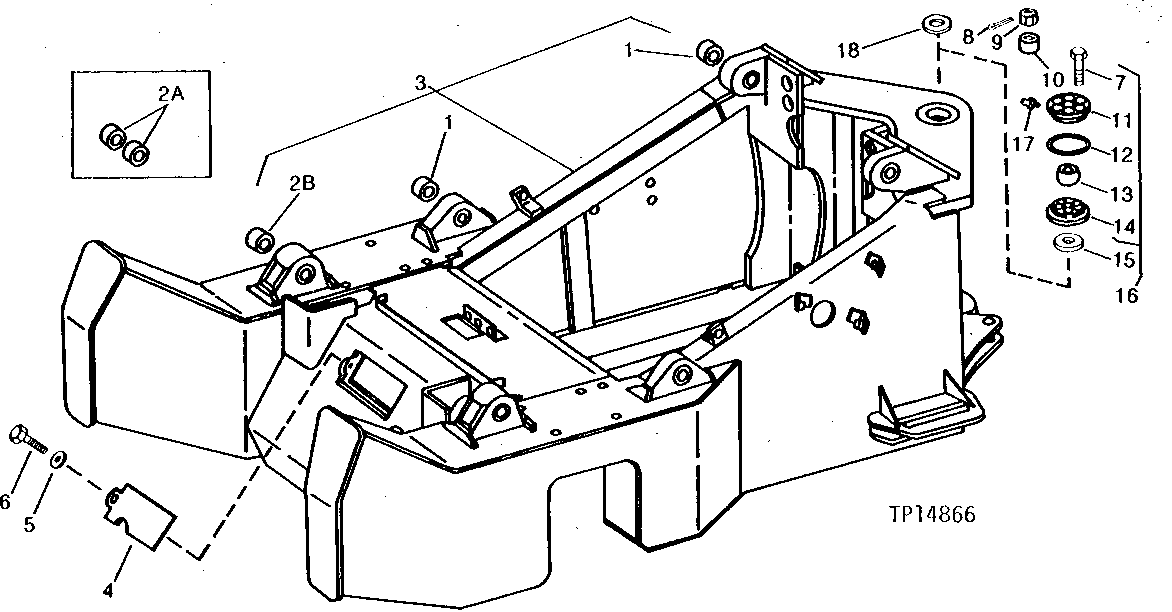

EQUIPMENT FRAME (640 GRAPPLE SKIDDER) [02F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T25877	4	BUSHING	-
3	AT43923	1	FRAME	(SUB AT52144)
3	-	1	Part 5	( AT52144 AND AT75935 NO LONGER AVAILABLE)
3	-	1	Part 6	( AT75935 NO LONGER AVAILABLE)
4	AT42449	1	DOOR	LOG BUMPER, (SUB T43548)
4	AT70726	1	DOOR	LOG BUMPER, (SUB FOR T43548)
5	T29342	1	Washer	-
6	19H2993	1	Cap Screw	1/2" X 1-1/2"
7	19H3065	6	Cap Screw	3/8" X 2", (SUB FOR T43972)
7	19H2735	6	Cap Screw	1/2" X 2"
8	11M7083	1	Cotter Pin	3.200 X 50 MM, (USE WITH AT42789)
8	11M7085	1	Cotter Pin	6.300 X 63 MM, (USE WITH AT83003)
9	14H927	1	Nut	1-1/4", (USE WITH AT83003)
9	14H890	1	Nut	1-1/4", (USE WITH AT42789)
10	T43967	1	BUSHING	UPPER, (SUB T81452, AT83003, 14H927 AND 11H250)
10	T81452	1	BUSHING	UPPER, (USE WITH AT83003)
11	T43969	1	SOCKET	UPPER HALF, (SUB AT76427)
11	T67087	1	SOCKET	(SUB FOR T60593) (SUB AT76427) UPPER HALF
11	T77597	1	BALL JOINT SOCKET	UPPER HALF, (USE WITH AT76427)
12	T43970	1	SHIM	.003"
12	T43971	1	SHIM	.010"
12	T77599	1	SHIM	.003", (USE WITH AT76427)
12	T77600	1	SHIM	.010", (USE WITH AT76427)
13	T43966	1	BALL	-
14	T43968	1	SOCKET	LOWER HALF, (SUB AT76427)
14	T67088	1	SOCKET	LOWER HALF, (SUB FOR T60592) (SUB AT76427)
14	T77601	1	BALL JOINT SOCKET	LOWER HALF, (USE WITH AT76427)
15	T43965	1	WASHER	-
16	AT76427	1	BALL JOINT	-
17	JD7763	1	Lubrication Fitting	45°, 1/8"
18	T43971	1	SHIM	.010"
2A	T32817	4	BUSHING	(SUB T49362, THIS APPLICATION)
2B	T49362	2	BUSHING	-
