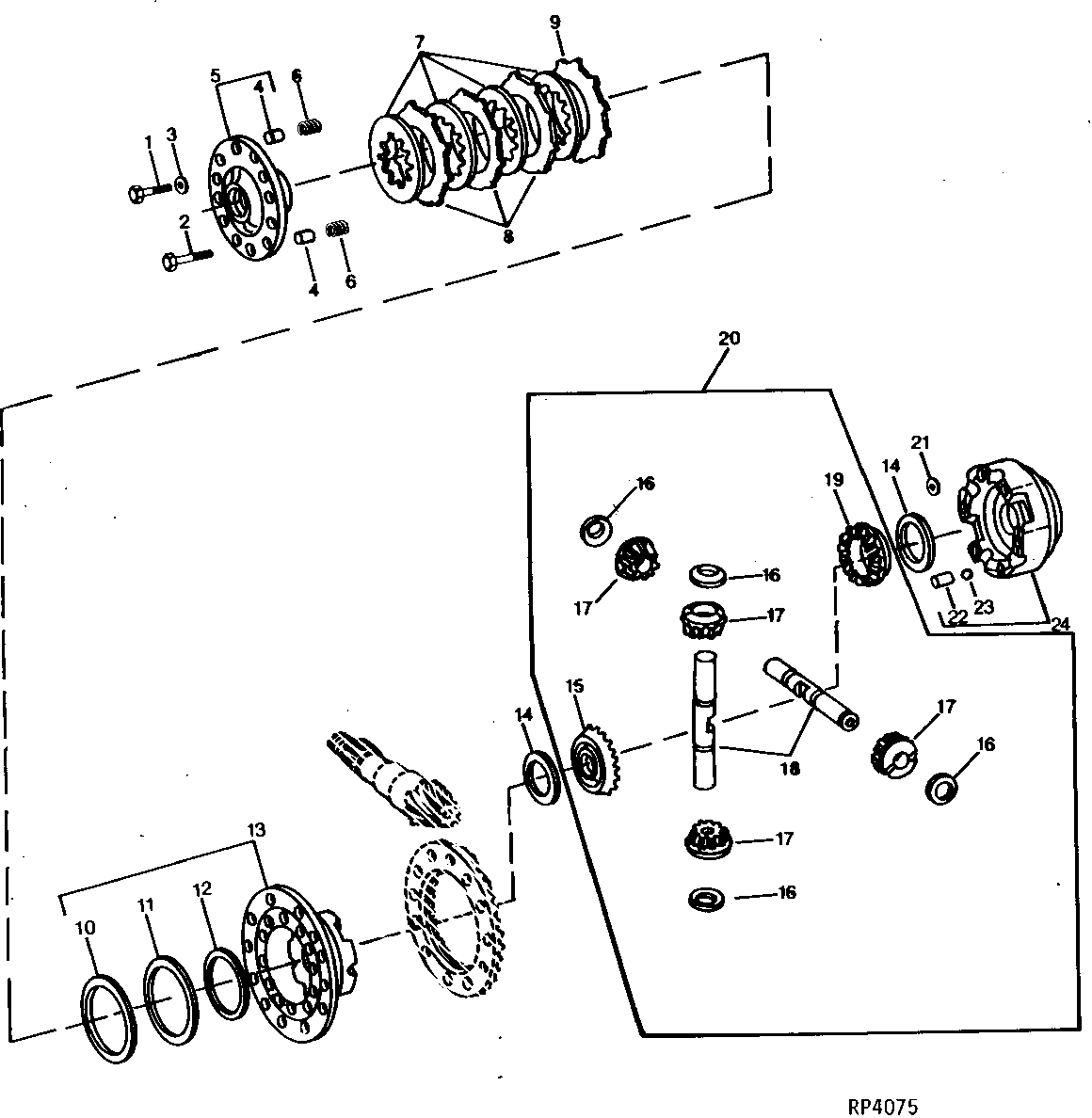

DIFFERENTIAL HOUSING (SERIAL NO. 502602- ) [01B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64524	2	Cap Screw	-
2	R64523	8	BOLT	-
3	R64525	10	Thrust Washer	-
4	R56504	2	Spring Pin	-
5	AR78834	1	COVER	(MARKED T34236, THIS APPLICATION) (SUB R78157 AND (2) R56504)
5	AR78834	2	COVER	(SUB R78157 AND (2) R56504)
6	R41770	2	Spring	-
7	RE239643	4	Disk With Inner Spline	(SUB FOR RE12518)
8	R34520	3	CLUTCH PLATE	-
9	R78156	1	Clutch Plate	(SUB FOR R34517)
10	R69011	1	Washer	(SUB FOR R41018, THIS APPLICATION)
11	R60122	1	Piston	-
12	R69012	1	Packing	(SUB FOR R44327, THIS APPLICATION)
13	AR95648	1	HOUSING	(MARKED R73003) (SUB FOR AR101067)
14	R77145	2	WASHER	(SUB FOR R65741)
15	R74869	1	Bevel Gear	(ALSO ORDER R77145)
16	R67811	4	Thrust Washer	-
17	R80879	4	Pinion	(SUB FOR R80240)
18	R63788	2	Shaft	-
19	R74868	1	Bevel Gear	(ALSO ORDER R77145)
20	RE16769	1	PINION	(SUB FOR AR101066 AND RE15628, THIS APPLICATION)
21	R60038	1	Packing	-
22	34H348	1	Spring Pin	3/8" X 1"
23	H871R	1	Ball	-
23	400R	2	Ball	-
24	AR96863	1	Housing	(MARKED R73002)

DIFFERENTIAL HOUSING (SERIAL NO. 502602- ) [01B21]
