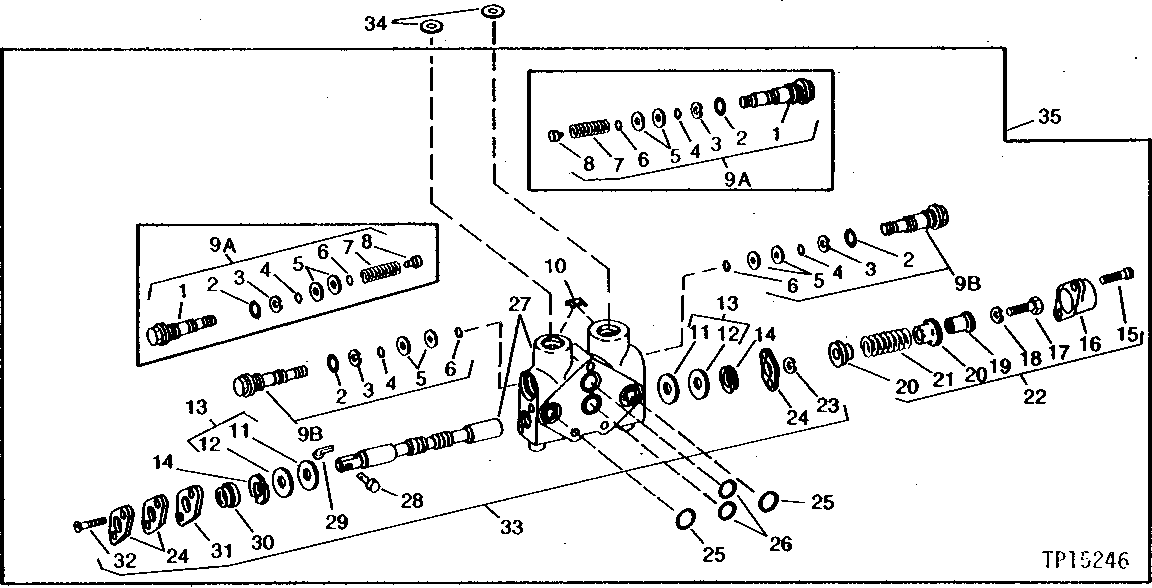

CONTROL VALVE ROTATE SECTION (MANUAL CONTROL VALVE) [03I11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(SUB PT8137)
2	W19903	2	O-Ring	(K1)
3	T35985	2	Back-Up Ring	(K1)
4	Z29304	2	O-Ring	(K1)
5	T35984	4	Back-Up Ring	INNER (K1)
6	H63283	2	O-Ring	(K1)
7	T36012	2	Spring	-
8	U13616	1	Pressure Relief Valve	-
10	T61263	2	REINFORCEMENT	-
11	T104783	2	O-Ring	(K) (K3) (SUB FOR U11296)
12	T104785	2	Back-Up Ring	(K)
13	-	1	Part 14	SPOOL SEAL (WHEN AT53858 IS NO LONGER AVAILABLE,SUB (2) T57246 AND (2) T104785)
14	-	2	Part 15	(SUB AT135683)
15	T35975	2	SCREW	(SUB T104773, THIS APPLICATION) (USE WITH T113022)
16	T113022	1	CAP	(ALSO ORDER (2) T104773)
17	21H1375	1	SCREW	5/16" X 3/4"
18	-	1	Part 19	(SUB AT53847)
19	-	1	Part 20	(SUB AT53847)
20	-	2	Part 21	(SUB AT53847)
21	-	1	Part 22	(SUB AT53847)
22	AT53847	1	STOP	-
23	-	1	Part 24	(SUB AT135683)
24	T104784	3	PLATE	-
25	T49819	2	O-Ring	(SUB FOR T106368) (USE WITH AT53861)
25	-	2	Part 27	(K4) (SUB AT160682)
26	T142419	2	O-Ring	(SUB FOR T113021) (USE WITH AT53861)
26	-	2	Part 29	(K4) (SUB AT160682)
27	-	1	Part 30	(SUB AT53861)
28	-	1	Part 31	(SUB AT135683)
29	11M7009	1	Cotter Pin	2 X 16 MM
30	-	1	Part 33	(K1) ( T35973 AND T126105 NO LONGER AVAILABLE)
31	T113012	1	PLATE	-
32	21H1174	2	SCREW	1/4" X 1"
33	AT135683	1	Retainer	(SUB FOR AT53850) WITH WIPER
34	R50719	2	SHIM	(USE WITH JOHN DEERE GRAPPLE)
35	AT53861	1	VALVE	ROTATE VALVE, (SUB AT140084) (ALSO ORDER AT160682)
35	AT140084	1	VALVE	(ALSO ORDER AT160682) ROTATE VALVE
9A	-	2	Part 9	CHECK PLUG, (SUB PT8137)
9B	-	2	Part 10	VALVE, RELIEF, ( PT8137 NO LONGER AVAILABLE) (SUB FOR AT53852) (SUB AT160684, T36012 AND U13616)

CONTROL VALVE ROTATE SECTION (MANUAL CONTROL VALVE) [03I11]
