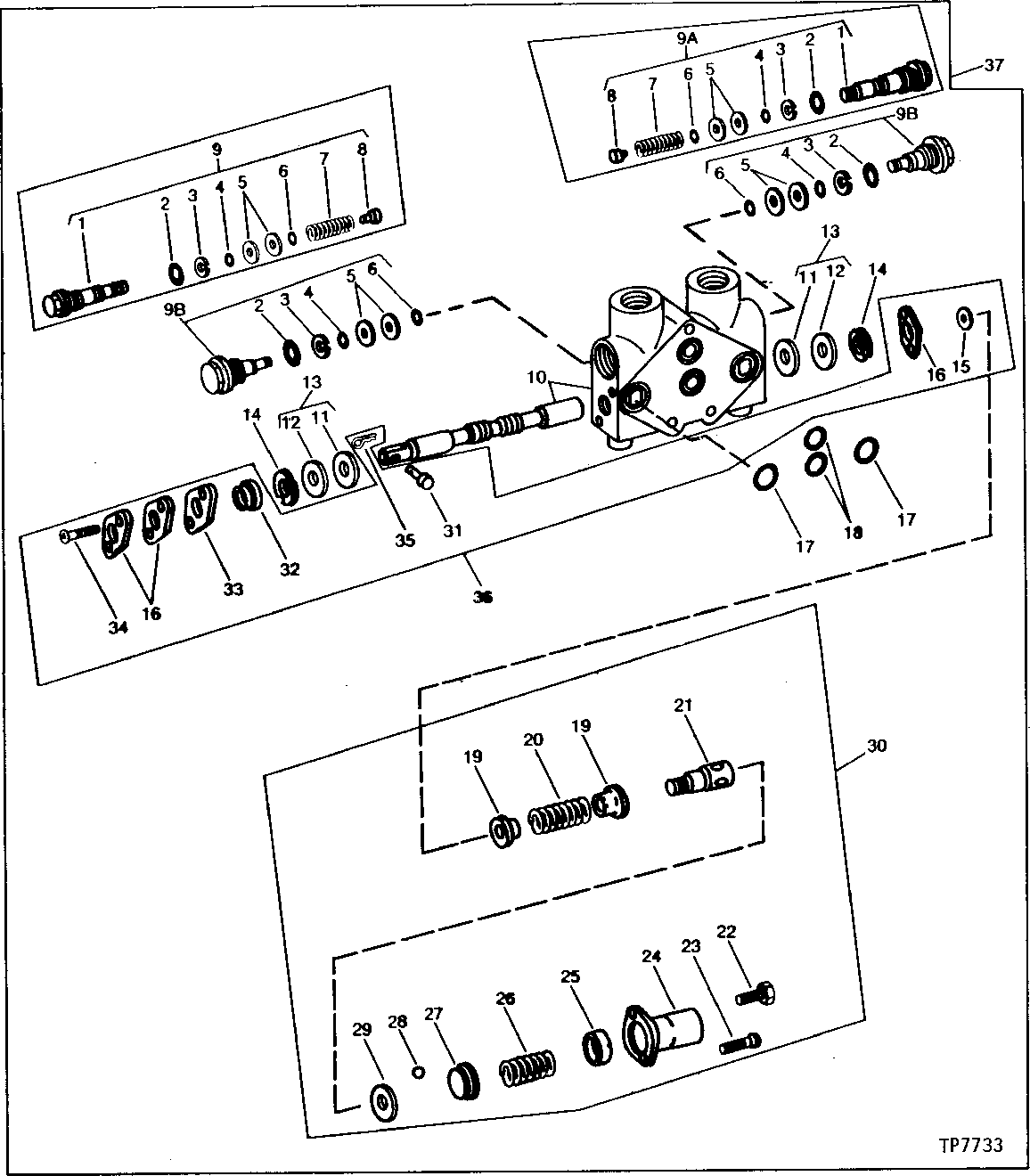

CONTROL VALVE GRAPPLE SECTION (MANUAL CONTROL VALVE) [03I13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW17093	2	Pressure Relief Valve	(K1) RELIEF POPPET, (SUB AT68646)
2	W19903	2	O-Ring	(K) (K1)
3	T35985	2	Back-Up Ring	(K) (K1)
4	Z29304	2	O-Ring	(K) (K1)
5	T35984	4	Back-Up Ring	INNER (K1)
6	H63283	2	O-Ring	(K1)
7	T36012	2	Spring	(K1)
8	U13616	1	Pressure Relief Valve	(K1)
10	-	1	Part 11	(SUB AT68645)
11	T104783	2	O-Ring	(K) (SUB FOR U11296)
12	T104785	2	Back-Up Ring	(K)
13	-	1	Part 14	SPOOL SEAL (WHEN AT53858 IS NO LONGER AVAILABLE,SUB (2) T57246 AND (2) T104785)
14	-	2	Part 15	(SUB AT135683)
15	-	1	Part 16	(SUB AT135683)
16	T104784	3	PLATE	-
17	T49819	2	O-Ring	(SUB FOR T106368) (USE WITH AT117585)
17	-	2	Part 19	(K4) (SUB AT160682) (USE WITH AT160037)
18	-	2	Part 21	(K4) (SUB AT160682) (USE WITH AT160037)
18	T142419	2	O-Ring	(SUB FOR T113021) (USE WITH AT117585)
19	-	1	Part 22	(SUB AT61350)
20	-	1	Part 23	(SUB AT61350)
21	-	1	Part 24	(SUB AT61350)
22	T11506	1	Screw	-
23	T35975	2	SCREW	(SUB T104773, THIS APPLICATION) (USE WITH T113022)
24	T113022	1	CAP	(ALSO ORDER (2) T104773)
25	AT117587	1	CAP	(SUB FOR T64555)
26	T64558	1	SPRING	-
27	T64556	1	BEARING RACE	-
28	H22694	12	BALL	(USE WITH AT68645)
28	T120233	12	BALL	(USE WITH AT117585)
29	-	1	Part 33	( T64557 NO LONGER AVAILABLE, SUB AT117586)
30	AT117586	1	RETAINER	"R" DETENT, (SUB FOR AT61350)
31	-	1	Part 35	(SUB AT135683)
32	-	1	Part 36	(K) ( T35973 AND T126105 NO LONGER AVAILABLE)
33	T113012	1	PLATE	-
34	-	2	Part 38	(SUB AT135683)
35	11M7009	1	Cotter Pin	2 X 16 MM
36	AT135683	1	Retainer	(SUB FOR AT53850) WITH WIPER
37	AT117585	1	VALVE	(SUB FOR AT68645) (SUB AT140083) (ALSO ORDER AT160682)
37	AT140083	1	VALVE	(ALSO ORDER AT160682)
37	AT61349	1	VALVE	(SUB AT117585)
9A	AT53852	2	KIT	CHECK PLUG, (SUB AT160684, T36012 AND U13616)
9B	AT68646	2	PRESSURE RELIEF VALVE	VALVE, RELIEF
