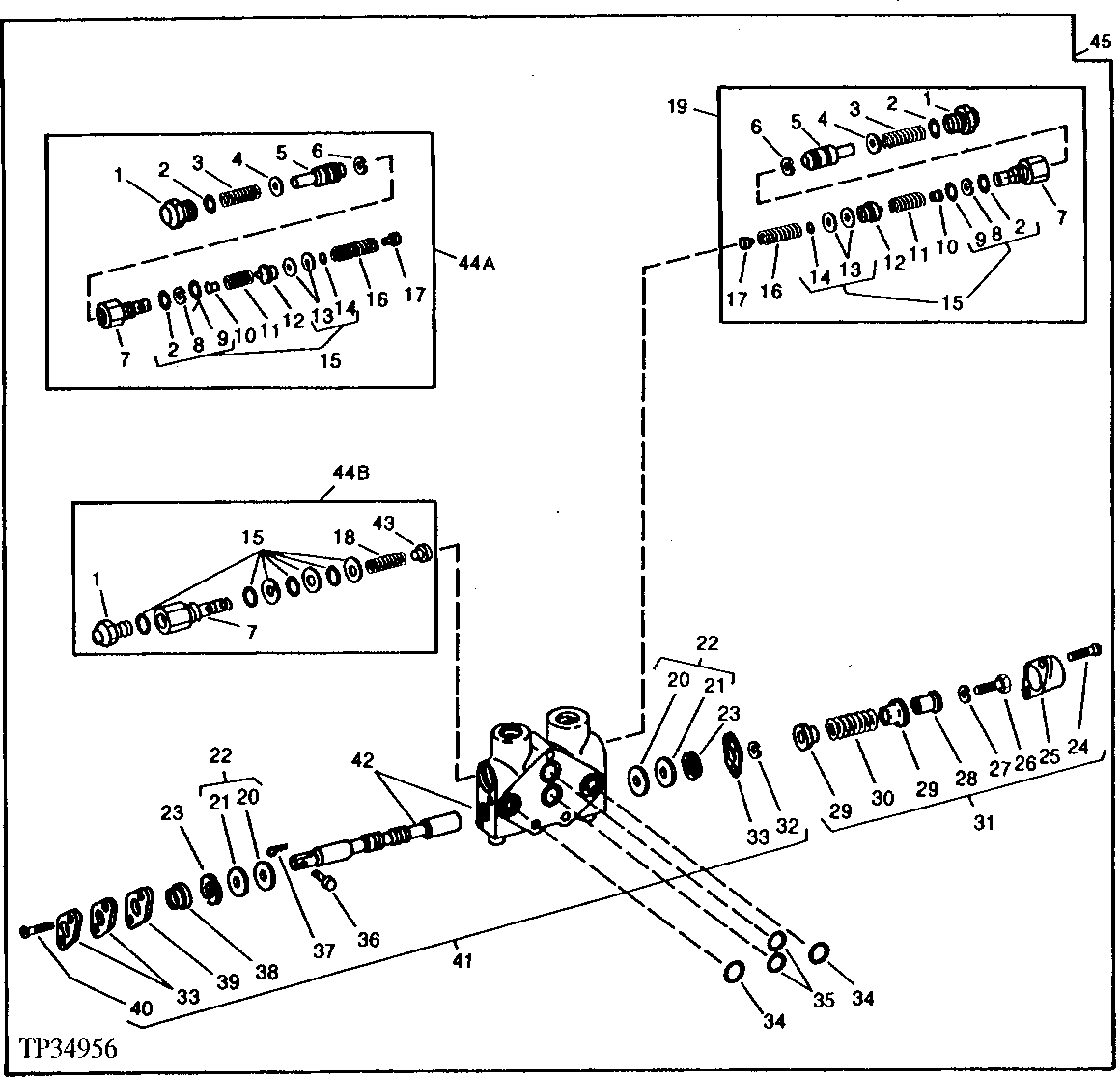

CONTROL VALVE BOOM AND ARCH SECTION (MANUAL CONTROL VALVE) [03I15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(SUB AT68646 OR AT53849)
2	W19903	4	O-Ring	(K1)
3	-	2	Part 3	(SUB AT68646 OR AT53849)
4	-	2	Part 4	(SUB AT68646 OR AT53849)
5	AW17093	2	Pressure Relief Valve	RELIEF POPPET, (SUB FOR W19901 AND W19902)
6	-	2	Part 6	(SUB AT68646 OR AT53849)
7	-	2	Part 7	(SUB AT68646 OR AT53849)
8	T35985	2	Back-Up Ring	(K1)
9	Z29304	2	O-Ring	(K1)
10	-	2	Part 10	( T58862 NO LONGER AVAILABLE)
11	-	2	Part 11	( T58863 NO LONGER AVAILABLE)
12	T58866	2	RETAINER	-
13	T35984	4	Back-Up Ring	-
14	H63283	2	O-Ring	(K1)
15	-	2	Part 15	(K1) ( PT8139 NO LONGER AVAILABLE) (SUB FOR AT53857) (SUB AT160684)
16	-	2	Part 16	( T58865 NO LONGER AVAILABLE)
17	-	2	Part 17	( T58864 NO LONGER AVAILABLE)
18	T36012	1	Spring	-
19	AT53849	1	PRESSURE RELIEF VALVE	KIT, 12 411 KPA (124 BAR) (1800 PSI) WHEN SERVICING SEALS, FURNISH AT160684 SEAL KIT
20	T104783	2	O-Ring	(K2) (SUB FOR U11296)
21	T104785	2	Back-Up Ring	(K2)
22	-	1	Part 22	(SUB FOR U11296) SPOOL SEAL (WHEN AT53858 IS NO LONGER AVAILABLE,SUB (2) T57246 AND (2) T104785)
23	-	2	Part 23	(SUB AT135683)
24	T35975	2	SCREW	(SUB T104773, THIS APPLICATION) (USE WITH T113022)
25	T113022	1	CAP	(ALSO ORDER (2) T104773)
26	21H1375	1	SCREW	5/16" X 3/4"
27	-	1	Part 27	(SUB AT53847)
28	-	1	Part 28	(SUB AT53847)
29	-	2	Part 29	(SUB AT53847)
30	-	1	Part 30	(SUB AT53847)
31	AT53847	1	STOP	-
32	-	1	Part 32	(SUB AT135683)
33	T104784	3	PLATE	-
34	T49819	2	O-Ring	(SUB FOR T106368) (USE WITH AT53860)
34	-	2	Part 35	(K) (SUB AT160682)
35	T142419	2	O-Ring	(SUB FOR T113021) (USE WITH AT53860)
35	-	2	Part 37	(K) (KI) (SUB AT160682)
36	-	1	Part 38	(SUB AT135683)
37	11M7009	1	Cotter Pin	2 X 16 MM
38	-	1	Part 40	(K2) ( T35973 AND T126105 NO LONGER AVAILABLE)
39	T113012	1	PLATE	-
40	21H1174	2	SCREW	1/4" X 1"
41	AT135683	1	Retainer	(SUB FOR AT53850)
42	-	1	Part 44	(SUB AT53860)
43	U13616	1	Pressure Relief Valve	-
45	AT53860	1	VALVE	BOOM (SUB AT140082) (ALSO ORDER (AT160682)
45	AT140082	1	VALVE	BOOM, (ALSO ORDER AT160682)
45	AT53860	1	VALVE	ARCH (USE WITH FOUR FUNCTION VALVE) (SUB AT140082) (ALSO ORDER AT160682)
45	AT140082	1	VALVE	ARCH, (USE WITH FOUR FUNCTION VALVE) (ALSO ORDER AT160682)
44A	AT53848	1	RELIEF VALVE	KIT, 17 238 KPA (172 BAR) (2500 PSI) (SUB AT68646)
44B	AT68646	1	PRESSURE RELIEF VALVE	18,617 KPA (186 BAR) (2700 PSI)
