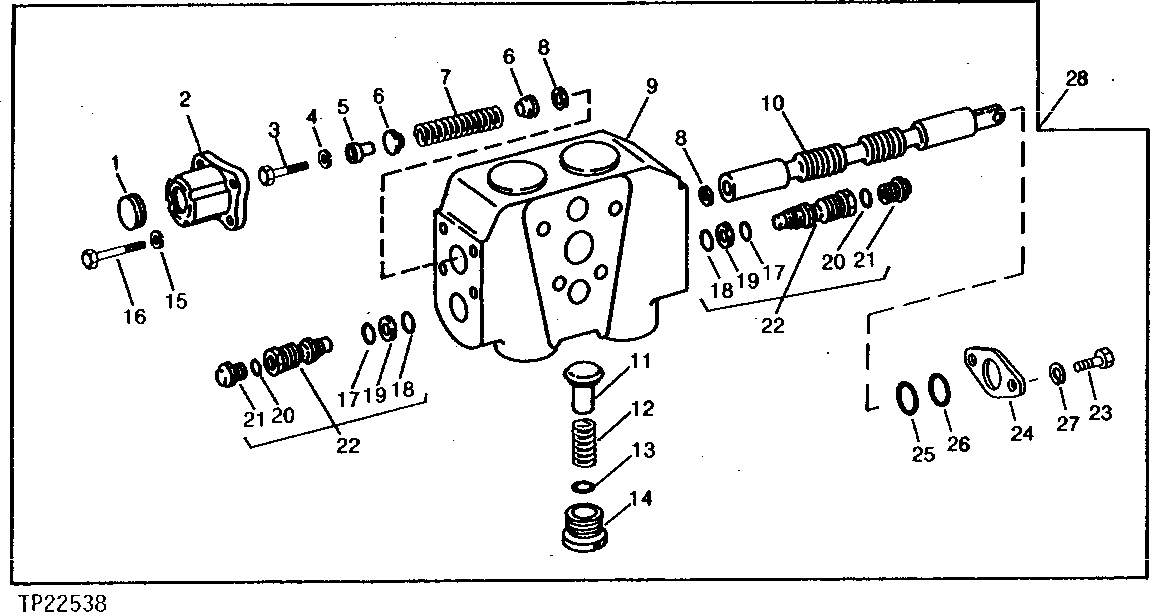

BLADE LIFT VALVE (NO FLOAT) (STACKING BLADE) (SERIAL NO. 400204- ) [03D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U17387	1	DIAPHRAGM	-
2	T75985	1	COVER	(USE WITH AT84433)
2	T118894	1	CAP	(USE WITH AT114127)
3	19H3295	1	Screw	HS, SAE 8, 3/8" X 3/4", (SUB FOR U40662)
4	U11298	1	LOCK WASHER	-
5	U17391	1	ROUND RETAINER	-
6	U17395	2	ROUND RETAINER	-
7	T34974	1	SPRING	-
8	T122063	2	O-RING	(USE WITH AT84433) (SUB FOR (2) T27593)
8	T122064	2	O-RING	(USE WITH AT114127) (SUB FOR T106371, THIS APPLICATION)
9	-	1	Part 11	(SUB AT114127)
10	-	1	Part 12	(SUB AT114127)
11	U17396	1	POPPET	-
12	U17406	1	SPRING	-
13	U17409	1	O-Ring	-
14	U17393	1	FITTING	-
15	12H302	4	Lock Washer	1/4"
16	21H1174	4	SCREW	1/4" X 1"
17	U15242	2	O-RING	-
18	T44948	2	O-Ring	(USE WITH AU14302)
18	T77072	2	O-Ring	(USE WITH AT81662)
19	T75972	2	Back-Up Ring	-
20	W19903	2	O-Ring	-
21	-	2	Part 24	(SUB AT81662)
22	AT81662	2	PRESSURE RELIEF VALVE	(SUB FOR AU14302, THIS APPLICATION)
23	19H2701	1	SCREW	1/4" X 5/8", (USE WITH AT114127)
24	T106147	1	PLATE	(USE WITH AT114127)
25	T118736	1	SEAL	(USE WITH AT114127)
26	T118737	1	THRUST WASHER	(USE WITH AT114127)
27	12H302	1	Lock Washer	1/4", (USE WITH AT114127)
28	AT68652	1	VALVE	(SUB AT114127)
28	AT114127	1	CONTROL VALVE	(SUB FOR AT84433)

BLADE LIFT VALVE (NO FLOAT) (STACKING BLADE) (SERIAL NO. 400204- ) [03D09]

Нет текстового описания
