CONTROL VALVE (WITH MECHANICAL REVERSER CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L170143	1	Case	-
2	L171774	1	Compression Spring	-
3	51M7042	1	O-Ring	13.300 X 2.200 mm
4	RE46534	1	Switch	(NEUTRAL START SWITCH)
5	R95086	2	Spool Valve	ORDER R153841
5	R153841	2	Spool Valve	-
6	L170803	2	Spring	-
7	51M7043	3	O-Ring	15.300 X 2.200 mm
8	L41384	3	Pipe Plug	-
9	L112317	1	Fitting Plug	-
10	51M7047	2	O-Ring	23.600 X 2.900 mm
11	L110013	1	Set Screw	-
12	L78975	1	Fitting Plug	ALSO ORDER 51M7045
13	51M7045	1	O-Ring	19.300 X 2.200 mm
14	R115415	2	Compression Spring	-
15	L174893	1	Spool Valve	(SUB FOR L173221) (ALSO ORD(2) R129184)
16	R27976	1	O-Ring	-
17	R34028	1	Bolt	-
18	L171695	1	Spool Valve	-
19	R76617	1	O-Ring	-
20	P51079	1	O-Ring	-
21	R112977	1	Seal	ORDER R559033
21	R559033	1	Seal	-
22	RE62620	1	Piston	-
23	L111438	1	Spring	-
24	L111439	1	Spring	-
25	L112428	1	Spring	-
26	R104728	1	O-Ring	-
27	R87455	1	Plug	-
28	40M1857	1	Snap Ring	-
29	L113298	1	Valve Spool	-
30	L110464	1	Spool Valve	-
31	R120452	1	Washer	-
32	AR103873	1	Seal	-
33	AL110691	1	Pin Fastener	-
34	L110460	1	Housing	-
35	R168663	1	Lever	-
36	RE168661	1	Leaf Spring	-
37	34M5028	1	Spring Pin	5 X 12 mm
38	L64500	1	Sealant	LOCTITE 574 (50CCM)
39	L110467	1	Cover	-
40	34M3862	2	Spring Pin	6 X 14 mm
41	19M8873	3	Screw	M6 X 90
42	19M7768	3	Screw	M6 X 16
43	R119203	1	Screw	-
44	L112584	1	Pin	-
45	51M7071	1	O-Ring	3.400 X 1.800 mm

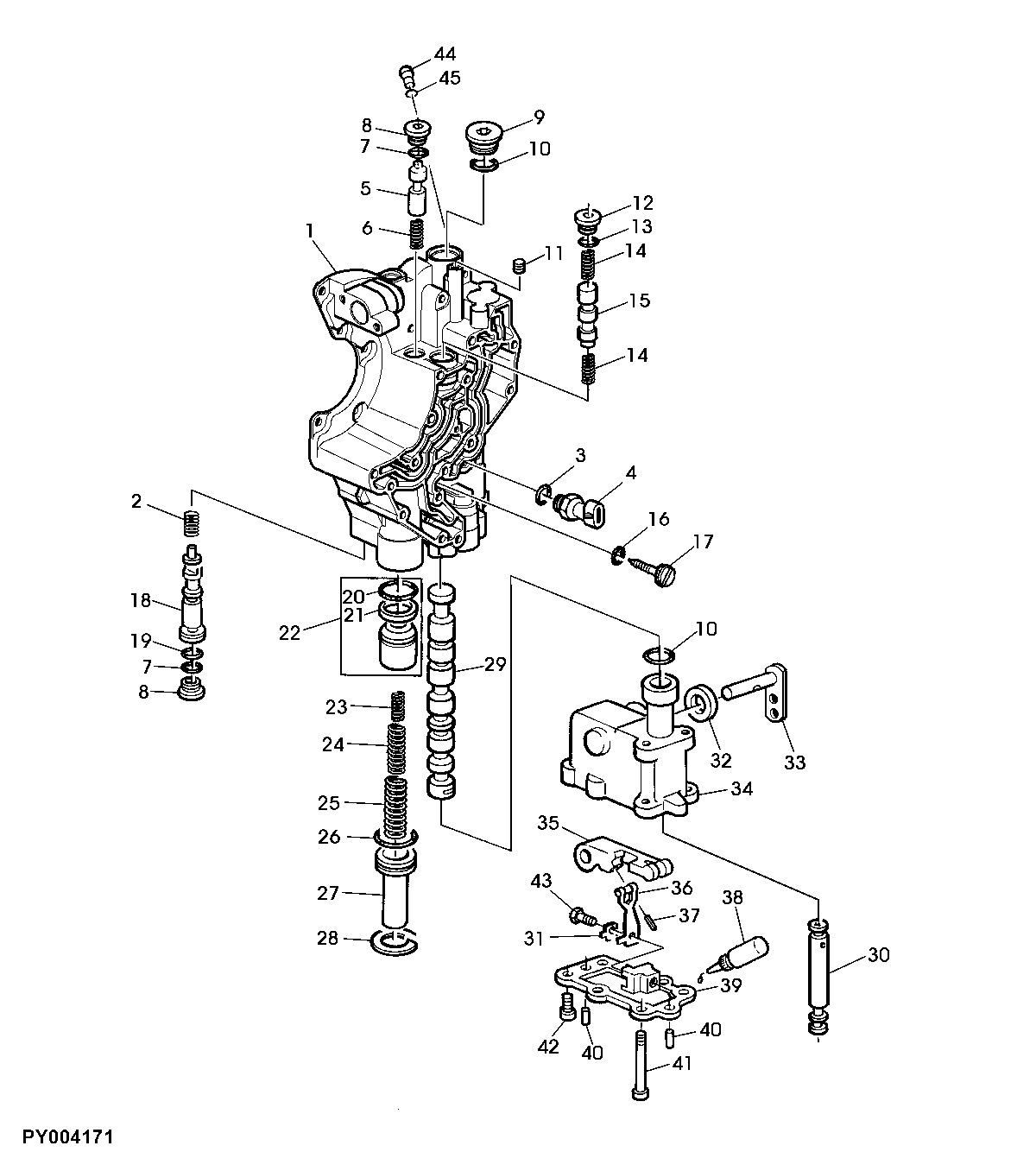

CONTROL VALVE (WITH MECHANICAL REVERSER CONTROL)

Нет текстового описания
