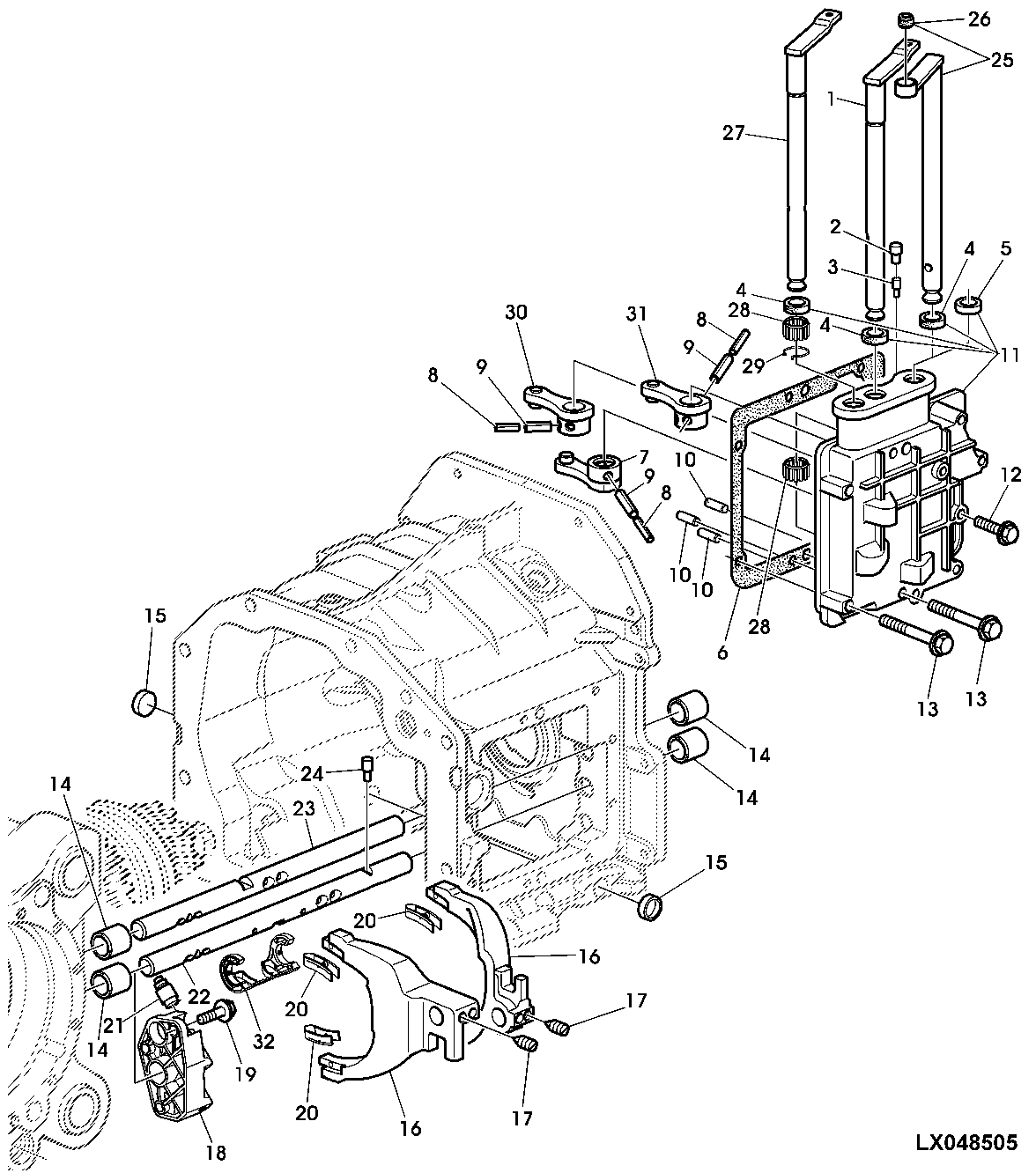

SHIFTING PARTS, RANGE TRANSM. (POWRQUAD WITH ELECTR. REVERSER CONTROL)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL81250	2	Shaft	(WITH 16-SPEED TRANSMISSION) OR (B)
2	L76229	1	Pin Fastener	-
3	L78755	1	Pin Fastener	(WITH 16-SPEED TRANSMISSION) OR (B)
4	L153307	1	Seal	-
5	30M7024	1	Plug	(WITH 16-SPEED TRANSMISSION)
6	L76234	1	Gasket	-
7	AL166649	1	Lever	(WITH 16-SPEED TRANSMISSION) (WITH 24-SPEED TRANSMISSION)
8	34M7032	1	Spring Pin	5 X 28 mm, 5X28MM
9	34M7225	1	Spring Pin	8 X 28 mm, 8X28MM
10	44M7111	1	Dowel Pin	-
11	AL172309	1	Cover	MARKED L167547
11	AL174855	1	Transmission Case	(WITH FRONT PTO) MARKED L167548
12	19M7866	1	Screw	M8 X 20, (10.9)
13	19M7800	5	Screw	M8 X 50, (10.9)
14	JD10508	4	Bearing	-
15	30M7010	1	Plug	-
16	L111048	2	Shifter	-
17	L33332	4	Set Screw	-
18	L153345	1	Housing	-
19	19M7866	3	Screw	M8 X 20, (10.9)
20	L113217	4	Clip	-
21	AL116245	2	Detent	-
22	L165942	1	Shifter Rod	(WITH 16-SPEED TRANSMISSION)
22	L165945	1	Shifter Rod	(WITH 16-SPEED TRANSMISSION) (WITH CREEPER TRANSMISSION)
22	L156695	1	Shifter Rod	(WITH 24-SPEED TRANSMISSION)
23	L156693	1	Shifter Rod	-
24	L77271	1	Pin Fastener	(WITH 24-SPEED TRANSMISSION)
25	AL154579	1	Shaft	(WITH 24-SPEED TRANSMISSION)
26	L153824	1	Isolator	(WITH 24-SPEED TRANSMISSION)
27	AL168099	1	Shaft	(WITH 16-SPEED TRANSMISSION) OR (B)
28	L167048	2	Needle Bearing	(WITH 16-SPEED TRANSMISSION) OR (B)
29	40M7330	1	Ring	(WITH 16-SPEED TRANSMISSION) OR (B)
30	AL168105	1	Lever	(WITH 16-SPEED TRANSMISSION) OR (B)
31	AL166651	1	Lever	(WITH 24-SPEED TRANSMISSION)
32	L165946	1	Clip	-

SHIFTING PARTS, RANGE TRANSM. (POWRQUAD WITH ELECTR. REVERSER CONTROL)
