Diff. Drive Shaft/Ring Gear, 4-Range Transm. (11/49 Gearing)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL164689	1	Bevel Gear Drive	Z= 11/49 MARKED L157542,L159190
2	AL152075	1	Cylindrical Roller Bearing	-
3	AL77434	2	Cylindrical Roller Bearing	-
4	L215100	1	Bearing Housing W/O Bearing	SUB FOR L156851, L151656
5	L77775	5	Compression Spring	-
6	L78073	1	Ring	TK= 2.50MM (0.098")
6	L78072	1	Ring	TK= 2.60MM (0.102"
6	L78071	1	Ring	TK= 2.70MM (0.106")
6	L78070	1	Ring	TK= 2.80MM (0.110")
6	L78069	1	Ring	TK= 2.90MM (0.114")
6	L173991	1	Snap Ring	TK= 3.00MM (0.118"), (SUB FOR 40M7268 APPL)
7	L157084	1	Shim	TK= 0.20MM (0.008"), (SUB FOR L115160)
7	L157085	1	Shim	TK= 0.30MM (0.012"), (SUB FOR L115161)
7	L157086	1	Shim	TK= 0.50MM (0.020"), (SUB FOR L115162)
8	L76923	3	Snap Ring	-
9	L168800	1	Pinion	Z= 50/16
10	L110851	1	Screw	M14
11	L113339	1	Thrust Washer	TK= 4.15MM (0.163")
11	L153635	1	Thrust Washer	TK= 4.05MM (0.159")
11	L75917	1	Thrust Washer	TK= 3.80MM (0.149")
11	L76821	1	Thrust Washer	TK= 3.65MM (0.144")
11	L76822	1	Thrust Washer	TK= 3.95MM (0.155")
12	L155888	1	Gear	Z= 63 MARKED L155888
13	AL157733	2	Synchronizer	-
14	L75904	1	Ring	TK= 2.30MM (0.090")
14	L75905	1	Snap Ring	TK= 2.20MM (0.087")
14	L75906	1	Snap Ring	TK= 2.10MM (0.083")
14	L76923	1	Snap Ring	TK= 2.00MM (0.079")
15	L155889	1	Gear	Z= 55 MARKED L155889
16	L155891	1	Gear	Z= 43 MARKED L155891
17	L155890	1	Gear	Z= 29 MARKED L155890
18	L170237	2	Ring	-
19	19M7156	4	Cap Screw	M10 X 60
20	L172927	1	Cylindrical Roller Bearing	(SUB FOR JD10494)
21	24M7332	1	Washer	8.400 X 23 X 4 mm
22	19M7162	1	Cap Screw	M8 X 16
23	L116130	4	Synchronizer	-
24	L155496	1	Gear	-
25	L166255	1	Washer	(NO LONGER REQUIRED)
26	L167749	1	Washer	-

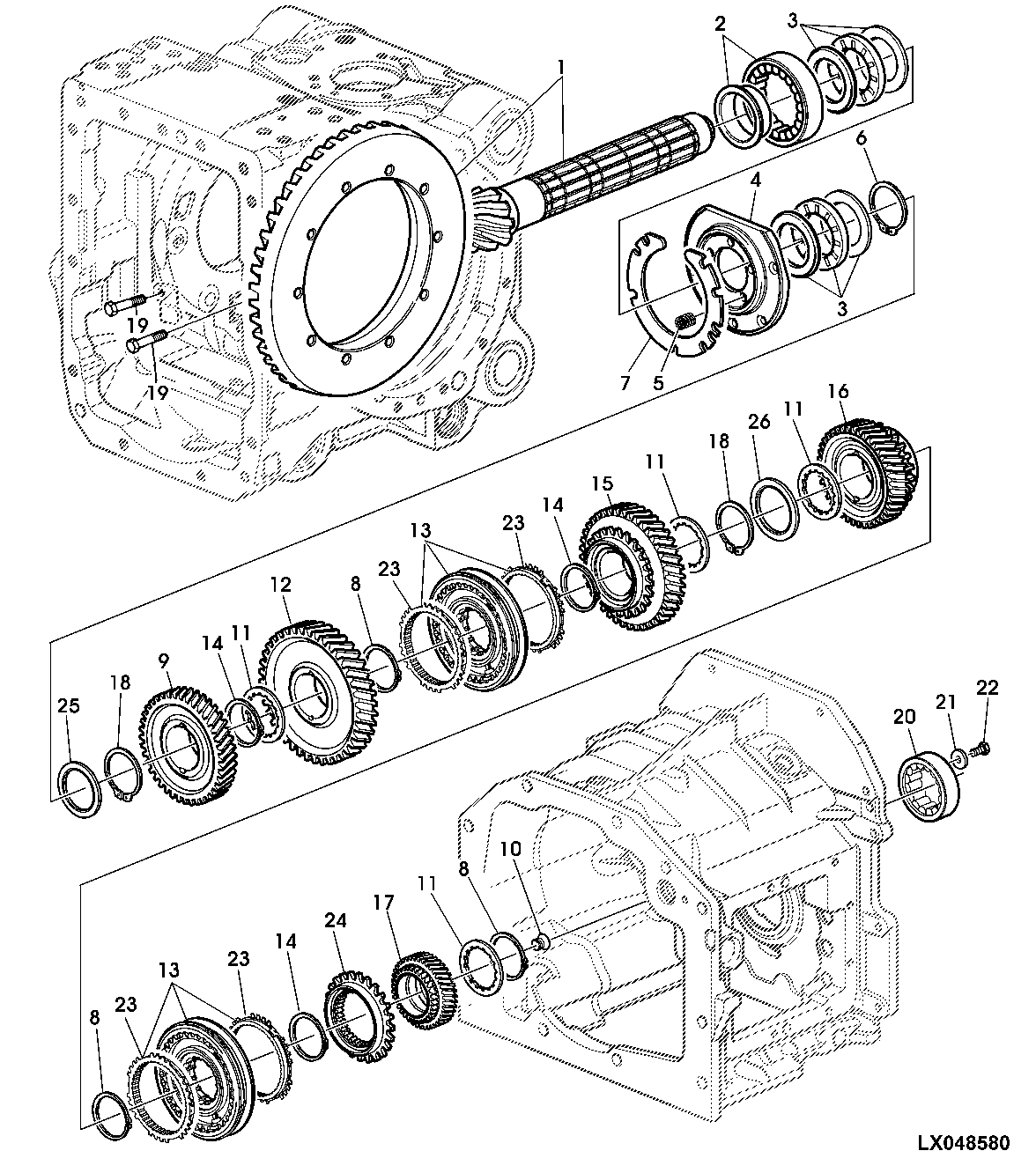

Diff. Drive Shaft/Ring Gear, 4-Range Transm. (11/49 Gearing)
