Открытый узел

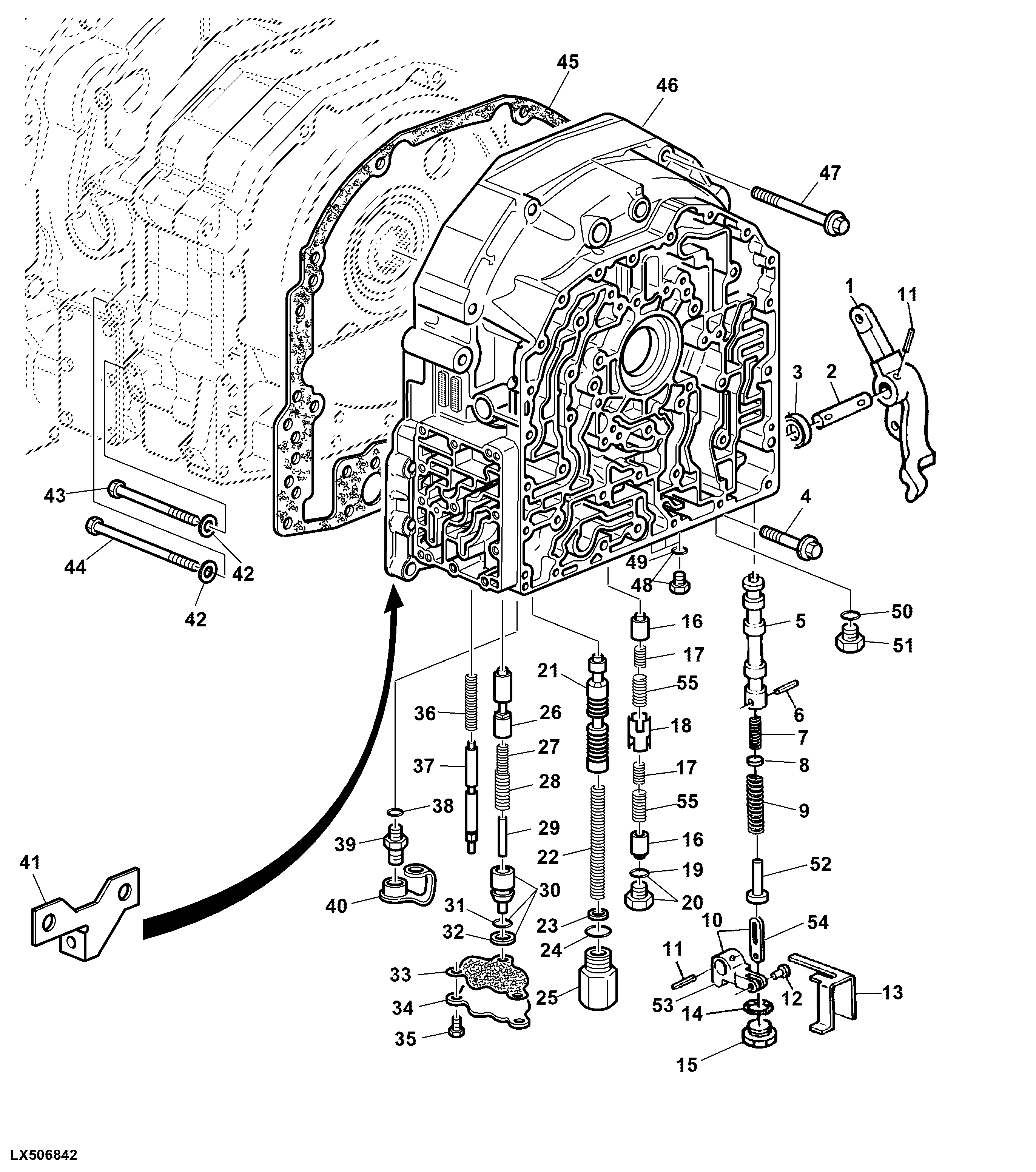

TRANSMISSION FRONT COVER (WITH MECHANICAL REVERSER CONTROL)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L154133	1	Arm	-
2	R95063	1	Pin Fastener	-
3	AR103873	1	Seal	-
4	R115141	8	Screw	-
5	R95066	1	Valve	(CLUTCH PEDAL)
6	R107252	1	Spring Pin	-
7	-	1	Part 7	NSEP (ORD RE52986)
8	R52665	2	Disk	-
9	-	1	Part 9	NSEP (ORD RE52986)
10	RE47315	1	Arm Kit	ORDER R109666, R95072
11	34M7141	2	Spring Pin	5 X 30 mm
12	R58941	1	Pin Fastener	-
13	R95073	1	Stop	FOR R181499 OR R202359
13	R213853	1	Stop	FOR R331119
14	51M7045	1	O-Ring	19.300 X 2.200 mm
15	R95065	1	Fitting	-
16	R241994	2	Spool Valve	Cooling Oil Control Valves
16	R175385	2	Spool Valve	Cooling Oil Control Valves ORDER (2) R241994, R273498, (2) R273530 AND (2) R249706 OR (2) R255005
17	R256840	2	Compression Spring	ORDER (2) R241994, R273498, (2) R273530 AND (2) R249706 OR (2) R255005
17	R273530	2	Compression Spring	-
18	R175386	1	Spool Valve	Clutch Cooling Valve ORDER (2) R241994, R273498, (2) R273530 AND (2) R249706 OR (2) R255005
18	R273498	1	Spool Valve	Clutch Cooling Valve
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	RE46685	1	Fitting Plug	-
21	R120947	1	Valve	(PRESSURE- REGULATING) Pressure Regulating Valve
22	R95544	1	Spring	-
23	R86638	4	Shim	-
24	51M7045	1	O-Ring	19.300 X 2.200 mm
25	L166446	1	Fitting Plug	SUB FOR R171409 APPL
26	R110256	1	Valve	Gear to Gear Modulator Valve ORDER R252208
26	R252208	1	Spool Valve	Gear to Gear Modulator Valve
27	R299263	1	Compression Spring	SUB FOR R95216
28	R299262	1	Compression Spring	SUB FOR R112974
29	R299264	1	Pin	SUB FOR R110257
30	R299265	1	Piston	SUB FOR R176199
31	P48347	1	O-Ring	-
32	R112976	1	Seal	ORDER R559032
32	R559032	1	Seal	-
33	R171413	1	Gasket	ORDER R341955
33	R341955	1	Gasket	-
34	R171412	1	Cover	-
35	19M7862	3	Screw	M6 X 20
36	R54174	1	Spring	-
37	R176198	1	Valve	Return Valve, Gear-to-Gear Modulation
38	51M7041	1	O-Ring	11.300 X 2.200 mm
39	AL80099	2	Hydr. Quick Coupler Plug	-
40	R77175	2	Cover	-
41	L153819	1	Holder	-
42	24M7028	2	Washer	10.500 X 20 X 2 mm
43	19M7958	1	Screw	M10 X 150
44	R104714	1	Screw	M10X185 , (10.9)
45	R202640	1	Gasket	ORDER R321236; SUB FOR R169942 OR R198523
45	R321236	1	Gasket	-
46	R202359	1	Housing	MARKED R181499 OR R202359 (ORD R331119,R213853)
46	R331119	1	Cover	SUB FOR R208927, R202359
47	R112063	5	Screw	-
48	RE46684	1	Fitting Plug	-
49	51M7041	1	O-Ring	11.300 X 2.200 mm
50	51M7042	1	O-Ring	13.300 X 2.200 mm
51	L158473	1	Plug	(ORD W/ 51M7042)
52	R121609	1	Guide	-
53	R109666	1	Arm	-
54	R95072	1	Link	-
55	R249706	2	Compression Spring	( 12 BAR)
55	R255005	2	Compression Spring	( 14 BAR)

TRANSMISSION FRONT COVER (WITH MECHANICAL REVERSER CONTROL)

Нет текстового описания
