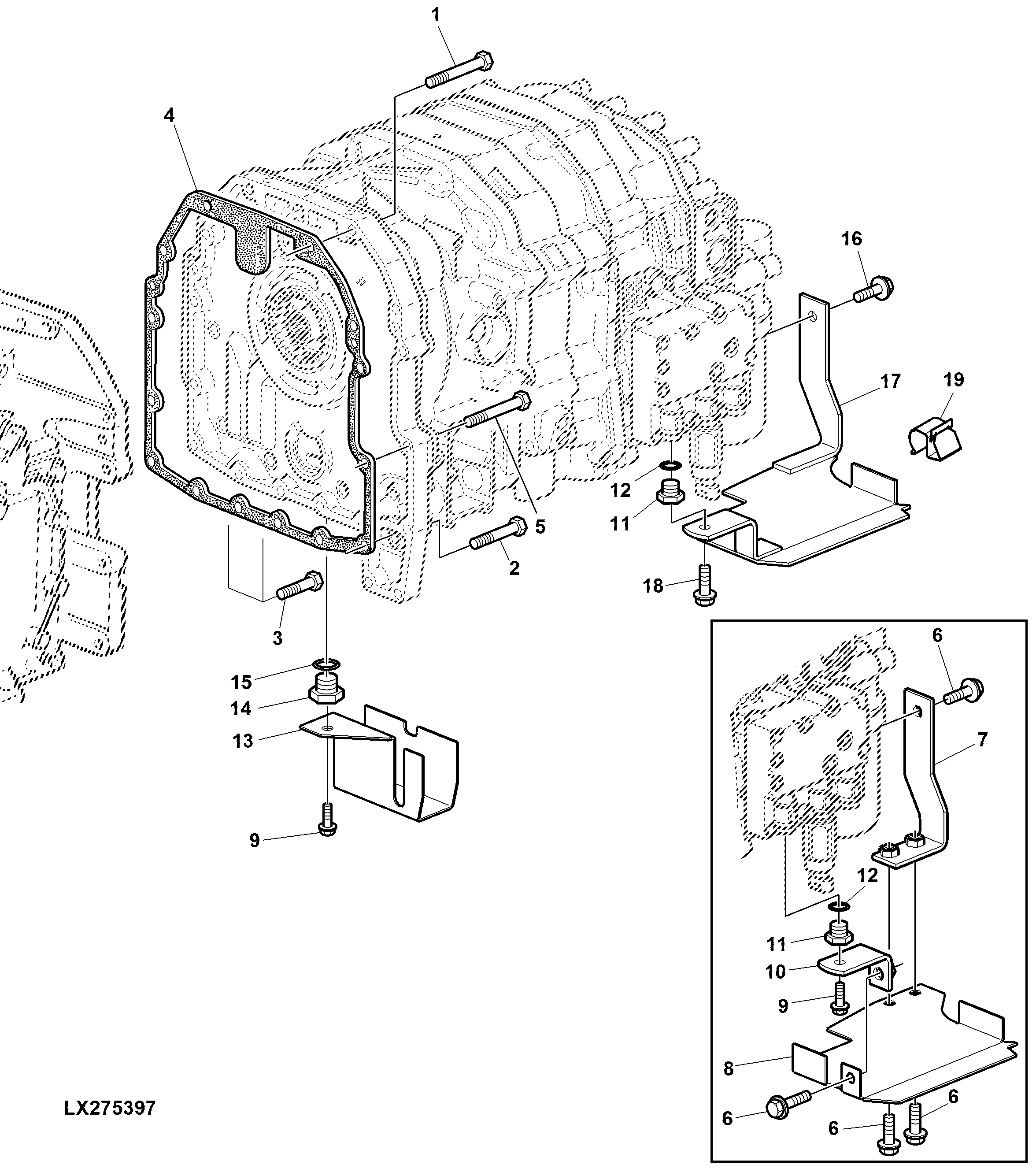

MOUNTING PARTS / PROTECTION ELECTROMAGNETIC SHIFT EPQT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8528	6	Screw	M10 X 55, (10.9)
2	19M8162	4	Screw	M10 X 40, (10.9)
3	19M7785	2	Screw	M10 X 25, (10.9)
4	L152507	1	Gasket	-
5	19M8528	2	Screw	(WITH ELEKTR. REVERSER CONTROL) M10 X 55, (10.9)
5	19M7807	2	Screw	(WITH MECHANICAL REVERSER CONTROL) M10 X 60, (10.9)
6	19M7865	4	Screw	(WITH ELEKTR. REVERSER CONTROL) M8 X 16, (10.9)
7	AL162841	1	Holder	(WITH ELEKTR. REVERSER CONTROL) (ORD AL166149)
8	L158362	1	Holder	(WITH ELEKTR. REVERSER CONTROL) (ORD AL166149)
9	19M7864	2	Screw	(WITH ELEKTR. REVERSER CONTROL) M8 X 12, (10.9)
9	19M7864	1	Screw	(WITH ELEKTR. REVERSER CONTROL) M8 X 12, (10.9)
10	AL162840	1	Shield	(WITH ELEKTR. REVERSER CONTROL) (ORD AL166149)
11	L158343	1	Fitting	(WITH ELEKTR. REVERSER CONTROL)
12	51M7041	1	O-Ring	(WITH ELEKTR. REVERSER CONTROL) 11.300 X 2.200 mm
13	L219906	1	Shield	(WITH ELEKTR. REVERSER CONTROL) (SUB FOR L158361,L167329 AND L168693)
14	L158342	1	Fitting	(WITH ELEKTR. REVERSER CONTROL)
15	51M7045	1	O-Ring	(WITH ELEKTR. REVERSER CONTROL) 19.300 X 2.200 mm
16	19M7162	1	Cap Screw	(WITH ELEKTR. REVERSER CONTROL) M8 X 16
17	AL166149	1	Shield	(WITH ELEKTR. REVERSER CONTROL)
17	AL223818	1	Shield	(WITH ELEKTR. REVERSER CONTROL) SUB FOR AL169164
18	19M7297	1	Cap Screw	(WITH ELEKTR. REVERSER CONTROL) M8 X 12
19	L110765	1	Clamp	-
..	AL163214	1	Field Installation Kit	(WITH ELEKTR. REVERSER CONTROL) NLA, FI,INCL. KEYS 9,11-18

MOUNTING PARTS / PROTECTION ELECTROMAGNETIC SHIFT EPQT
