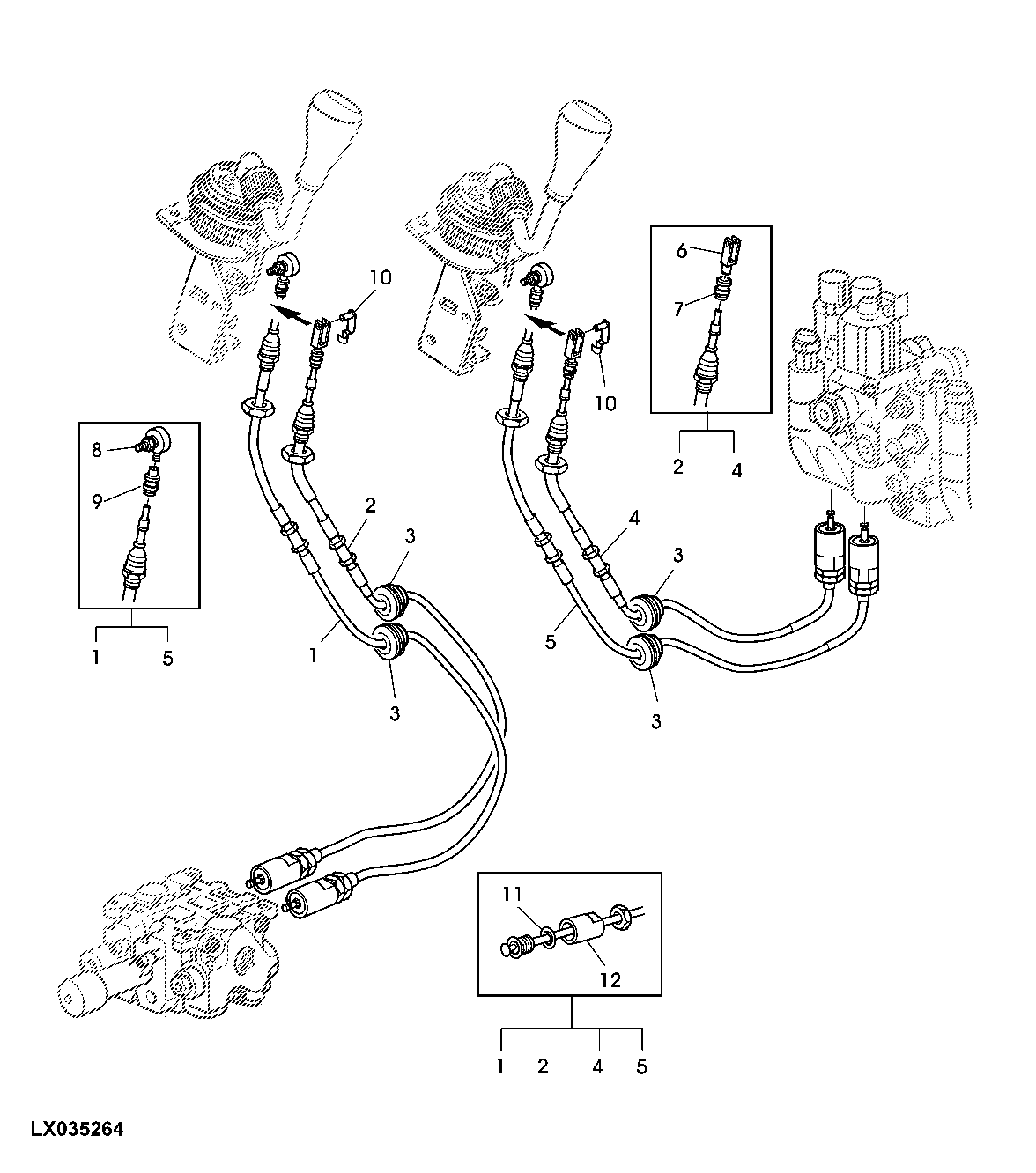

BOWDEN CABLES FOR SWING-AWAY MULTIFUNCTION LEVER (CONSOLE INTEGRATED, NOT FOR ORCHARD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL164905	1	Push Pull Cable	(WITH INDEPENDENT CONTROL VALVE R.H. / CENTER) (WITH CAB) M-ICV (SUB FOR AL119470)
1	AL169367	1	Push Pull Cable	(WITH INDEPENDENT CONTROL VALVE R.H. / CENTER) (WITH OPEN OPERATOR'S STATION) M-ICV (SUB FOR AL119461)
2	AL164906	1	Push Pull Cable	(WITH INDEPENDENT CONTROL VALVE R.H. / CENTER) (WITH CAB) M-ICV (ORD W/ AL79051) (SUB FOR AL119471)
2	AL169368	1	Push Pull Cable	(WITH INDEPENDENT CONTROL VALVE R.H. / CENTER) (WITH OPEN OPERATOR'S STATION) M-ICV (ORD W/ AL79051) (SUB FOR AL119462)
3	L100781	2	Grommet	-
4	AL164815	1	Push Pull Cable	(ORD W/ AL79051) SCV (SUB FOR AL119466)
5	AL164814	1	Push Pull Cable	SCV (SUB FOR AL119465)
6	L80052	1	Yoke	-
7	L116324	1	Bushing	-
8	AL81421	1	Link End	-
9	L116325	1	Bushing	-
10	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
11	L41536	1	O-Ring	-
12	L110343	1	Tube Nut	ORDER L158944
12	L158944	1	Tube Nut	-

BOWDEN CABLES FOR SWING-AWAY MULTIFUNCTION LEVER (CONSOLE INTEGRATED, NOT FOR ORCHARD)
