Открытый узел

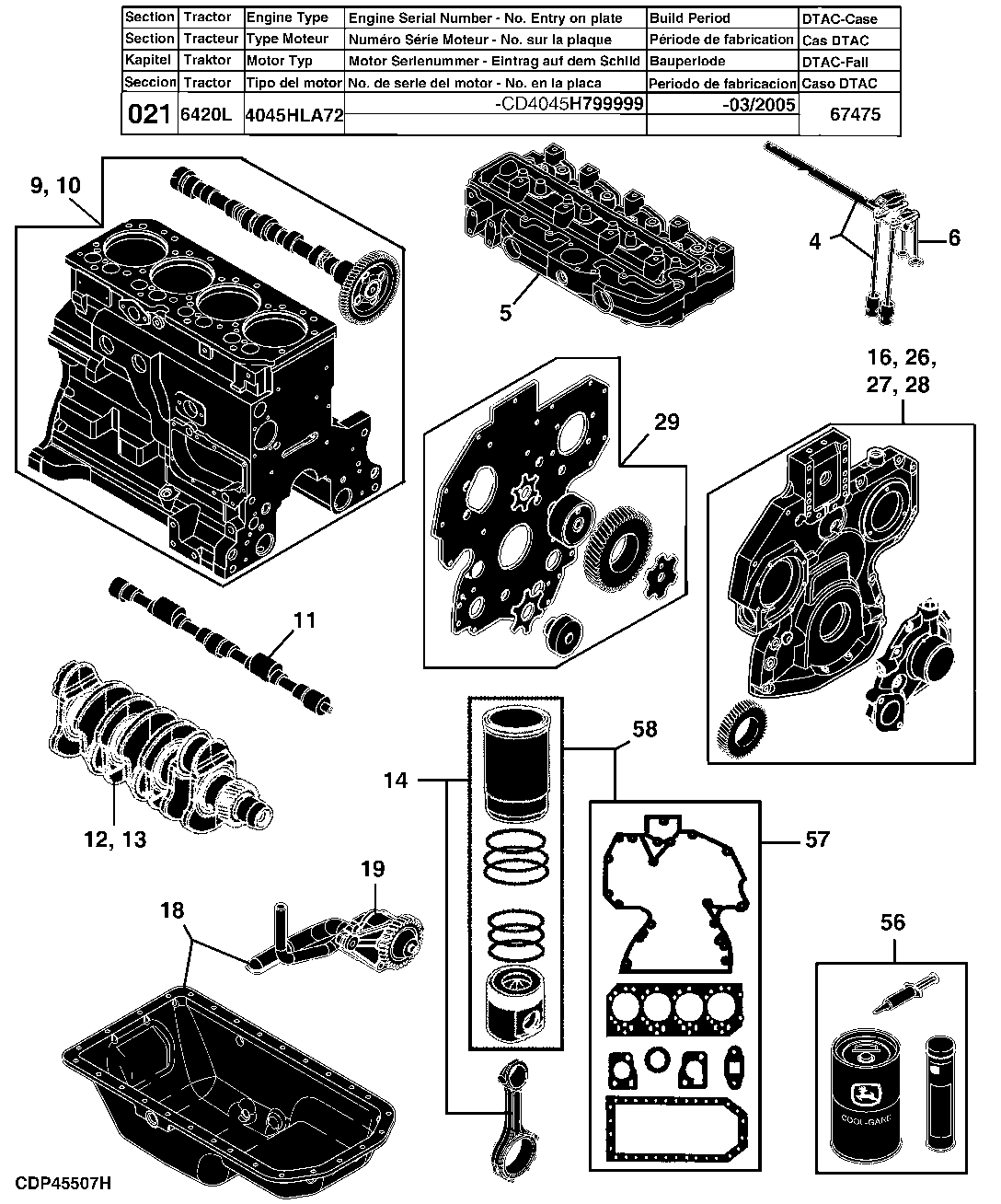

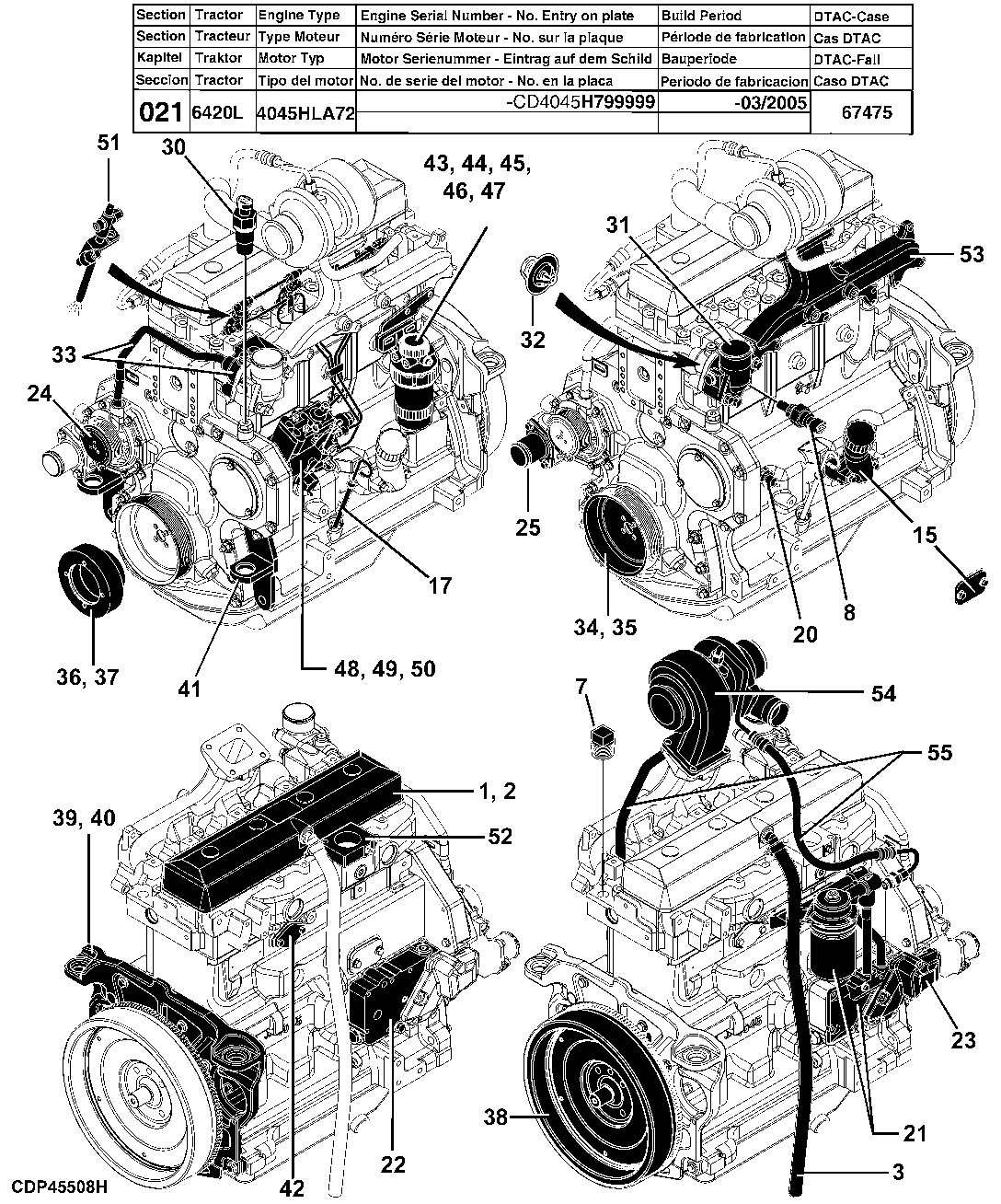

21 ENGINE, 6420L (4045HLA72)

21 ENGINE, 6420L (4045HLA72)

21 ENGINE, 6420L (4045HLA72)

21 ENGINE, 6420L (4045HLA72)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

21 ENGINE, 6420L (4045HLA72)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	THERMOSTAT	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	KIT, PRIMARY FUEL FILTER ( ACCESSORY )	-
-	-	1	LIQUID GASKET, GREASE FOR CAMSHAFT BUSHING, COOLANT	-
-	-	1	OIL COOLER	-
-	-	1	OIL FILLER NECK (LEFT HAND SIDE)	-
-	-	1	OIL FILTER, ADAPTER, OIL LINES	-
-	-	1	OIL PAN	-
-	-	1	OIL PUMP	-
-	-	1	PLUG, WITHOUT WATER TEMPERATURE SENSOR	-
-	-	1	PULLEY ADAPTER FRONT PTO FOR CRANKSHAFT WITH TAPER NOSE	-
-	-	1	ROCKER ARM / SHAFT / TAPPET / PUSH ROD	-
-	-	1	SET OF FUEL INJECTION LINES	-
-	-	1	SHORT BLOCK ASSEMBLY	-
-	-	1	SWITCH AND SENSOR, OIL PRESSURE	-
-	-	1	INTERMEDIATE HOUSING (OIL COOLER / WATER PUMP)	-
-	-	1	THERMOSTAT COVER	-
-	-	1	THERMOSTAT HOUSING / BY PASS TUBE TO WATER PUMP	-
-	-	1	TIMING GEAR COVER, WATER PUMP (ALUMINIUM, W/O INSERT), LOWER IDLE GEAR	-
-	-	1	TIMING GEAR COVER, WATER PUMP (ALUMINIUM, W/O INSERT), LOWER IDLE GEAR	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	TIMING GEAR COVER, WATER PUMP (CAST IRON, WITH INSERT), LOWER IDLE GEAR	-
-	-	1	Turbocharger	-
-	-	1	TURBOCHARGER OIL LINES	-
-	-	1	VALVE / VALVE SEAT / SPRING / ROTATOR	-
-	-	1	VALVE COVER	-
-	-	1	VALVE COVER (CONVERSION PARTS)	-
-	-	1	WATER PUMP INTAKE	-
-	-	1	WATER PUMP PULLEY	-
-	-	1	WATER TEMPERATURE SENSOR	-
-	-	1	ENGINE GASKET SET	-
-	-	1	ADAPTER FRONT PTO FOR CRANKSHAFT WITH STRAIGHT NOSE	-
-	-	1	AIR HEATER	-
-	-	1	BALANCER SHAFT	-
-	-	1	BREATHER	-
-	-	1	CONNECTING ROD AND PISTON-CYLINDER LINER KIT	-
-	-	1	COVER, WITHOUT FUEL PUMP	-
-	-	1	CRANKSHAFT PULLEY FOR CRANKSHAFT WITH STRAIGHT NOS	-
-	-	1	CRANKSHAFT PULLEY FOR CRANKSHAFT WITH TAPER NOSE	-
-	-	1	CRANKSHAFT WITH STRAIGHT NOSE / BEARINGS	-
-	-	1	CRANKSHAFT WITH TAPER NOSE / BEARINGS	-
-	-	1	CYLINDER BLOCK	-
-	-	1	CYLINDER HEAD	-
-	-	1	DIPSTICK / GUIDE (LEFT HAND SIDE)	-
-	-	1	ENGINE FRONT BRACKETS	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	ENGINE OVERHAUL KIT	-
-	-	1	ENGINE SPEED SENSOR	-
-	-	1	EXHAUST MANIFOLD	-
-	-	1	FINAL FUEL FILTER	-
-	-	1	FINAL FUEL FILTER / FUEL PRESSURE SENSOR	-
-	-	1	FLYWHEEL	-
-	-	1	FLYWHEEL HOUSING - EARLY DESIGN	-
-	-	1	FLYWHEEL HOUSING - LATE DESIGN (CONVERSION PARTS)	-
-	-	1	FRONT PLATE AND UPPER IDLE GEAR	-
-	-	1	FUEL FILTER / FUEL HEATER ( ACCESSORY )	-
-	-	1	FUEL INJECTION PUMP (WITH ELECTRONICALLY CONTROLLED FUEL INJECTION SYSTEM)	-
-	-	1	FUEL LINES / FUEL FILTER-FUEL INJECTION PUMP	-
-	-	1	INJECTION NOZZLE	-
