MFWD-AXLE, AS2035, WITH OR WITHOUT TLS, MULTIPLE DISK SELF-LOCK. DIFFERENTIAL

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L100138	1	Washer	TK= 1.05MM
1	L61275	1	Washer	TK= 2.10MM
1	L61274	1	Washer	TK= 2.05MM
1	L61273	1	Washer	TK= 2.00MM
1	L61271	1	Washer	TK= 1.90MM
1	L61272	1	Washer	TK= 1.95MM
1	L61270	1	Washer	TK= 1.85MM
1	L61269	1	Washer	TK= 1.80MM
1	L61268	1	Washer	TK= 1.75MM
1	L61267	1	Washer	TK= 1.70MM
1	L61266	1	Washer	TK= 1.65MM
1	L61265	1	Washer	TK= 1.60MM
1	L61263	1	Washer	TK= 1.50MM
1	L100147	1	Washer	TK= 1.45MM
1	L100146	1	Washer	TK= 1.40MM
1	L100145	1	Washer	TK= 1.35MM
1	L100144	1	Washer	TK= 1.30MM
1	L100143	1	Washer	TK= 1.25MM
1	L100142	1	Washer	TK= 1.20MM
1	L100141	1	Washer	TK= 1.15MM
1	L100140	1	Washer	TK= 1.10MM
1	L100137	1	Washer	TK= 1.00MM
1	L61264	1	Washer	TK= 1.55MM
2	AL79808	2	Bearing	-
3	34M7224	4	Spring Pin	8 X 26 mm
4	L100158	4	Spring Pin	-
5	19M8533	12	Screw	M10 X 25, (10.9)
6	L100150	1	Disk With Outer Spline	TK= 1.0MM
6	L100151	1	Disk With Outer Spline	TK= 1.1MM
6	L100152	1	Disk With Outer Spline	TK= 1.2MM
7	L100153	8	Disk With Inner Spline	-
8	L100154	2	Thrust Washer	-
9	L110234	2	Gear	-
10	T116851	2	Bevel Gear	-
11	L60103	2	Thrust Washer	-
12	L112197	1	Housing	(ORD W/ 34M5723)
13	L60104	1	Pin Fastener	-
14	34M5723	1	Spring Pin	5 X 55 mm

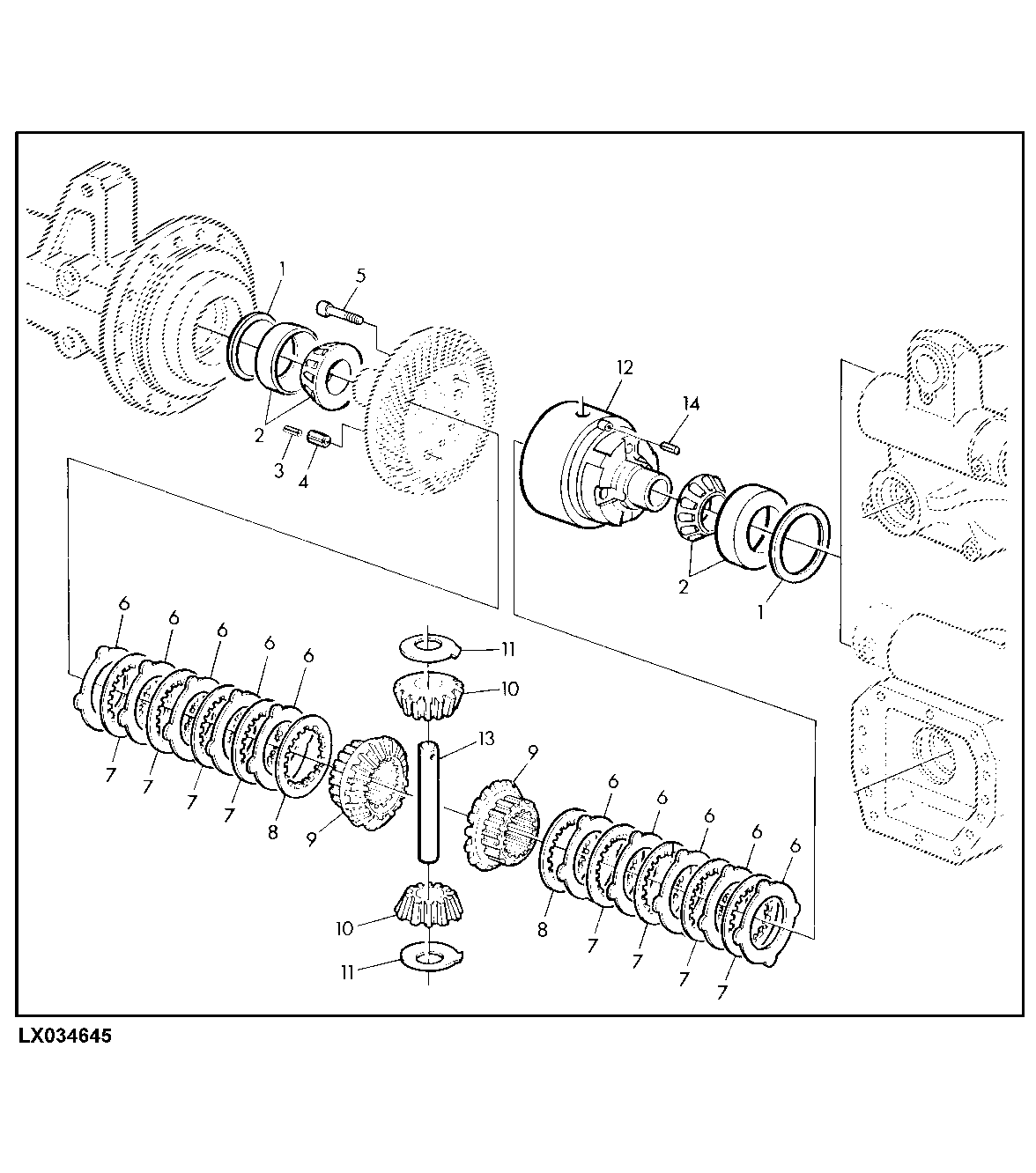

MFWD-AXLE, AS2035, WITH OR WITHOUT TLS, MULTIPLE DISK SELF-LOCK. DIFFERENTIAL

Нет текстового описания
