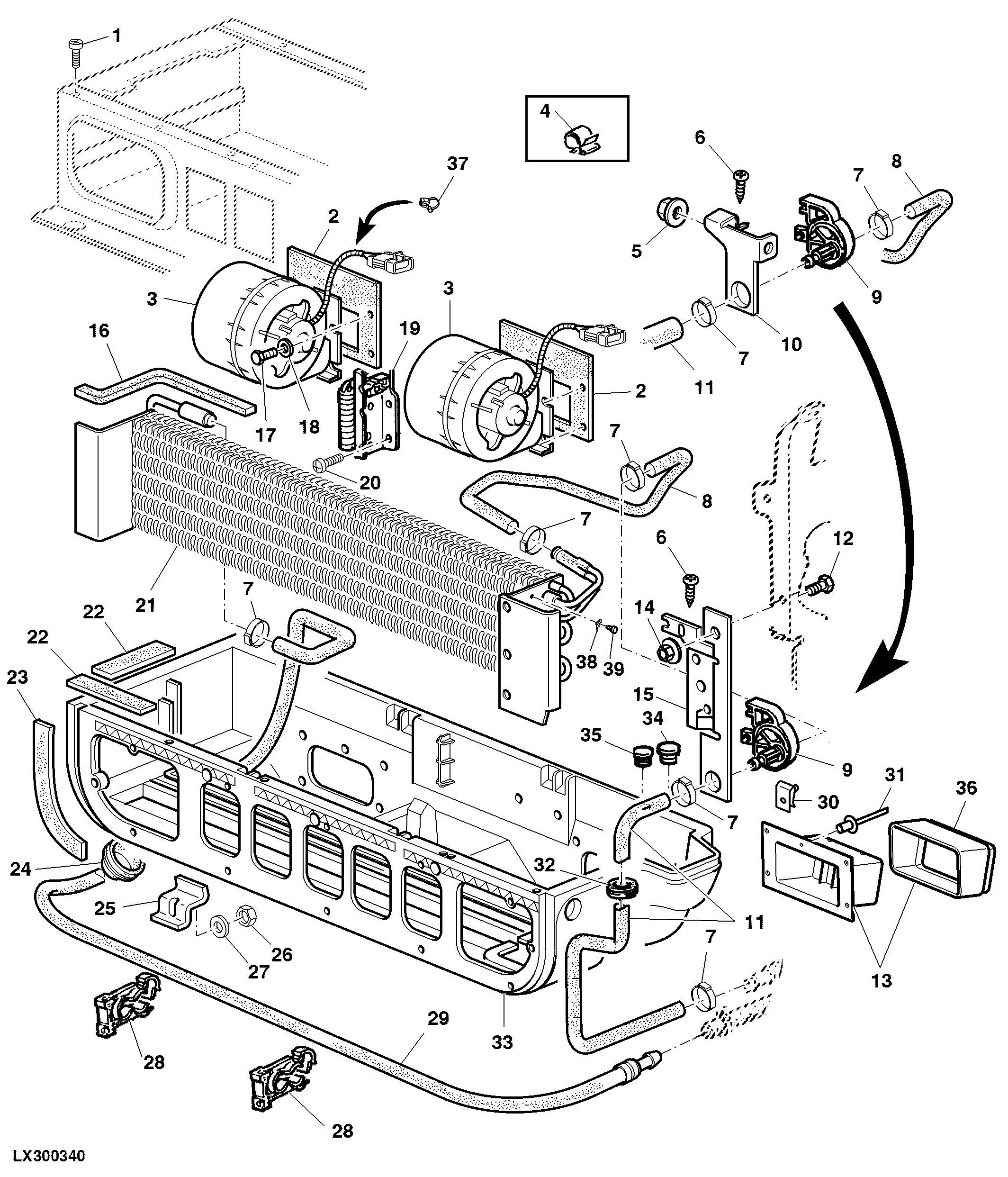

HEATING AND BLOWER (WITHOUT AIR CONDITIONING)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L80023	17	Screw	-
2	L79884	2	Gasket	-
3	AL215704	2	Blower	SUB FOR AL214942, AL110881
4	L100406	1	Clamp	-
5	14M7166	3	Lock Nut	M8
6	37M7284	2	Screw	-
7	L207664	7	Hose Clamp	SUB FOR L205098, AL80154 APPL
8	L158673	1	Hose	SUB FOR L113740
9	AL75973	1	Thermostatic Control Valve	ORDER AL222640
9	AL222640	1	Thermostatic Control Valve	-
10	L151962	1	Bracket	-
11	L102598	1	Hose	-
12	19M7162	1	Cap Screw	M8 X 16
13	AL157452	2	Air Duct	SUB FOR L79005
14	14M7416	1	Flange Nut	M8
15	L102597	1	Bracket	-
16	L76254	1	Pad	-
17	19M7286	8	Cap Screw	M6 X 25
18	24M7139	8	Washer	6.400 X 18 X 1.600 mm
19	AL152449	1	Resistor Network	ORDER AL224589
19	AL224589	1	Resistor Network	-
20	37M7266	2	Screw	-
21	AL229016	1	Radiator	MARKED AL229016; SUB FOR AL206301
21	AL163865	1	Radiator	SUB FOR AL115335, AL160352; ORDER AL229016
22	L59796	1	Weatherstrip	UP
23	L59748	1	Pad	LGTH = 30000 mm, SUB FOR L152254
24	L112548	1	Grommet	-
25	L155541	2	Bracket	-
26	14M7166	2	Lock Nut	M8
27	24M7298	2	Washer	8.400 X 25 X 2 mm
28	L112280	2	Clamp	-
29	AL116188	1	Hose	-
30	L102357	8	Nut	-
31	L78561	2	Rivet	-
32	L218263	1	Grommet	SUB FOR L79919 APPL
33	AL116502	1	Case	SUB FOR AL116502
34	99M7049	1	Plug	31 mm (1-7/32")
35	L76792	1	Plug	24 mm (15/16")
36	L155292	2	Insulator	-
37	L206645	2	Tie Band	-
38	57M7116	1	Elec. Connector Terminal	-
39	37M7042	1	Screw	-

HEATING AND BLOWER (WITHOUT AIR CONDITIONING)
