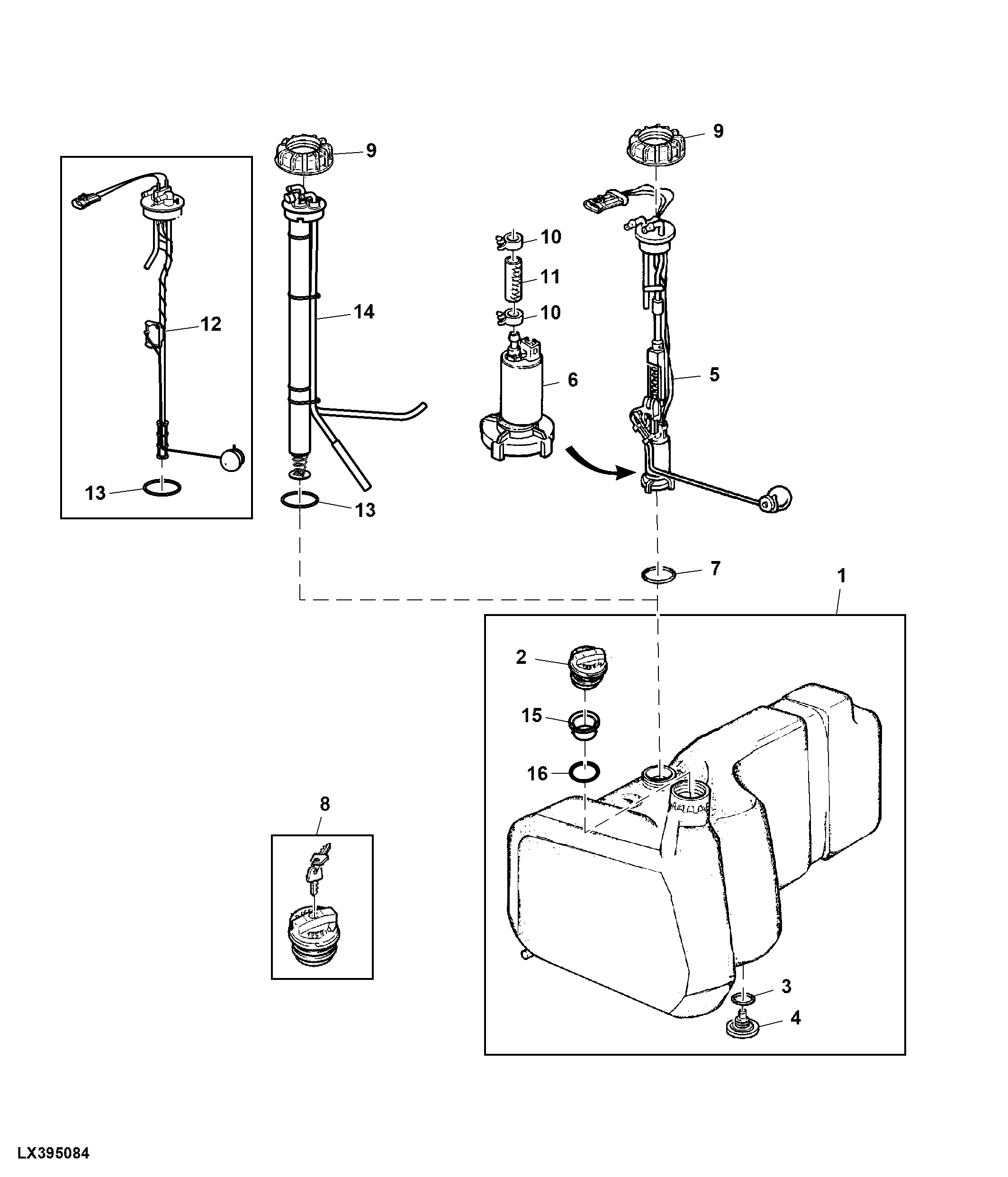

FUEL TANK, 43.5 GALLON (OPEN OPERATOR'S STATION / STANDARD VERSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL166613	1	Fuel Tank	(NOT WITH ENGINE STAGE II ACC.97/68/EC) MARKED AL166613; ALSO ORDER L112437; SUB FOR AL156535
1	AL166613	1	Fuel Tank	(WITH ENGINE STAGE II ACC. 97/68/EC) MARKED AL166613; ALSO ORDER R217636; SUB FOR AL156535
2	AL113086	1	Filler Cap	-
3	L158411	1	O-Ring	(SUB FOR L112430)
4	L114700	1	Drain Plug	-
5	AL113125	1	Fuel Sender	(NOT WITH ENGINE STAGE II ACC.97/68/EC) (ORD W/ L112437)
6	AL226603	1	Fuel Pump	(NOT WITH ENGINE STAGE II ACC.97/68/EC) SUB FOR AL78405
7	L112437	1	O-Ring	(NOT WITH ENGINE STAGE II ACC.97/68/EC)
8	AL113087	1	Filler Cap	-
9	L112436	1	Tube Nut	-
10	L116575	2	Clamp	(NOT WITH ENGINE STAGE II ACC.97/68/EC)
11	L116314	1	Hose	(NOT WITH ENGINE STAGE II ACC.97/68/EC)
12	AL157608	1	Fuel Sender	(WITH ENGINE STAGE II ACC. 97/68/EC) (ORD AL161024, R217636, AL161566) (SUB FOR AL155665)
13	R217636	1	O-Ring	(WITH ENGINE STAGE II ACC. 97/68/EC)
14	AL161024	1	Fuel Sender	(WITH ENGINE STAGE II ACC. 97/68/EC)
15	L80418	1	Insert	-
16	L112337	1	Sealing Washer	-

FUEL TANK, 43.5 GALLON (OPEN OPERATOR'S STATION / STANDARD VERSION)
