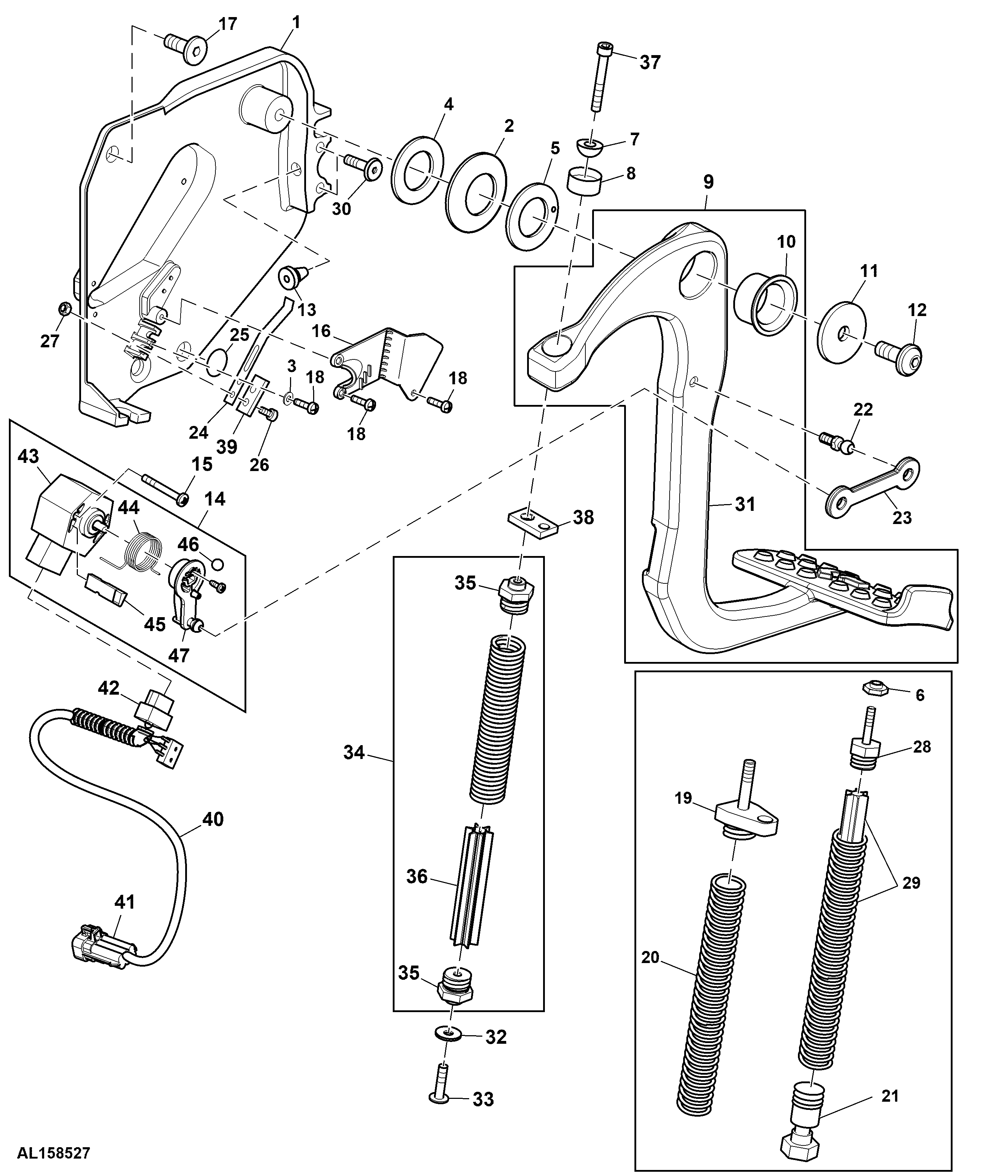

CLUTCH ACTUATING COMPONENTS, CLUTCH PEDAL (ELECTRICAL)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153777	1	Bracket	-
2	12M7127	1	Disk Spring	25.400 X 50 X 1.250 mm
3	24M7029	1	Shim	-
4	L115989	1	Washer	-
5	L115028	1	Washer	-
6	14M7165	1	Lock Nut	M6
7	L115469	1	Ball	-
8	L156543	1	Ball Joint Socket	(SUB FOR L150078)
9	AL150176	1	Pedal	-
10	L158966	1	Bushing	(SUB FOR L150082)
11	L150084	1	Washer	-
12	L150023	1	Screw	-
13	L150079	1	Bumper	-
14	AL158070	1	Potentiometer	-
15	21M7474	2	Screw	M4 X 32
16	L150085	1	Shield	-
17	L100285	3	Screw	M10 X 20, (10.9)
18	37M7307	4	Screw	M3 X 8
19	L150647	1	Adapter Fitting	ORDER AL168880, L167166, 19M7760, 19M8875 AND 24M7139
20	L153687	1	Extension Spring	ORDER AL168880, 19M7760, 19M8875 AND 24M7139
21	L150087	1	Adapter Fitting	SUB FOR L157051
22	55M7013	1	Ball Stud	-
23	L156822	1	Ball Joint	(SUB FOR AL158071, AL158528)
24	L153355	1	Leaf Spring	-
25	L154103	1	Cover	-
26	21M7252	2	Screw	M4 X 16
27	14M7139	2	Nut	M4
28	L150080	1	Adapter Fitting	ORDER AL168880, 19M7760, 19M8875 AND 24M7139; SUB FOR L157718
29	AL158509	1	Spring	ORDER AL168880, 19M7760, 19M8875 AND 24M7139; SUB FOR AL158155
30	19M9164	2	Screw	M6 X 40
31	L215846	1	Pedal	-
32	24M7139	1	Washer	6.400 X 18 X 1.600 mm
33	19M8875	1	Screw	M6 X 25
34	AL168880	1	Spring	-
35	L167309	2	Adapter Fitting	-
36	L156047	1	Absorber	-
37	19M7760	1	Screw	M6 X 45
38	L167166	1	Strap	ORDER L222497
38	L222497	1	Strap	-
39	L153901	1	Strap	-
40	AL158036	1	Wiring Harness	-
41	57M7263	1	Elec. Connector Housing	-
41	57M7291	1	Electrical Connector Assy	-
41	57M7252	6	Elec. Connector Terminal	Cavity A, B, C, D, E, F
41	57M9214	6	Elec. Connector Seal	Cavity A, B, C, D, E, F
42	57M7953	1	Electrical Connector Assy	-
42	57M7954	6	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5, 6
42	57M7955	6	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6
43	AL117898	1	Sensor	-
44	L150088	1	Torsion Spring	-
45	L150594	1	Stop	-
46	L155439	1	Pressure Sensitive Adhesive	-
47	L157681	1	Lever	-

CLUTCH ACTUATING COMPONENTS, CLUTCH PEDAL (ELECTRICAL)
