ACCELERATOR PEDAL (CAB)

ACCELERATOR PEDAL (CAB)

ACCELERATOR PEDAL (CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

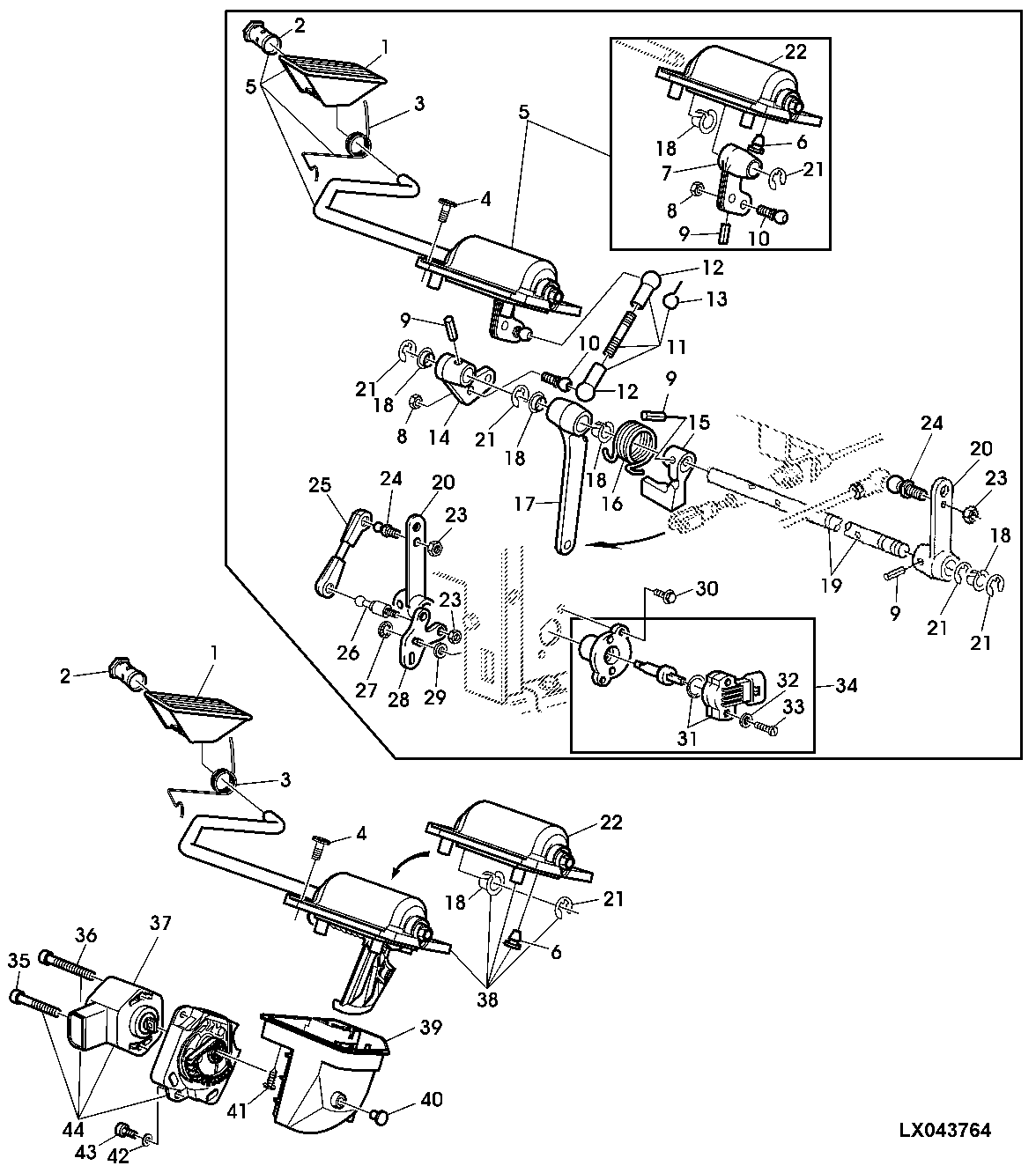

ACCELERATOR PEDAL (CAB)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L113020	1	Pedal	-
2	L113021	1	Bushing	-
3	L78701	1	Spring	-
4	L175903	3	Screw	-
5	AL119212	1	Accelerator	-
6	L150079	1	Bumper	-
7	L151157	1	Lever	-
8	14M7165	2	Lock Nut	M6
9	34H394	4	Spring Pin	3/16" X 15/16"
10	55M7012	3	Ball Stud	-
11	AL150098	1	Tie Rod Assembly	-
12	56M7006	2	Ball Joint Socket	(ORD W/ 56M7007)
13	56M7007	1	Ball Joint Retainer	-
14	L151157	1	Lever	-
15	L150527	1	Lever	-
16	L150526	1	Torsion Spring	-
17	L155732	1	Lever	(ORD W/ (2) L150363) (SUB FOR L150571)
18	L150363	1	Bushing	-
19	L150525	1	Shaft	-
20	L112950	1	Lever	-
21	R26871	1	Snap Ring	-
22	L150340	1	Housing	-
23	14M7165	2	Lock Nut	M6
24	55M7012	1	Ball Stud	-
25	AL151983	1	Tie Rod Assembly	(WITH ELECTRONIC SPEED CONTROL)
26	L151537	1	Ball Stud	(WITH ELECTRONIC SPEED CONTROL)
27	L114511	1	Push Nut	(WITH ELECTRONIC SPEED CONTROL)
28	L112880	1	Lever	(WITH ELECTRONIC SPEED CONTROL)
29	24H1302	1	Washer	(WITH ELECTRONIC SPEED CONTROL) 13/32" X 11/16" X 0.035"
30	37M7059	2	Screw	(WITH ELECTRONIC SPEED CONTROL) M5 X 12
31	AL113868	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) (WITHOUT ENGINE STAGE II ACC.97/68/EC) (NOT FOR AUTOPOWR - TRANSMISSION)
32	24M7117	2	Washer	(WITH ELECTRONIC SPEED CONTROL) 4.300 X 9 X 0.800 mm
33	21M7216	2	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 20
34	AL113843	1	Sensor	(WITH ELECTRONIC SPEED CONTROL)
35	21M7474	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 32
36	21M7477	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 40
37	AL156253	1	Potentiometer	(WITH ELECTRONIC SPEED CONTROL) B) (E) POWRQUAD PLUS, AUTOQUAD PLUS
37	AL175216	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) (WITH AUTOPOWR TRANSMISSION) AutoPowr™ SUB FOR AL117898
38	AL172025	1	Housing	(WITH ELECTRONIC SPEED CONTROL) (SUB FOR AL162510)
39	L150341	1	Housing	(WITH ELECTRONIC SPEED CONTROL)
40	99M7105	1	Plug	(WITH ELECTRONIC SPEED CONTROL)
41	19M9036	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 10
42	24M7027	3	Washer	(WITH ELECTRONIC SPEED CONTROL) 5.300 X 10 X 1 mm
43	19M8825	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M3 X 10
44	AL176501	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) (WITH ENGINE STAGE II ACC. 97/68/EC) (NOT FOR AUTOPOWR - TRANSMISSION) POWRQUAD PLUS, AUTOQUAD PLUS (SUB FOR AL156252)
44	AL176500	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) (WITH AUTOPOWR TRANSMISSION) AUTOPOWR (SUB FOR AL151425)
