Открытый узел

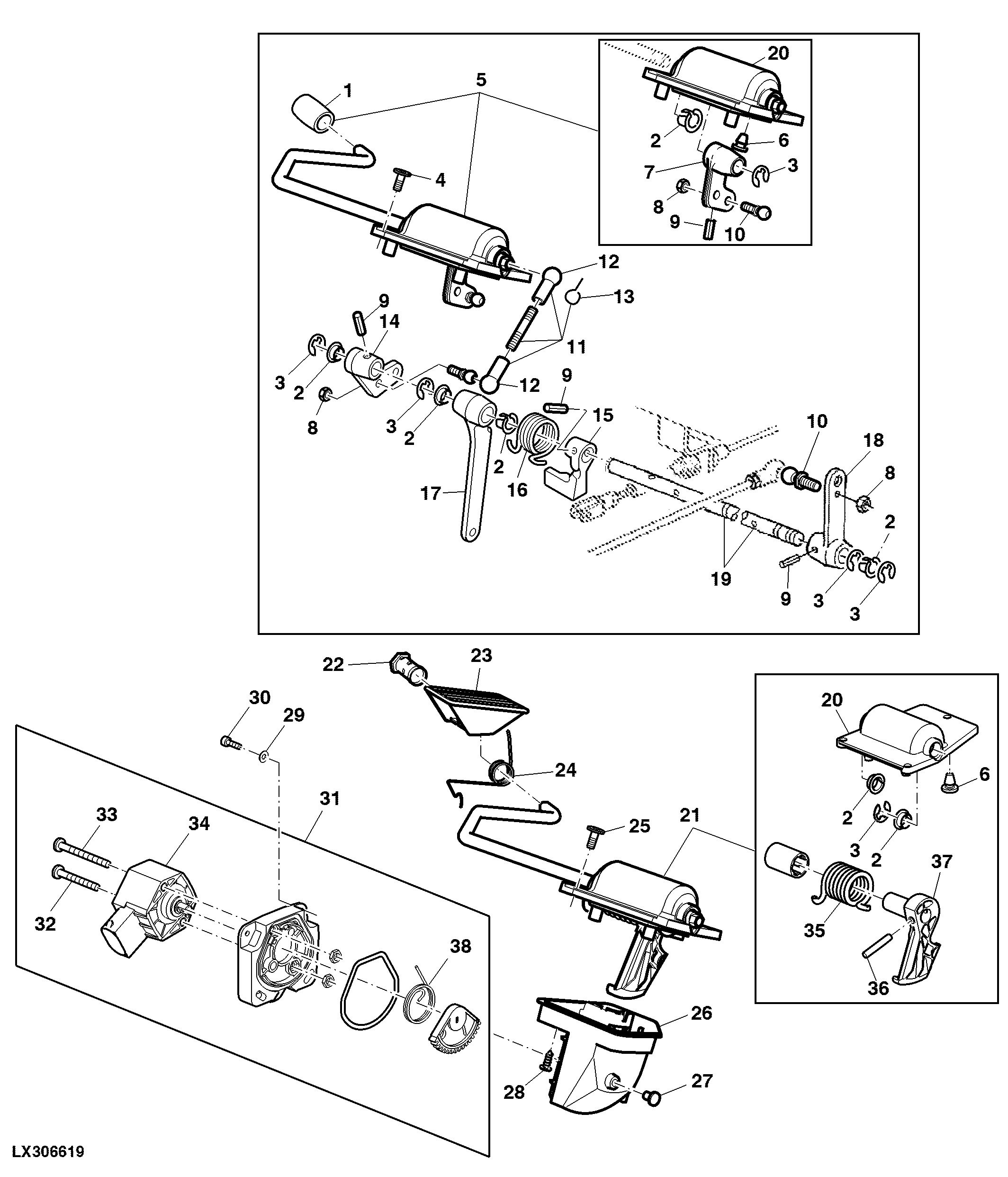

ACCEL. PEDAL (OPEN OPERATOR'S STATION / STANDARD VERSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L114645	1	Grip	(WITH MECHANICAL SPEED CONTROL)
2	L150363	1	Bushing	-
3	R26871	1	Snap Ring	-
4	19M8648	3	Screw	(WITH MECHANICAL SPEED CONTROL) M6 X 16
5	AL153882	1	Accelerator	(WITH MECHANICAL SPEED CONTROL)
6	L150079	1	Bumper	-
7	L151157	1	Lever	(WITH MECHANICAL SPEED CONTROL)
8	14M7165	3	Lock Nut	(WITH MECHANICAL SPEED CONTROL) M6
9	34H394	4	Spring Pin	(WITH MECHANICAL SPEED CONTROL) 3/16" X 15/16"
10	55M7012	3	Ball Stud	(WITH MECHANICAL SPEED CONTROL)
11	AL150098	1	Tie Rod Assembly	(WITH MECHANICAL SPEED CONTROL)
12	56M7006	2	Ball Joint Socket	(WITH MECHANICAL SPEED CONTROL) (ORDER W/ 56M7007)
13	56M7007	1	Ball Joint Retainer	(WITH MECHANICAL SPEED CONTROL)
14	L151157	1	Lever	(WITH MECHANICAL SPEED CONTROL)
15	L150527	1	Lever	(WITH MECHANICAL SPEED CONTROL)
16	L150526	1	Torsion Spring	(WITH MECHANICAL SPEED CONTROL)
17	L155732	1	Lever	(WITH MECHANICAL SPEED CONTROL) (SUB FOR L150571)
18	L112950	1	Lever	(WITH MECHANICAL SPEED CONTROL)
19	L150525	1	Shaft	(WITH MECHANICAL SPEED CONTROL)
20	L150340	1	Housing	-
21	AL172025	1	Housing	(WITH ELECTRONIC SPEED CONTROL) SUB FOR AL162510
22	L113021	1	Bushing	(WITH ELECTRONIC SPEED CONTROL)
23	L113020	1	Pedal	(WITH ELECTRONIC SPEED CONTROL)
24	L78701	1	Spring	(WITH ELECTRONIC SPEED CONTROL)
25	L175903	3	Screw	(WITH ELECTRONIC SPEED CONTROL)
26	L212828	1	Housing	(WITH ELECTRONIC SPEED CONTROL) SUB FOR L150341 APPL
27	99M7105	1	Plug	(WITH ELECTRONIC SPEED CONTROL)
28	19M9036	3	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 10
29	24M7027	3	Washer	(WITH ELECTRONIC SPEED CONTROL) 5.300 X 10 X 1 mm
30	L212830	3	Screw	(WITH ELECTRONIC SPEED CONTROL)
31	AL208900	1	Cover	(WITH ELECTRONIC SPEED CONTROL) SUB FOR AL176501 AND AL156252 APPL
32	21M7474	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 32
33	21M7477	1	Screw	(WITH ELECTRONIC SPEED CONTROL) M4 X 40
34	AL175213	1	Sensor	(WITH ELECTRONIC SPEED CONTROL) SUB FOR AL156253 APPL
35	L150338	1	Torsion Spring	(WITH ELECTRONIC SPEED CONTROL)
36	L153015	1	Stud	(WITH ELECTRONIC SPEED CONTROL)
37	L168521	1	Quadrant	(WITH ELECTRONIC SPEED CONTROL)
38	L150718	1	Torsion Spring	(WITH ELECTRONIC SPEED CONTROL)

ACCEL. PEDAL (OPEN OPERATOR'S STATION / STANDARD VERSION)
