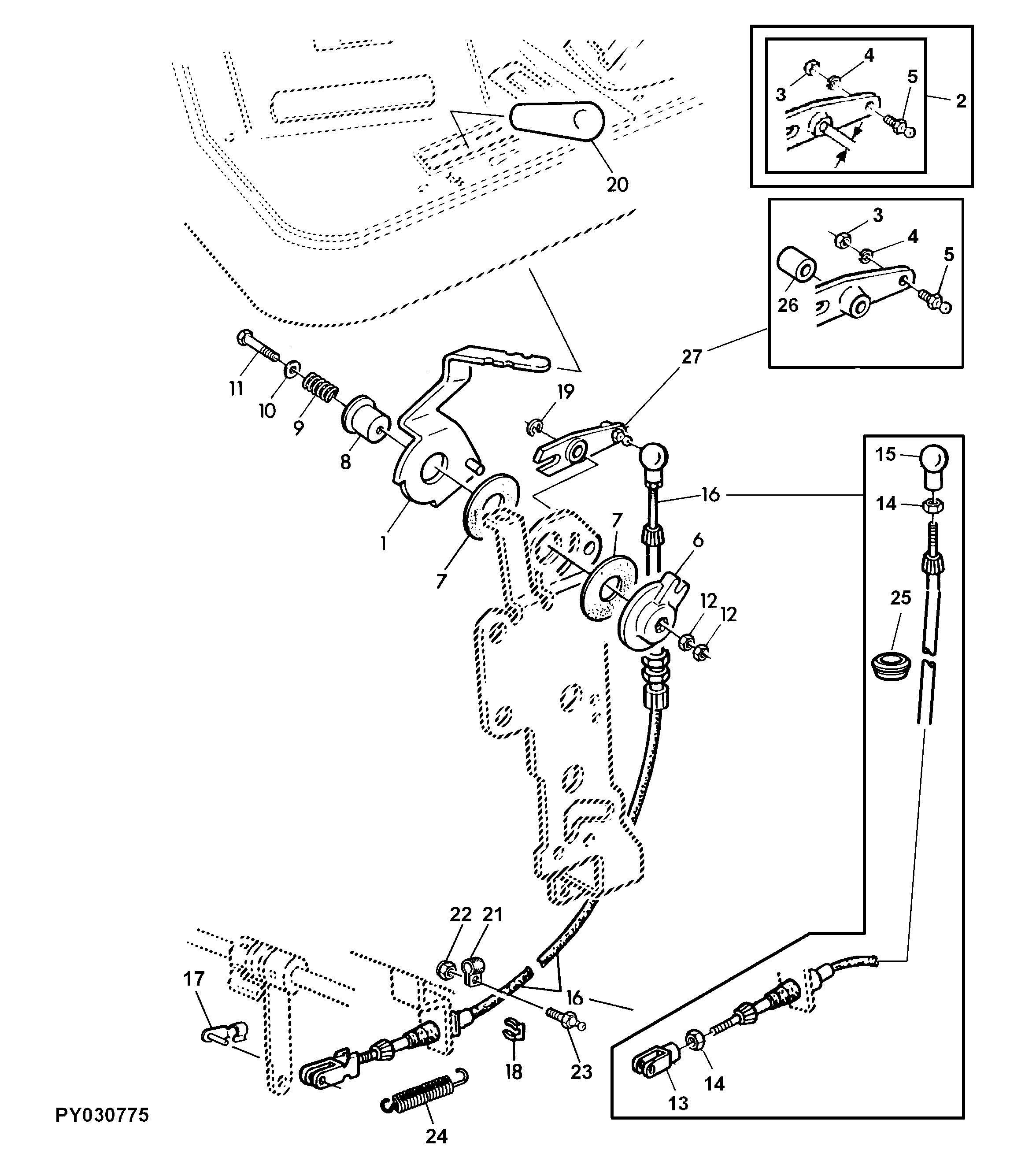

SPEED CONTROL LINKAGE (NOT AUTOPOWR)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL151282	1	Lever	(SUB FOR AL111482)
1	AL151869	1	Lever	(WITH ARMREST-INTEGRATED SINGLE-LEVER CONTROL) (SUB FOR AL117692)
2	AL110045	1	Lever	ID= 8MM (5/16"), (ORD AL119895)
3	14M7229	1	Nut	M5
4	12M7077	1	Washer	5 mm
5	55M7003	1	Ball Stud	-
6	L110422	1	Plate	-
7	L58671	2	Washer	-
8	R50227	1	Round Retainer	-
9	R31271	1	Compression Spring	-
10	24M7055	1	Washer	8.400 X 16 X 1.600 mm
11	19M7164	1	Cap Screw	(WITH ARMREST-INTEGRATED SINGLE-LEVER CONTROL) M8 X 50
11	19M7378	1	Cap Screw	M8 X 45
12	14M7151	2	Nut	M8
13	L80051	1	Yoke	-
14	14M7272	2	Nut	M6
15	56M5259	1	Ball Joint Socket	-
16	AL76778	1	Push Pull Cable	(2-POST ROLL GARD STANDARD VERSION) (CAB)
16	AL82247	1	Push Pull Cable	(2-POST ROLL GARD LOW PROFILE)
17	45M7101	1	Spring Locking Pin	(SUB FOR AL116506 APPL)
18	L219493	1	Snap Ring	SUB FOR L79076
19	40M7040	1	Snap Ring	-
20	R345693	1	Knob	(WITH ARMREST-INTEGRATED SINGLE-LEVER CONTROL) SUB FOR R153184
20	L113076	1	Grip	-
21	AH77724	1	Clip	(WITH ELECTRONIC SPEED CONTROL)
22	14M7166	1	Lock Nut	(WITH ELECTRONIC SPEED CONTROL) M8
23	R237474	1	Ball Stud	(WITH ELECTRONIC SPEED CONTROL) (SUB FOR R97588)
24	L114521	1	Spring	(WITH ELECTRONIC SPEED CONTROL)
25	L76801	1	Grommet	(WITH ELECTRONIC SPEED CONTROL)
26	L116576	1	Bushing	-
27	AL119895	1	Lever	ID= 10MM (25/64")

SPEED CONTROL LINKAGE (NOT AUTOPOWR)

Нет текстового описания
