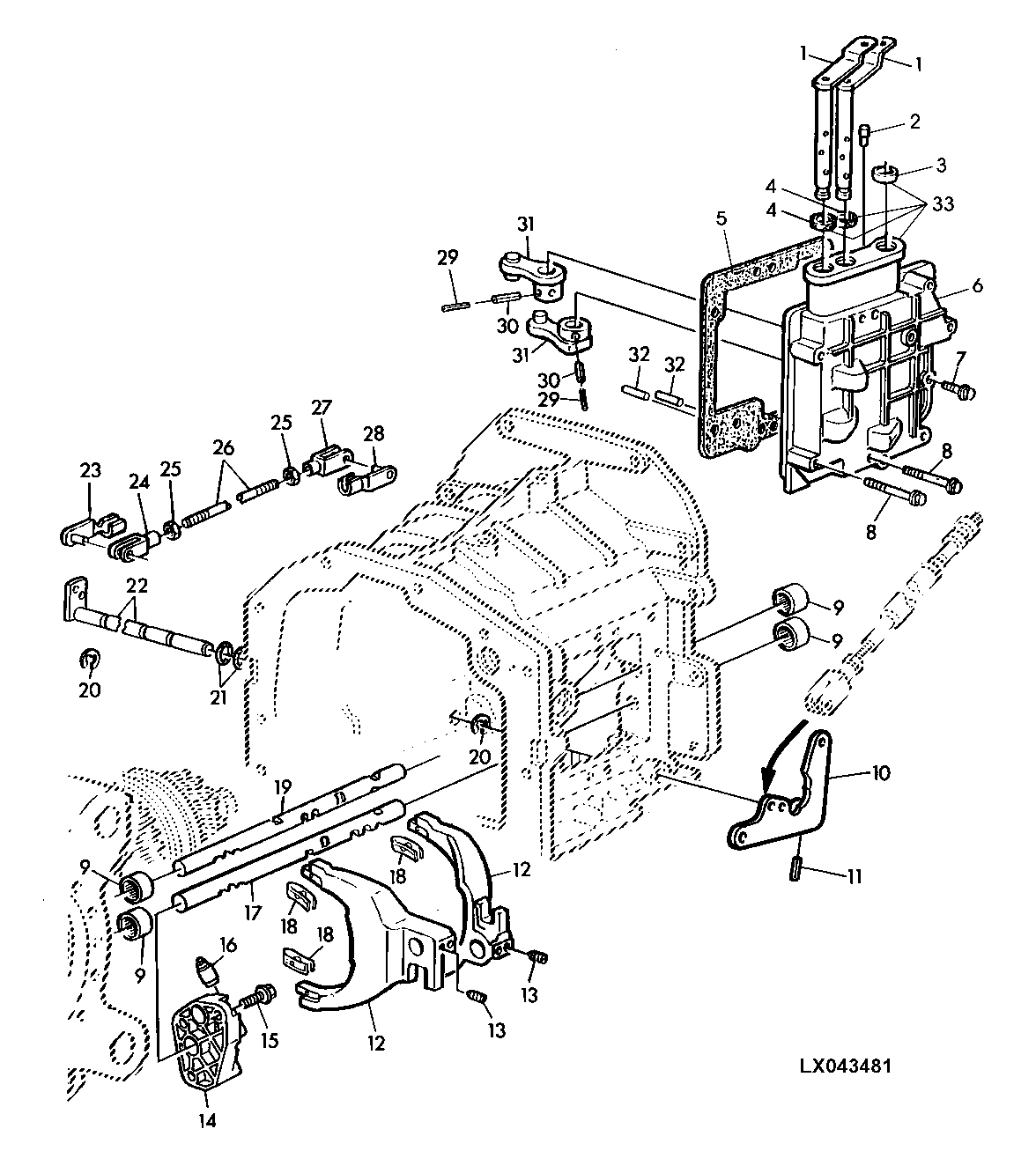

SHIFTING PARTS, RANGE TRANSM. (POWER REVERSER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL81250	2	Shaft	-
2	L76229	1	Pin Fastener	-
3	30M7024	1	Plug	-
4	L116320	2	Seal	(FOR L101207) (SUB FOR L78612)
4	L153307	2	Seal	(FOR L153159)
5	L76234	1	Gasket	-
6	L101207	1	Cover	(MARKED L101207) (ORD AL155290)
6	L153159	1	Cover	(MARKED L153159) (ORD AL155290)
7	19M7866	1	Screw	M8 X 20, (10.9)
8	19M7800	5	Screw	M8 X 50, (10.9)
9	JD10508	4	Bearing	-
10	AL114326	1	Lever	-
11	34M6994	1	Spring Pin	6 X 24 mm
12	L111048	2	Shifter	-
13	L33332	4	Set Screw	-
14	L110335	1	Housing	MARKED L110335 (ORD L153345, (3) 19M7866)
14	L153345	1	Housing	MARKED L153345
15	19M7867	3	Screw	M8 X 25, (10.9) (FOR L110335)
15	19M7866	3	Screw	M8 X 20, (10.9) (FOR L153345)
16	AL116245	2	Detent	(SUB FOR AL82118)
17	L156695	1	Shifter Rod	(WITH CREEPER TRANSMISSION) (SUB FOR L77227)
17	L76224	1	Shifter Rod	-
18	L113217	4	Clip	-
19	L76225	1	Shifter Rod	-
20	40M7068	2	Snap Ring	-
21	L53813	2	O-Ring	-
22	AL114408	1	Shaft	-
23	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
24	L80053	1	Yoke	LGTH= 55MM (2.20")
25	14M7009	2	Nut	M6
26	L112919	1	Rod	LGTH= 475MM (18.700")
26	L114336	1	Rod	(WITH CREEPER TRANSMISSION) LGTH= 645MM (25.393")
27	L80052	1	Yoke	LGTH= 44MM (1.73")
28	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
29	34M7032	2	Spring Pin	5 X 28 mm
30	34M7225	2	Spring Pin	8 X 28 mm
31	AL166649	2	Lever	(SUB FOR AL80836 APPL)
32	44M7111	1	Dowel Pin	-
33	AL155290	1	Transmission Case	-

SHIFTING PARTS, RANGE TRANSM. (POWER REVERSER)
