Открытый узел

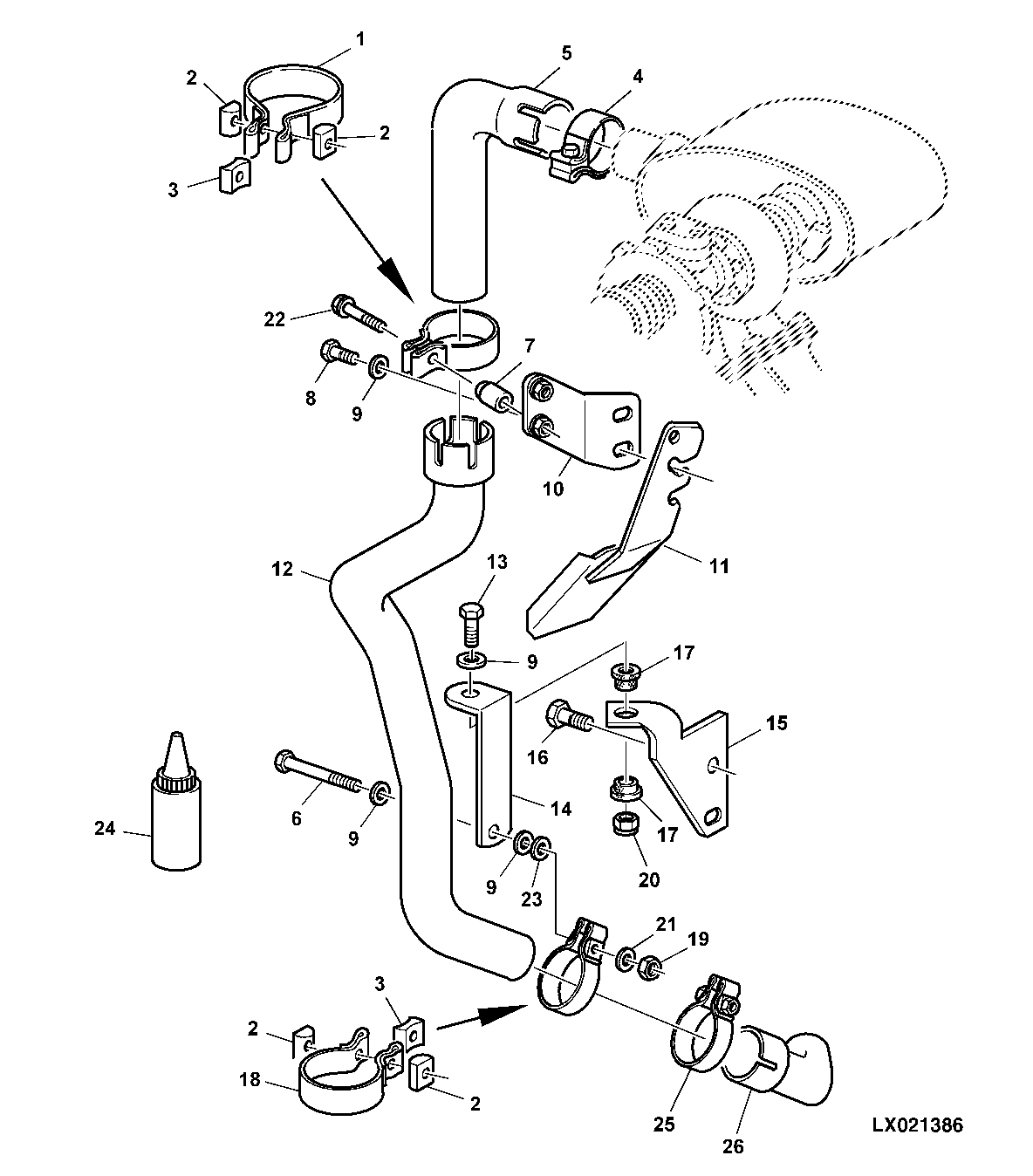

EXHAUST TO BOTTOM, ON RIGHT SIDE (WITH OR W/O FRONT LOADER)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L113346	1	Clamp	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
2	L110172	4	Spacer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
3	L110169	2	Spacer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
4	AL80714	1	Clamp	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
5	L102641	1	Exhaust Pipe	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
6	19M7875	1	Cap Screw	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10 X 70, (10.9)
7	L111946	1	Spacer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
8	19M7785	2	Screw	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10 X 25, (10.9)
9	24M7213	5	Washer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) 10.500 X 25 X 4 mm
10	AL115766	1	Holder	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
11	AL117066	1	Guard	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
12	L114658	1	Exhaust Pipe	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
13	19M7169	1	Cap Screw	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10 X 35
14	L113323	1	Bracket	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
15	L114657	1	Bracket	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
16	19M7403	2	Cap Screw	M12 X 35, (10.9)
17	AL29889	2	Bumper	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
18	L110291	1	Clamp	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
19	14M7274	1	Nut	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10
20	14M7516	1	Lock Nut	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10
21	24M7096	1	Washer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) 10.500 X 18 X 1.600 mm
22	19M8950	1	Screw	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) M10 X 85
23	24H1781	1	Washer	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) 13/32" X 7/8" X 1/4"
24	L102219	1	Grease	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX) 50G
25	AL119409	1	Clamp	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)
26	L114124	1	Pipe Elbow	(ALSO FOR TRACTORS W/O FRONT LOADER FROM SERIAL NO. XXXXXX)

EXHAUST TO BOTTOM, ON RIGHT SIDE (WITH OR W/O FRONT LOADER)

Нет текстового описания
