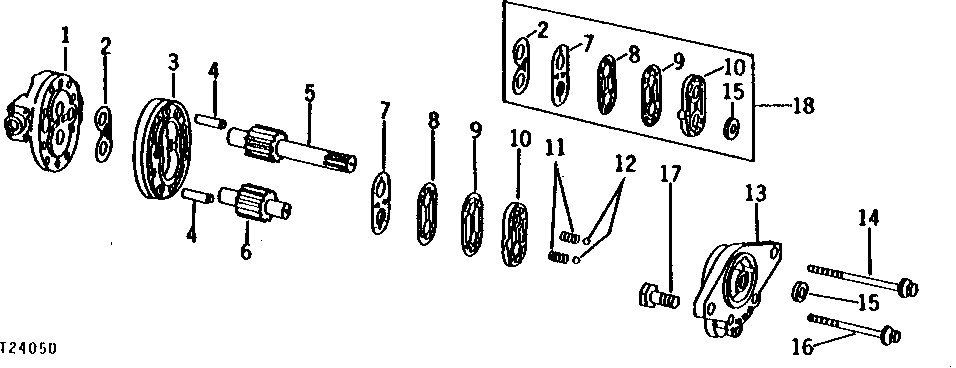

PUMP (23 G.P.M.) (JD350 CRAWLER) [B02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AU11847, AT31672 AND AT39025 NO LONGER AVAILABLE)
2	-	1	Part 2	( U13275 AND T32081 NO LONGER AVAILABLE)
3	-	1	Part 3	( AU11977, T32402 AND T40417 NO LONGER AVAILABLE)
4	U13268	2	DOWEL PIN	-
5	-	1	Part 5	( AU11846 NO LONGER AVAILABLE) (SUB AT31209 IF AVAILABLE)
6	-	1	Part 6	( AU11845 NO LONGER AVAILABLE) (SUB AT31210 IF AVAILABLE)
7	-	1	Part 7	(SUB FOR U13278 AND T32082) (SUB AT38801)
8	T32084	1	GASKET	(SUB FOR U13279 AND U41260)
9	T32083	1	GASKET	(SUB FOR U13280)
10	T32403	1	SEAL	(SUB FOR U13282)
11	-	2	Part 11	( U11744 NO LONGER AVAILABLE)
12	-	2	Part 12	( U11747 NO LONGER AVAILABLE)
13	-	1	Part 13	( AU11848, AT31671 AND AT39024 NO LONGER AVAILABLE) (SUB AT52687 IF AVAILABLE)
14	U13341	4	Screw	3/8" X 3-1/2"
15	AT59652	1	SEAL	(SUB FOR U13281)
16	-	4	Part 16	3/8" X 3", ( U13342 NO LONGER AVAILABLE)
17	19H2898	2	Cap Screw	1/2" X 1-1/4"
17	12H301	2	Lock Washer	1/2"
18	AU40817	1	KIT	(B) (SUB AT39028) (SUB FOR AU12060 AND AT31211)
..	AU11949	1	PUMP	(A) (SUB AT38801) (SUB FOR AT31208)
..	T43514	1	Gasket	(50 CC) (MAKES SEVERAL GASKETS) (SUB FOR AT26340)

PUMP (23 G.P.M.) (JD350 CRAWLER) [B02]

Нет текстового описания
