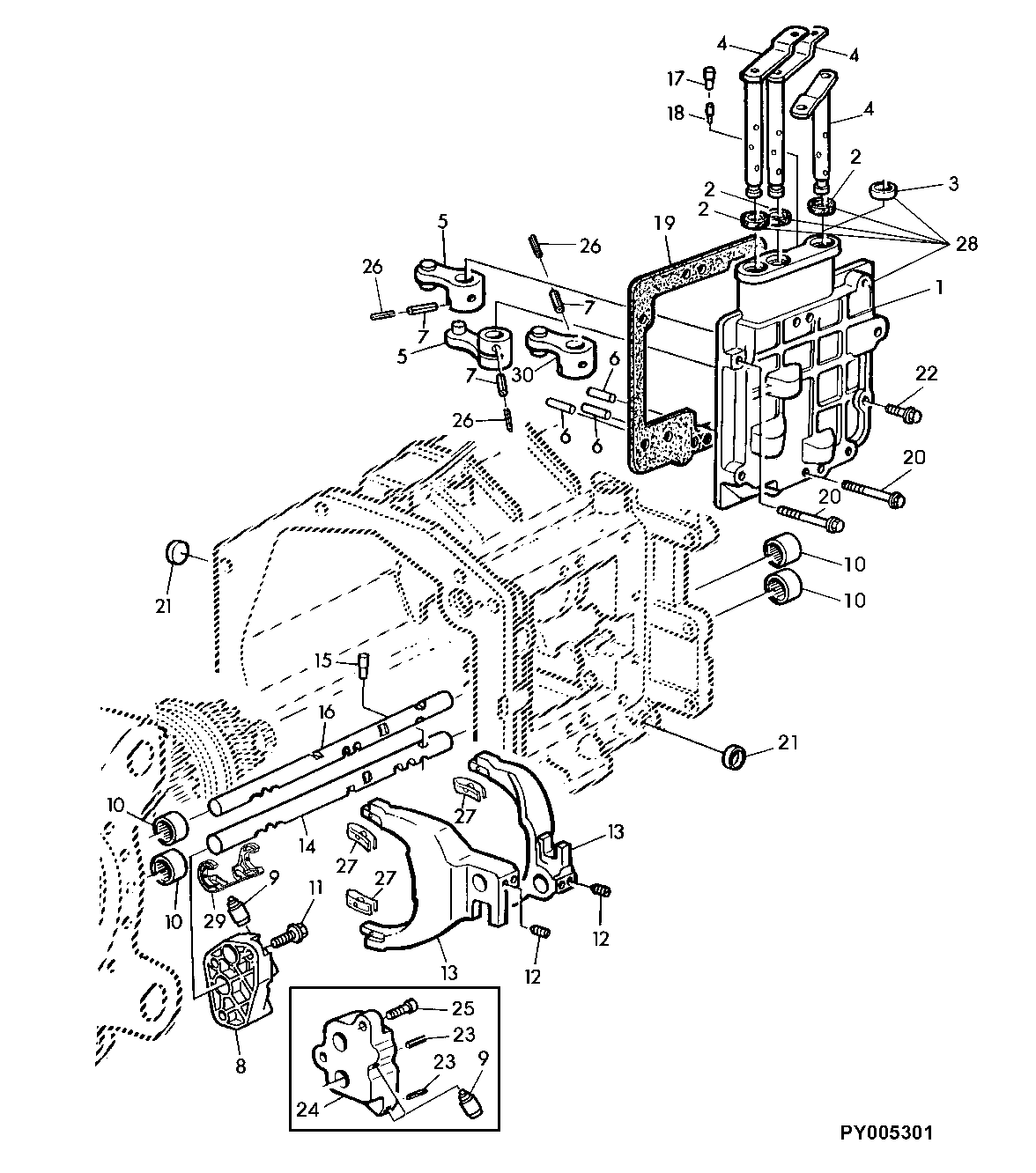

SHIFTING PARTS, RANGE TRANSM. (SYNCROPLUS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L153159	1	Cover	(MARKED L153159) (ORD AL155290)
1	L101207	1	Cover	(MARKED L101207) (ORD AL155290) (SUB FOR L76182)
1	L153160	1	Cover	(MARKED L153160) (ORD W/ 30M7024, L153307)
1	L101221	1	Cover	(WITH FRONT PTO) (MARKED L101221) (ORD L153160, 30M7024, L153307) (SUB FOR L80367)
2	L116320	1	Seal	(FOR L101207, L101221)
2	L153307	1	Seal	(FOR L153159, L153160) (SUB FOR L78612)
3	30M7024	1	Plug	(WITH 12-SPEED TRANSMISSION = 30KMH)
4	AL76815	1	Shaft	(ORD AL81250, AL80836, 34M7225, 34M7032)
4	AL81250	1	Shaft	(ORD W/ 34M7032)
4	AL81250	1	Shaft	-
5	AL166649	1	Lever	(SUB FOR AL80836 APPL)
5	AL80836	1	Lever	(ORD W/ 34M7032)
5	AL76792	1	Lever	(ORD AL80836, AL81250, 34M7225, 34M7032)
6	44M7111	1	Dowel Pin	-
7	34M7245	1	Spring Pin	6 X 28 mm, 6X28MM
7	34M7225	1	Spring Pin	8 X 28 mm, 8X28MM
8	L110335	1	Housing	-
9	AL116245	2	Detent	(SUB FOR AL77876, AL82118)
10	JD10508	1	Bearing	-
11	19M7867	3	Screw	M8 X 25, M8X25, (10.9)
12	L33332	4	Set Screw	-
13	L76183	2	Shifter	(ORD L111048, (2) L113217)
13	L111048	2	Shifter	-
14	L77227	1	Shifter Rod	(WITH 15 SPEED TRANSMISSION = 30KMH) (WITH 18 SPEED TRANSMISSION = 40KMH) (WITH CREEPER TRANSMISSION)
14	L76224	1	Shifter Rod	-
15	L77271	1	Pin Fastener	(WITH 15 SPEED TRANSMISSION = 30KMH) (WITH 18 SPEED TRANSMISSION = 40KMH)
16	L76225	1	Shifter Rod	-
17	L76229	1	Pin Fastener	-
18	L78755	1	Pin Fastener	(WITH 15 SPEED TRANSMISSION = 30KMH) (WITH 18 SPEED TRANSMISSION = 40KMH)
19	L76234	1	Gasket	-
20	19M7800	5	Screw	M8 X 50, M8X50, (10.9)
21	30M7010	2	Plug	-
22	19M7866	1	Screw	M8 X 20, M8X20, (10.9)
23	34M7144	2	Spring Pin	4 X 28 mm
24	L76227	1	Housing	-
25	19M7657	2	Screw	M8 X 25, M8X25, (10.9)
26	34M7032	1	Spring Pin	5 X 28 mm, 5X28MM
27	L113217	4	Clip	(SUB FOR L111830)
28	AL155290	1	Transmission Case	-
28	AL155291	1	Transmission Case	CNLA
29	L165946	1	Clip	-
30	AL166651	1	Lever	-

SHIFTING PARTS, RANGE TRANSM. (SYNCROPLUS)
