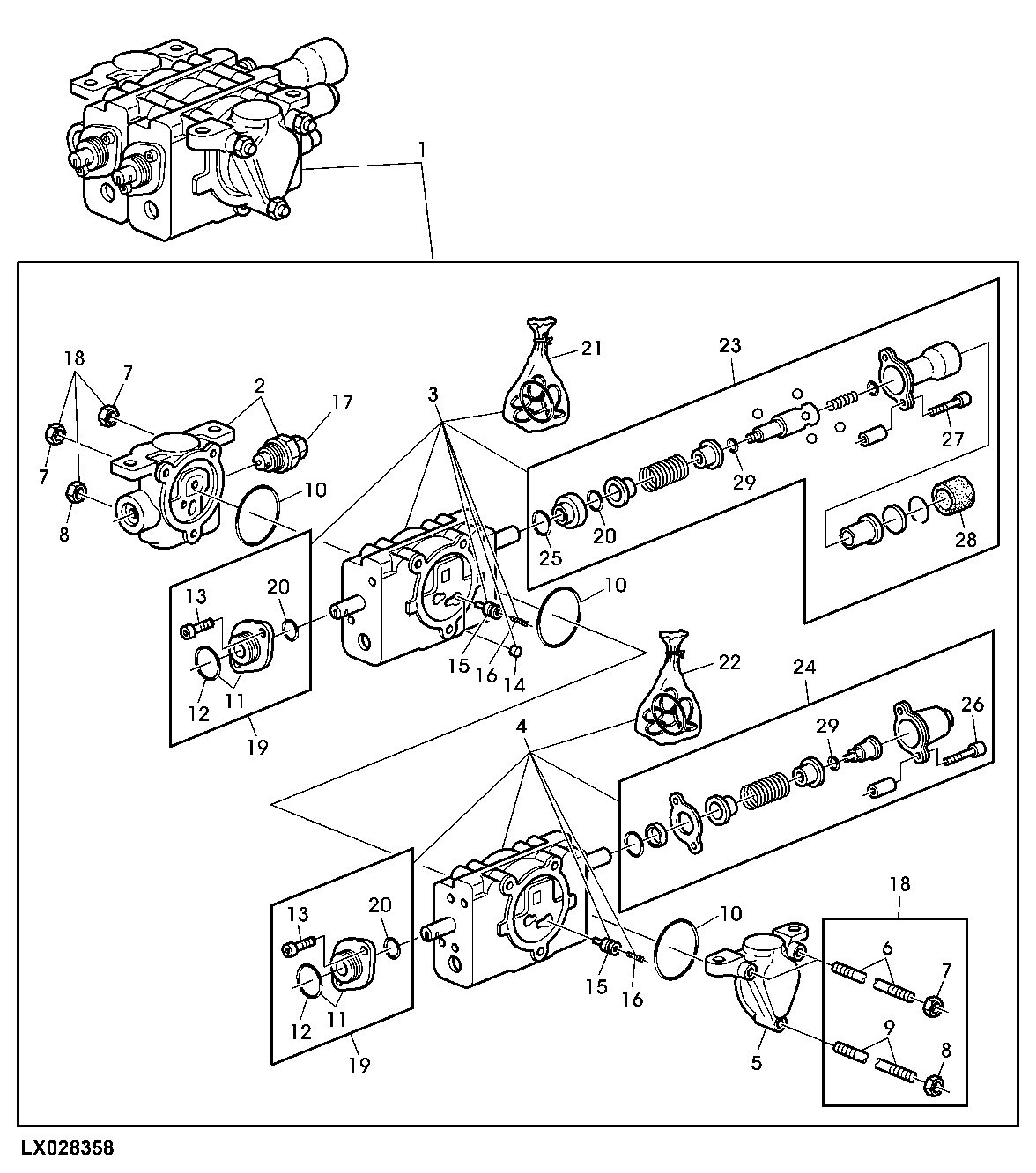

INDEPENDENT CONTROL VALVE, R.H. / CENTER CAB

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL114398	1	Valve Stack	(SUB FOR AL110630)
2	AL117101	1	Tune-Up Kit	(FOR AL114478)
3	AL117102	1	Tune-Up Kit	(FOR AL112077)
4	AL117103	1	Tune-Up Kit	(FOR AL112078)
5	AL117105	1	Tune-Up Kit	(SUB FOR L111774)
6	L111775	2	Stud	(ORD AL118512)
7	14H1042	4	Nut	5/16", (SUB FOR L111423 APPL)
8	14H1080	2	Nut	3/8", (SUB FOR L111424 APPL)
9	L111776	1	Stud	(ORD AL118512)
10	L111836	3	O-Ring	-
11	AL110511	1	Flange	(ORD AL165337)
12	P47889	1	O-Ring	-
13	19H3753	2	Screw	1/4" X 1/2", (SAE8)
14	R95493	1	Disk	(SUB FOR L111837 APPL)
15	L115717	2	Valve Spool	-
16	R111238	2	Compression Spring	-
17	AL114480	1	Pressure Relief Valve	-
18	AL118512	1	Tune-Up Kit	(FOR L111775 OR L111776)
19	AL165337	1	Tune-Up Kit	(FOR L111775 OR L111776) (SUB FOR AL118511)
20	L165154	1	O-Ring	(SUB FOR R459R APPL)
21	AL165278	1	Seal Kit	(SUB FOR AL118514)
22	AL165279	1	Seal Kit	(SUB FOR AL118515)
23	AL118509	1	Tune-Up Kit	-
24	AL118510	1	Tune-Up Kit	-
25	T46864	1	O-Ring	-
26	19H2924	2	Screw	1/4" X 3/4"
27	19H2992	2	Screw	1/4" X 1-1/4"
28	L115724	1	Boot	-
29	R26287	1	O-Ring	-

INDEPENDENT CONTROL VALVE, R.H. / CENTER CAB
