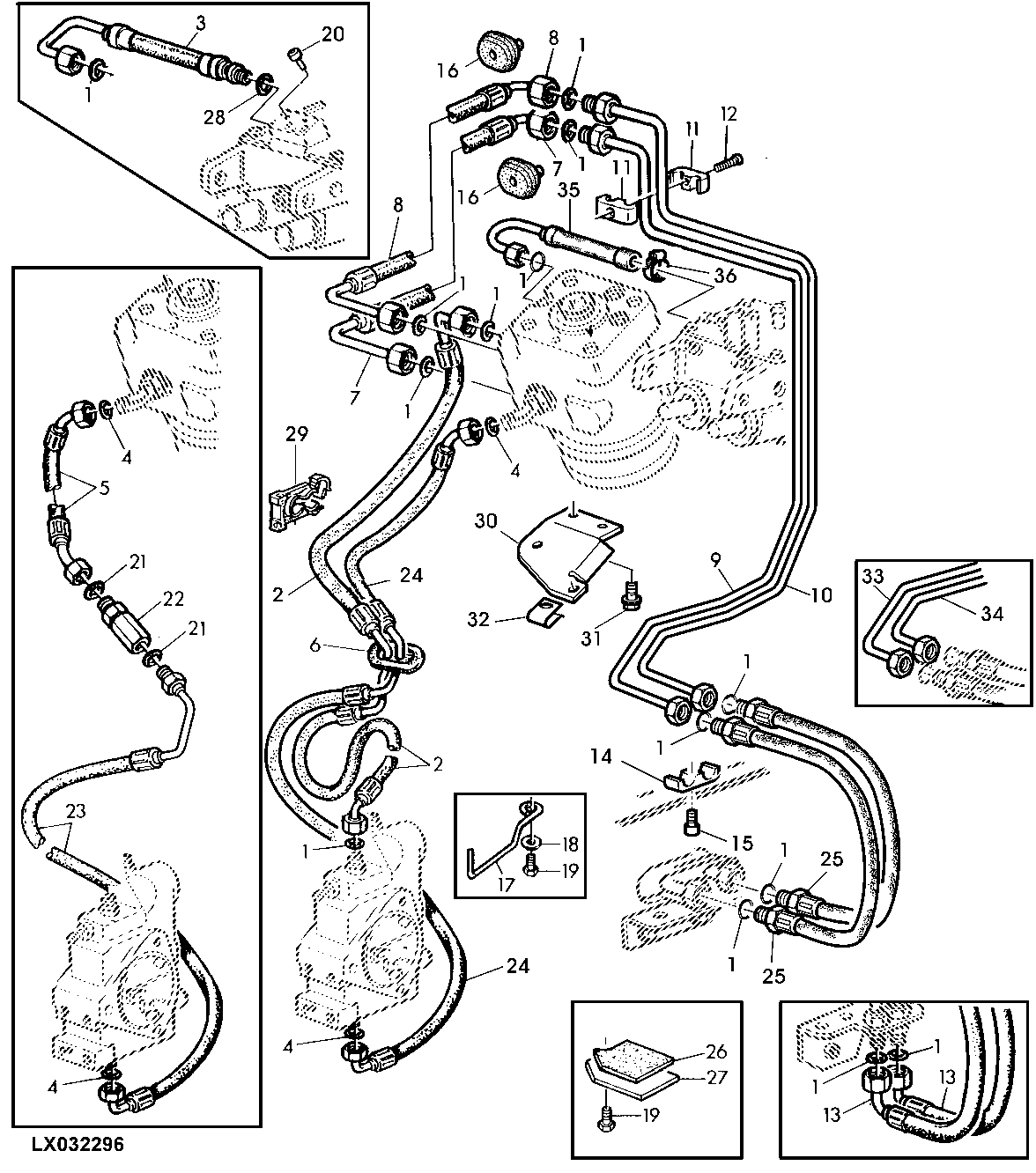

HYDROSTATIC STEERING, OIL LINES (4-POST ROLL GUARD AND CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	1	O-Ring	-
2	AL75590	1	Hydraulic Hose	-
3	AL75589	1	Hydraulic Hose	(FOR AL111356)
4	T77613	1	O-Ring	-
5	AL78945	1	Hydraulic Hose	-
6	L100377	1	Grommet	-
7	AL75631	1	Hydraulic Hose	(ORD AL81147, AL81146, AL150200, AL150201, (6) T77857)
7	AL81147	1	Hydraulic Hose	-
8	AL75630	1	Hydraulic Hose	(ORD AL81146, AL81147, AL150200, AL150201, (6) T77857)
8	AL81146	1	Hydraulic Hose	-
9	AL150200	1	Oil Line	-
10	AL150201	1	Oil Line	-
11	L38284	2	Clamp	-
12	19M8532	1	Screw	M6 X 35
13	AL78575	2	Hydraulic Hose	-
14	L41980	1	Clamp	-
15	19M8263	1	Screw	M6 X 30
16	L38053	2	Grommet	-
16	L102007	2	Grommet	-
17	L78208	1	Bail	(ORD L116359, (2) 37M7361, L102357)
18	24M7055	1	Washer	8.400 X 16 X 1.600 mm
19	19M7139	1	Cap Screw	M8 X 20
20	L79372	1	Stud	(FOR AL111356)
21	T77814	2	O-Ring	-
22	AL159974	1	Check Valve	(SUB FOR AL79011, AL82660, AL153971)
23	AL78944	1	Hydraulic Hose	-
24	AL76657	1	Hydraulic Hose	-
25	AL81647	2	Hydraulic Hose	-
26	L100551	1	Pad	-
27	L100547	1	Plate	(ORD L116359, (2) 37M7361, L102357)
28	Z27993	1	O-Ring	(FOR AL111356)
29	L112280	2	Clamp	-
30	L116359	1	Bracket	(SUB FOR AL113712)
31	37M7361	2	Screw	M6 X 16, M6X16
32	L102357	1	Nut	-
33	AL78579	1	Oil Line	(ORD AL81147, AL81146, AL150200, AL150201, (6) T77857)
33	AL81145	1	Line	(ORD AL150200, AL150201 (4) T77857)
34	AL78578	1	Oil Line	(ORD AL81146, AL81147, AL150200, AL150201, (6) T77857)
34	AL81144	1	Oil Line	(ORD AL150201, AL150200 (4) T77857)
35	AL115334	1	Hydraulic Hose	(FOR AL150144)
36	AL37489	1	Clamp	(FOR AL150144)
