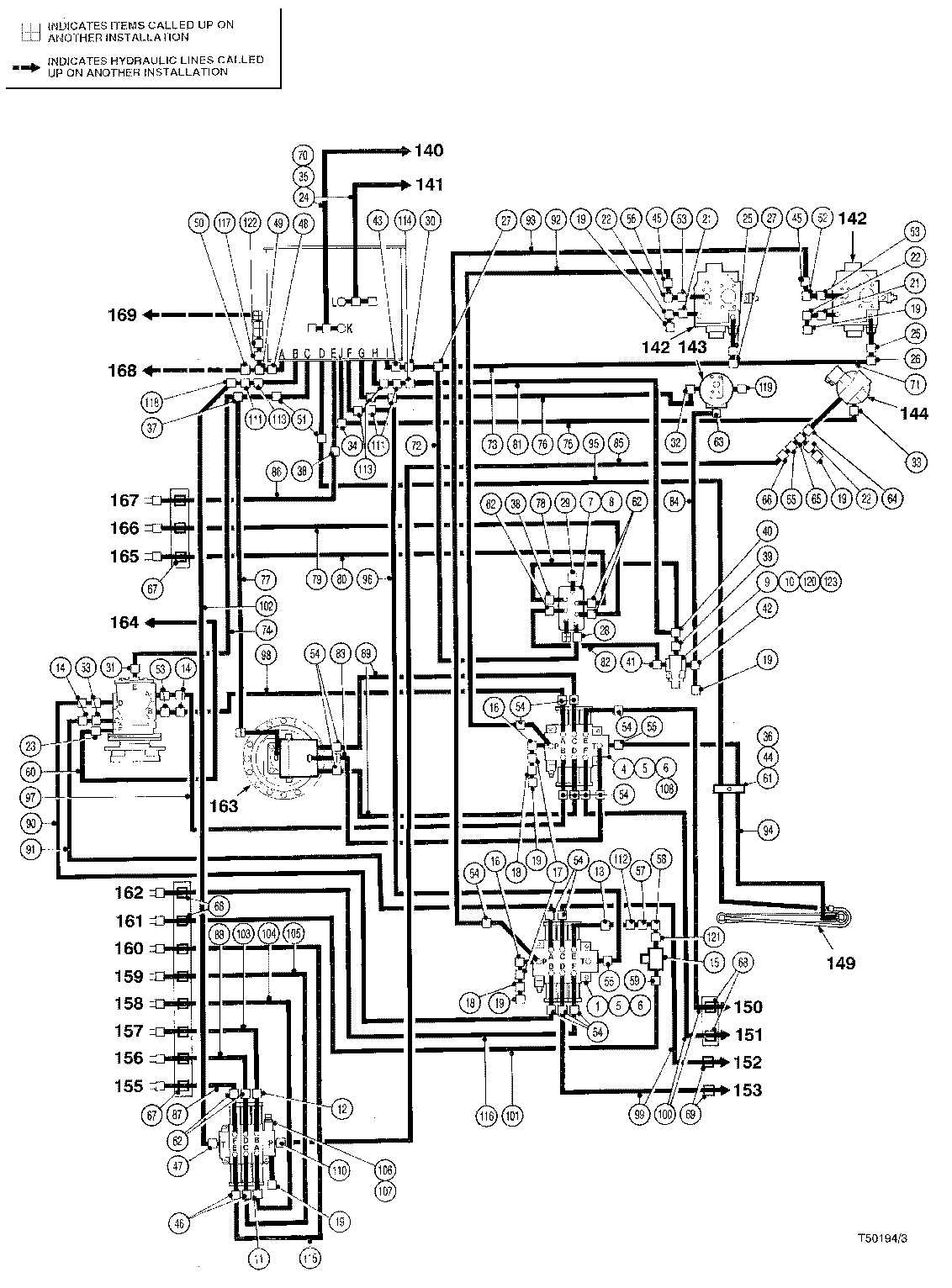

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN ( CB9407 - ) 2000-207/13 [2000-207/13]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	-------	1	O-RING	-
5	810082700	2	BOLT 1/2 - 13 UNC X 2-1/2	-
6	810379500	4	BOLT*1/2-13UNCX4	-
7	-------	1	O-RING	-
8	810428700	4	BOLT5/16-18UNC1 - FOR JOYSTICK SEAT	-
9	-------	1	O-RING	-
10	810102600	2	BOLT*5/16-18UCX2-1/2	-
11	701439500	1	ADAPTER/PLUG -	-
12	701439400	1	ADAPTER/PLUG -	-
13	810686800	4	BOLT*3/8-16UNCX1-1/2 -	-
14	811058300	16	BOLT*M12X1.75-40 -	-
15	700308800	1	VALVE CONTROL -	-
16	810617600	2	O-RING -	-
17	810578200	2	FITTING*.25/.438-20	-
18	810564100	2	ELBOW-90 DEG. -	-
19	700578000	7	COUPLER-TEST -	-
21	810606200	2	CONNECTOR	-
22	810420700	3	ELBOW-90 DEG. -	-
23	810862800	1	ADAPTER -	-
24	810639800	2	TEE -	-
25	810862800	2	ADAPTER -	-
26	810640100	1	ELBOW-90 DEG. -	-
27	810915700	2	TEE -	-
28	810334300	1	ADAPTER	-
29	810583800	3	PLUG -	-
30	810721500	1	FITTING	-
31	810115500	1	FITTING	-
32	810112100	1	ELBOW-90 DEG.	-
33	810913200	1	ELBOW-90 DEG.	-
34	810396500	1	ELBOW-90 DEG. -	-
35	810626000	1	CAP -	-
36	811708800	2	CLAMP -	-
37	810579400	1	TEE-JIC/JIC/JIC -	-
38	810115800	2	FITTING 3/4 MJIC 3/4	-
39	811448200	1	REDUCER	-
40	810447000	1	TEE -	-
41	811437700	1	ELBOW-90 DEG. -	-
42	700568000	1	ELBOW -	-
43	810566300	1	FITTING	-
44	810080100	1	HEX HEAD BOLT 3/8-16 UNC X 1	-
45	810461400	4	O-RING -	-
46	811439800	2	ADAPTER -	-
47	810115500	1	FITTING	-
48	810943100	1	FITTING	-
49	810354000	1	TEE	-
50	810502400	1	CONNECTOR	-
51	810490900	2	FITTING 1/2 MJIC 3/4 -	-
52	701210300	1	ADAPTER -	-
53	700620700	6	FLANGE KIT -	-
54	811168000	16	FLANGE KIT -	-
55	811621800	3	FLANGE KIT -	-
56	701210200	1	ADAPTER -	-
57	700312400	1	Adapter Fitting	-
58	810353500	1	ELBOW-90 DEG.	-
59	811441300	1	ADAPTER -	-
60	811413200	1	HOSE-HYD*0.25X98 -	-
61	810087500	1	HEX NUT 3/8-16 UNC	-
62	811439600	5	ADAPTER -	-
63	811622700	1	FLANGE KIT -	-
64	810566400	1	O-RING -	-
65	700620900	1	PLATE -	-
66	810081700	4	BOLT7/16-14UC2-1/2	-
67	700579800	9	Clamp	-
68	700579700	4	Clamp	-
69	810054500	2	CLAMP	-
70	811015200	2	HOSE-HYD*0.25X215 -	-
71	811409100	1	HOSE-HYD*0.25X17 -	-
72	810839700	1	HOSE-HYD*0.25X20	-
73	811430200	1	HOSE-HYD*0.25X90	-
74	811052500	1	HOSE-HYD*0.5X70	-
75	811420800	1	HOSE-HYD*0.5X76 -	-
76	811432100	1	HOSE-HYD*0.5X88C -	-
77	810726600	1	Hydraulic Hose	-
78	810969400	1	HOSE-HYD*0.75X30 -	-
79	811276400	1	HOSE-HYD*0.75X112C -	-
80	811276200	1	HOSE-HYD*0.75X108C -	-
81	811512500	1	HOSE-HYD*0.75X24 -	-
82	811267300	1	HOSE-HYD*0.75X30 -	-
83	811397600	1	HOSE-HYD*0.75X28 -	-
84	811308500	1	HOSE-HYD*0.75X124C -	-
85	811293600	1	HOSE-HYD*1.00X136C -	-
86	811407700	1	HOSE-HYD*0.75X98C -	-
87	811285200	1	HOSE-HYD*0.75X81C -	-
88	811285300	1	HOSE-HYD*0.75X83C -	-
89	811731300	2	HOSE-HYD*1.00X22 -	-
90	811869700	1	HOSE-HYD*1.00 X 64`` -	-
91	811869800	1	HOSE-HYD*1.00 X 66`` -	-
92	811722500	1	HOSE-HYD*1.00X54C -	-
93	811722600	1	HOSE-HYD*1.00X81C -	-
94	811697200	1	HOSE-HYD*1.00X112 -	-
95	811697100	1	HOSE-HYD*1.00X114 -	-
96	811398000	1	HOSE-HYD*1.00X54 -	-
97	811869500	1	HOSE-HYD*1.00 X 60`` -	-
98	811869600	1	HOSE-HYD*1.00 X 62`` -	-
99	811306600	2	HOSE-HYD*1.00X116C -	-
100	811293200	2	HOSE-HYD*1.00X118C -	-
101	811279300	1	HOSE-HYD*1.00X104C -	-
102	810433900	1	HOSE-HYD*1.00X52 - FROM 969137	-
103	811285400	1	HOSE-HYD*0.75X86C -	-
104	811285800	1	HOSE-HYD*0.75X93C -	-
105	811285600	1	HOSE-HYD*0.75X90C -	-
106	-------	1	O-RING	-
107	810082400	3	BOLT*1/2-13UNCX1-3/4	-
108	700592000	2	PLUG -	-
110	811441400	1	ADAPTER -	-
111	700591700	4	Check Valve	-
112	810574200	1	O-RING	-
113	840547100	4	O-RING -	-
114	810293100	1	FITTING -	-
115	811285500	1	HOSE-HYD*0.75X87C -	-
116	811293100	1	HOSE-HYD*1.00X112C -	-
117	810859000	1	Adapter Fitting	-
118	810441800	1	ELBOW-45 DEG.	-
119	810112600	1	PLUG	-
120	810087300	2	NUT*5/16-18UNC	-
121	826096000	1	ADAPTOR -	-
122	810324200	1	ADAPTER - TRANSMISSION	-
123	700882300	2	TUBE -	-
-	810480400	1	HOSE-HYD*1.00X60	-
-	811446800	1	O-RING -	-
-	811679200	1	FITTING-45 DEG. -	-

HYDRAULIC SYSTEM UPPER FRAME PRESSURE & RETURN ( CB9407 - ) 2000-207/13 [2000-207/13]
