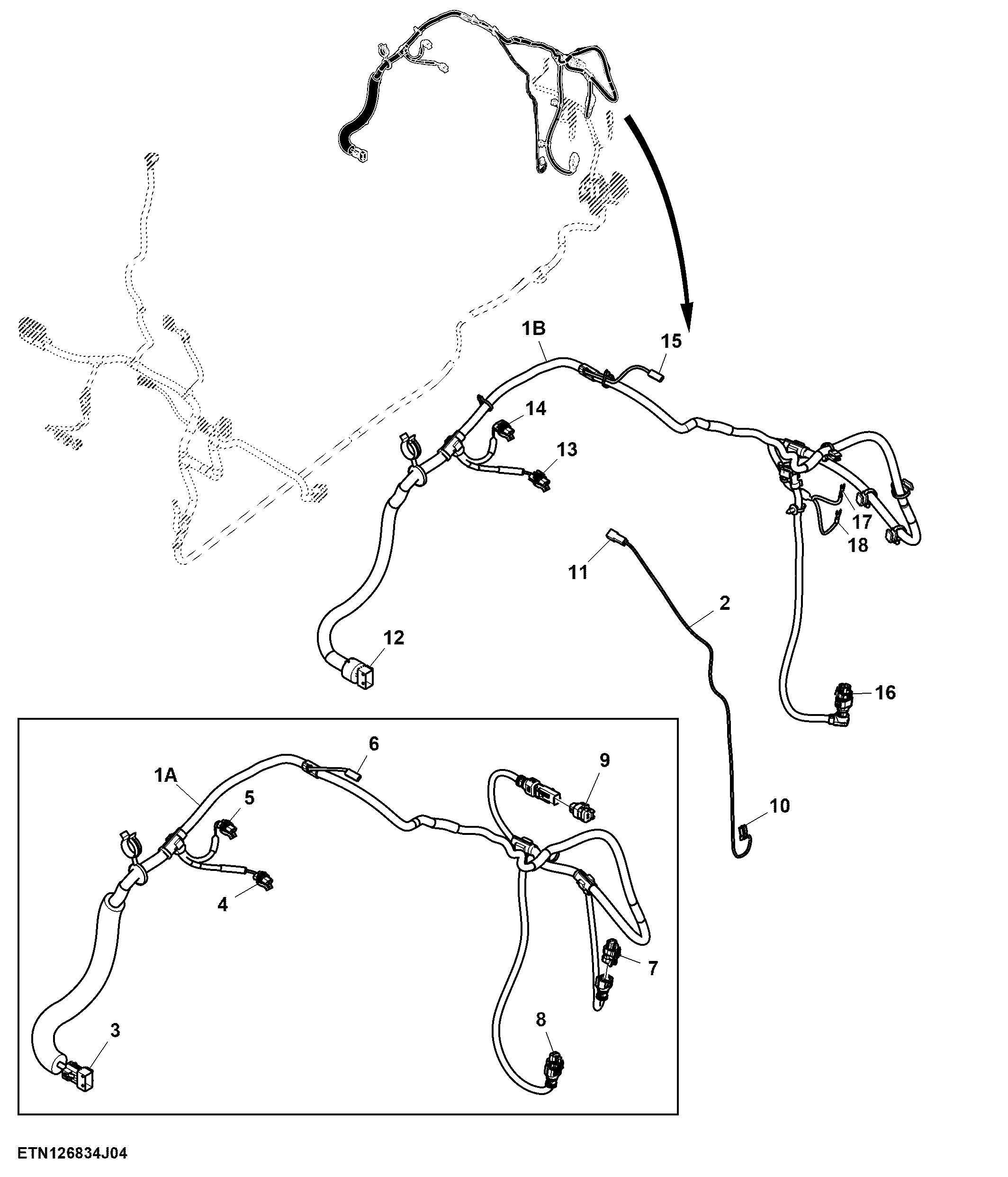

Wiring Harness, Front Chassis, W/ Front Controller, M400 (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AL200541	1	Wiring Harness	-
3	57M8074	1	Elec. Connector Terminal	-
3	57M7400	9	Elec. Connector Seal	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
3	57M8080	1	Elec. Connector Accessory	-
3	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079M
3	57M9042	7	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 7, 8, 9
3	57M7399	1	Elec. Connector Seal	Cavity 10
4	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X676F-2
4	57M10770	2	Elec. Connector Terminal	Cavity A, B
4	57M9215	2	Elec. Connector Seal	Cavity A, B
4	57M9712	1	Elec. Connector Accessory	-
5	57M9215	2	Elec. Connector Seal	Cavity A, B
5	57M9523	1	Elec.Connect Locking Device	-
5	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X678F-2
5	57M10770	2	Elec. Connector Terminal	Cavity A, B
6	57M7067	1	Elec. Connector Housing	Connector for Radiator Ground Connection, X1015F
6	57M7431	1	Elec. Connector Terminal	Cavity A
7	57M9775	1	Elec. Connector Housing	Fuel Pump, X708F-1
7	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
7	57M9837	1	Elec. Connector Accessory	ORDER 57M15493
7	57M15493	1	Elec. Connector Accessory	-
8	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X708F-2
8	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
8	57M9837	1	Elec. Connector Accessory	ORDER 57M15493
8	57M15493	1	Elec. Connector Accessory	-
9	57M11134	1	Elec. Connector Housing	-
9	57M9776	1	Elec. Connector Housing	CAN Bus Terminating Resistor, X1055F
9	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
9	57M9837	1	Elec. Connector Accessory	ORDER 57M15493
9	57M15493	1	Elec. Connector Accessory	-
10	57M8481	1	Elec. Connector Terminal	Connector for Radiator Ground Connection, X305F
11	57M7039	1	Elec. Connector Terminal	-
11	57M7068	1	Elec. Connector Housing	X305M-1
12	57M8080	1	Elec. Connector Accessory	-
12	57M7400	5	Elec. Connector Seal	Cavity 3, 4, 7, 8, 9
12	57M7401	2	Elec. Connector Cavity Plug	Cavity 5, 6
12	57M8084	1	Elec. Connector Accessory	-
12	57M7399	3	Elec. Connector Seal	Cavity 1, 2, 10
12	57M9042	5	Elec. Connector Terminal	Cavity 3, 4, 7, 8, 9
12	57M8068	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W521, X1079M
13	57M9712	1	Elec. Connector Accessory	-
13	57M10770	2	Elec. Connector Terminal	Cavity A, B
13	57M9215	2	Elec. Connector Seal	Cavity A, B
13	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X676F-2
14	57M9712	1	Elec. Connector Accessory	-
14	57M10770	2	Elec. Connector Terminal	Cavity A, B
14	57M9215	2	Elec. Connector Seal	Cavity A, B
14	57M7254	1	Elec. Connector Housing	Coolant Level Service Switch, X678F-2
15	57M7067	1	Elec. Connector Housing	Connector for Radiator Ground Connection, X1015F
15	57M7431	1	Elec. Connector Terminal	Cavity A
16	57M9772	1	Elec. Connector Housing	Water in Fuel Sensor, X690F-2
16	57M10321	2	Elec. Connector Terminal	Cavity 1, 2
17	57M11295	1	Elec. Connector Terminal	Fuel Pump, X804F-3
18	57M7054	1	Elec. Connector Terminal	Fuel Pump, X804F-4
1A	AL227618	1	Wiring Harness	-
1B	AL232648	1	Wiring Harness	-
