Открытый узел

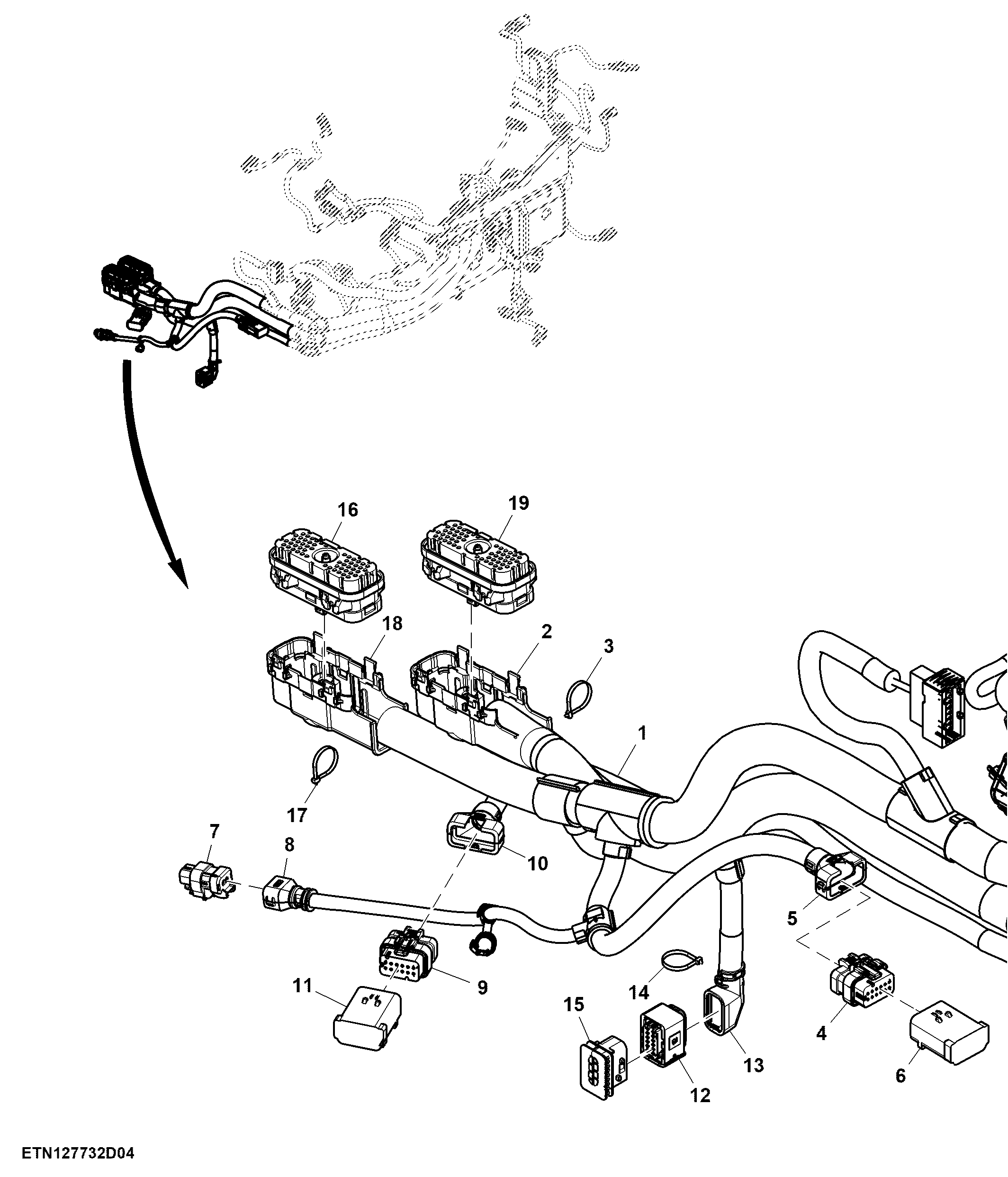

Wiring Harness, Engine (4/4) (673929 - 924525)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL231114	1	Wiring Harness	-
1	AL227999	1	Wiring Harness	-
2	R528122	2	Elec. Connector Accessory	-
3	57M13590	1	Elec. Connector Accessory	-
4	57M9800	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W531, X1053F
4	57M9809	1	Elec. Connector Terminal	Cavity 1
4	57M10631	8	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 7, 9, 10
4	57M9808	2	Elec. Connector Terminal	Cavity 11, 12
4	57M10336	1	Elec. Connector Cavity Plug	Cavity 8
5	57M9844	1	Elec. Connector Accessory	-
6	57M11338	1	Elec. Connector Accessory	-
7	57M9775	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W543, X077F
7	57M10631	2	Elec. Connector Terminal	-
7	57M11333	1	Elec. Connector Accessory	-
8	57M15493	1	Elec. Connector Accessory	-
9	57M9802	1	Elec. Connector Housing	Connection Point between Harnesses W501 and W542, X1253F
9	57M10631	8	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 12
9	57M9808	4	Elec. Connector Terminal	Cavity 4, 5, 10, 11
10	57M9844	1	Elec. Connector Accessory	-
11	57M11338	1	Elec. Connector Accessory	-
12	57M10958	1	Elec. Connector Housing	DEF Dosing Unit, X685F-2, B5501-2
12	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
12	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
12	57M7403	2	Elec. Connector Cavity Plug	Cavity 1, 7
13	57M11439	1	Elec. Connector Accessory	-
14	57M13596	1	Elec. Connector Accessory	-
15	57M13072	1	Elec. Connector Accessory	-
16	57M10321	37	Elec. Connector Terminal	Cavity 1, 5, 6, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 22, 24, 25, 27, 28, 29, 30, 31, 32, 36, 37, 38, 39, 40, 41, 42, 46, 47, 51, 52, 53, 54
16	57M10336	13	Elec. Connector Cavity Plug	Cavity 2, 3, 4, 7, 8, 19, 23, 33, 34, 43, 45, 48, 49
16	57M9808	4	Elec. Connector Terminal	Cavity 26, 35, 44, 50
16	RE538504	1	Elec. Connector Accessory	Engine Control Unit, X021F-2, A021
17	57M13590	2	Elec. Connector Accessory	-
18	R528122	1	Elec. Connector Accessory	-
19	RE538503	1	Elec. Connector Accessory	Engine Control Unit, X021F-1, A021
19	57M9808	10	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 13, 33, 43, 44, 45, 46
19	57M10321	42	Elec. Connector Terminal	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 34, 35, 36, 37, 38, 39, 41, 42, 48, 49, 50, 51, 52, 53, 54,
19	57M10336	2	Elec. Connector Cavity Plug	Cavity 40, 47
