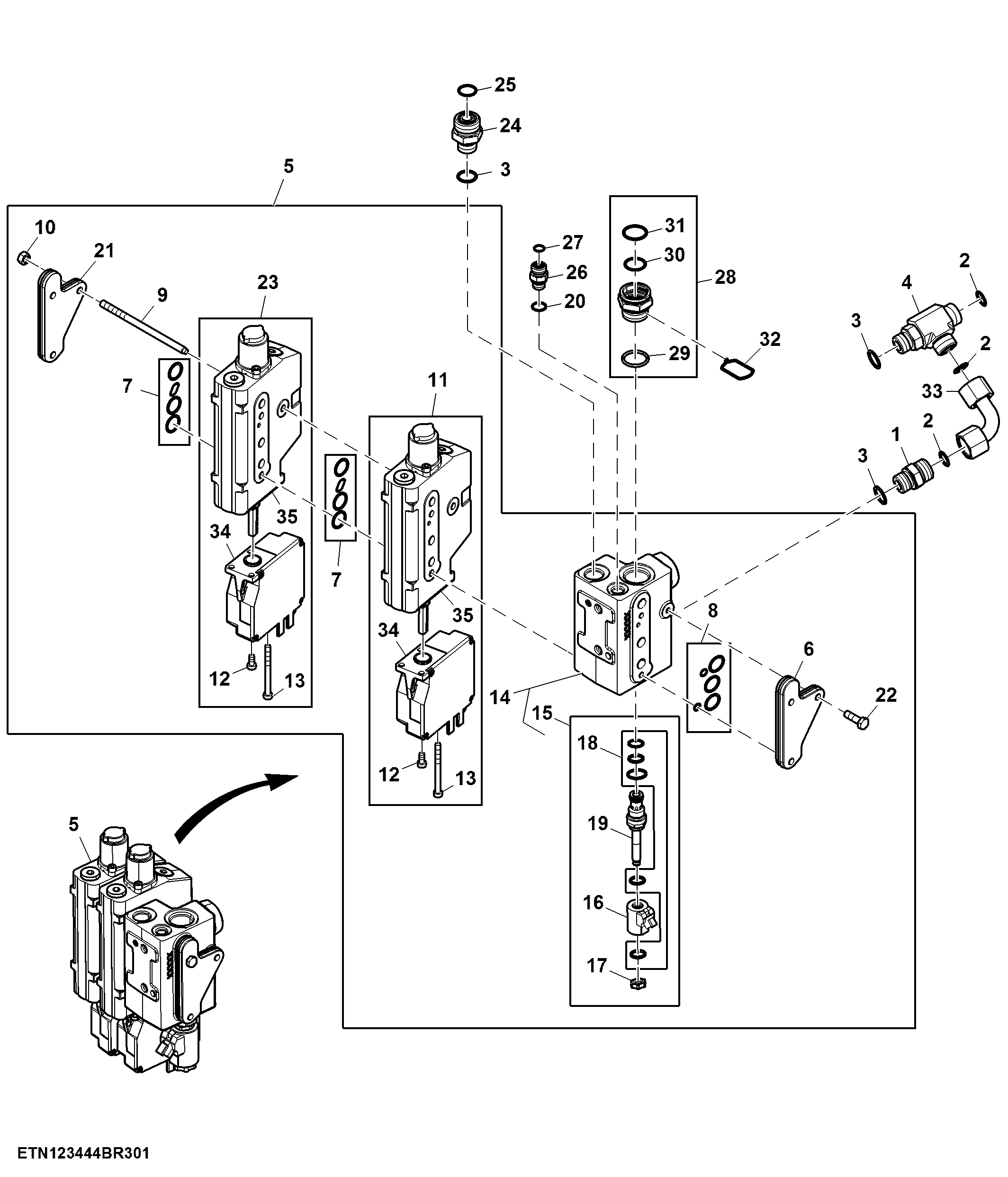

Electrical Midstack SCV, E-SCV X and XIV, W/ Front Hitch (673929 - 937675)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5004	1	Adapter Fitting	-
2	T77932	3	O-Ring	-
3	51M7045	3	O-Ring	19.300 X 2.200 mm
4	38H5030	1	Tee Fitting	-
5	AL217901	1	Valve Stack	-
6	AL206035	1	Cover	-
7	AL207509	2	Seal Kit	-
8	AL207508	1	Seal Kit	-
9	L173497	3	Stud	-
10	14M7273	3	Nut	M8
11	AL227037	1	Valve	-
11	AL217895	1	Valve	For Front Hitch, ORDER AL227037, Position X
12	19M7768	4	Screw	M6 X 16
13	19M8873	2	Screw	M6 X 90
14	AL217904	1	Valve	For Front Hitch, Single or Double Acting Lift Cylinder
15	AL218832	1	Solenoid Valve	-
16	L216304	1	Solenoid Valve Coil	-
17	A94569	1	Nut	-
18	AL216043	1	Seal Kit	-
19	AL216044	1	Solenoid Valve	-
20	51M7041	1	O-Ring	11.300 X 2.200 mm
21	L206084	1	Cover	-
22	19M7407	3	Cap Screw	M8 X 25
23	AL218063	1	Valve	For Couplers at Right and Left of Front Hitch Frame, ORDER AL227035, Position XIV
23	AL227035	1	Valve	-
24	38H5121	1	Adapter Fitting	-
25	T77858	1	O-Ring	-
26	38H5002	1	Adapter Fitting	-
27	T77613	1	O-Ring	-
28	AL168499	1	Fitting	-
29	51M7051	1	O-Ring	26.600 X 2.900 mm
30	51M7098	1	O-Ring	22 X 2 mm
31	51M7099	1	O-Ring	25 X 2.200 mm
32	L157513	1	Clamp	-
33	AL217905	1	Oil Line	-
34	AL223233	2	Motor	-
35	AL217898	1	Selective Control Valve	ORDER AL227037
35	AL218064	1	Selective Control Valve	ORDER AL227035

Electrical Midstack SCV, E-SCV X and XIV, W/ Front Hitch (673929 - 937675)
