Ride Control System, Tool Carrier ( - 15417)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT498319	1	Hydraulic Hose	Hydraulic Control Valve To accumulator
2	AT466954	1	Fitting	-
3	T76938	3	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
4	51M7047	1	O-Ring	23.600 X 2.900 mm
5	AT466955	1	Fitting	-
6	51M7047	1	O-Ring	23.600 X 2.900 mm
7	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	24M7296	6	Washer	10.500 X 30 X 2.500 mm
9	19M7804	4	Screw	M10 X 40
10	AT466476	1	Hyd Actuated Control Valve	Ride Control Valve Components on Separate Page
11	38H5519	1	Adapter Fitting	-
12	51M7045	1	O-Ring	19.300 X 2.200 mm
13	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
14	38H5028	1	Elbow Fitting	-
15	51M7047	1	O-Ring	23.600 X 2.900 mm
16	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
17	38H5152	1	Adapter Fitting	-
18	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
19	51M7047	1	O-Ring	23.600 X 2.900 mm
20	38H5129	1	Elbow Fitting	-
21	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	51M7047	1	O-Ring	23.600 X 2.900 mm
23	AT492319	1	Hydraulic Hose	To Hydraulic Control Valve
24	19M7786	2	Screw	M10 X 30
25	38H5005	1	Adapter Fitting	-
26	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
27	51M7047	1	O-Ring	23.600 X 2.900 mm
28	38H5244	1	Elbow Fitting	-
29	51M7042	1	O-Ring	13.300 X 2.200 mm
30	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
31	RE60700	1	Diagnostic Coupling	-
32	R77175	1	Cover	-
33	T146490	2	Clamp	-
34	14M7400	4	Lock Nut	M10
35	AT465116	1	Hydraulic Hose	To Hydraulic Control Valve
36	AT513930	1	Accumulator Kit	-
36	AT451188	1	Valve Kit	Gas Valve, USE WITH AT513930
36	AT196760	1	Valve Kit	USE WITH AT490169
36	AT490169	1	Accumulator Kit	Ride Control Accumulator, ORDER AT513930
37	38H5013	1	Adapter Fitting	-
38	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
39	51M7048	1	O-Ring	29.600 X 2.900 mm
40	T74416	1	Clamp	SUB FOR T78974
41	19M7865	1	Screw	M8 X 16
42	AT497872	1	Hydraulic Hose	To Hydraulic Control Valve
43	H77698	3	Tie Band	-
44	T146792	2	Safety Sign	Warning Ride Control
45	T225374	1	Label	Accumulator, SUB FOR T180944

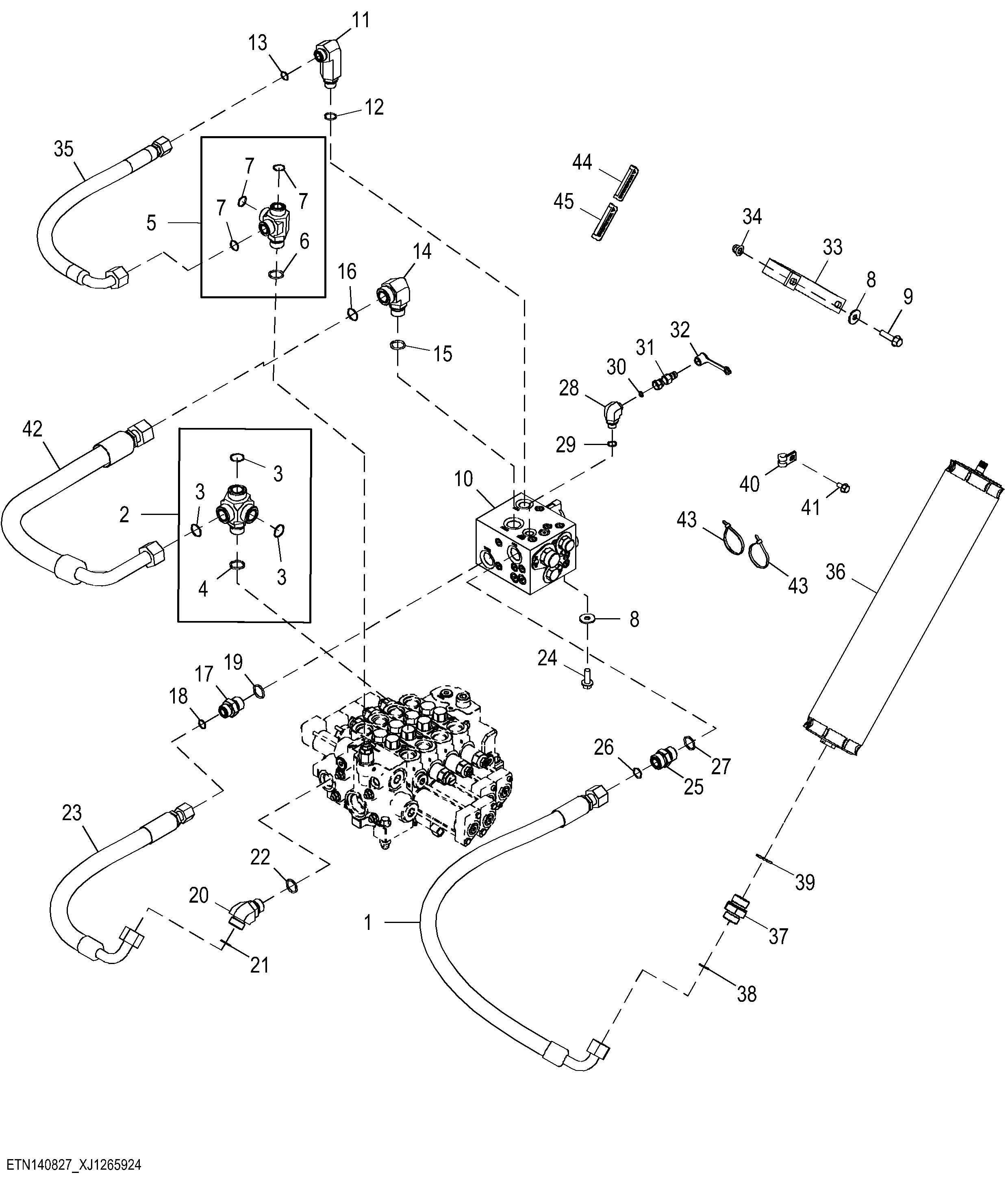

Ride Control System, Tool Carrier ( - 15417)
