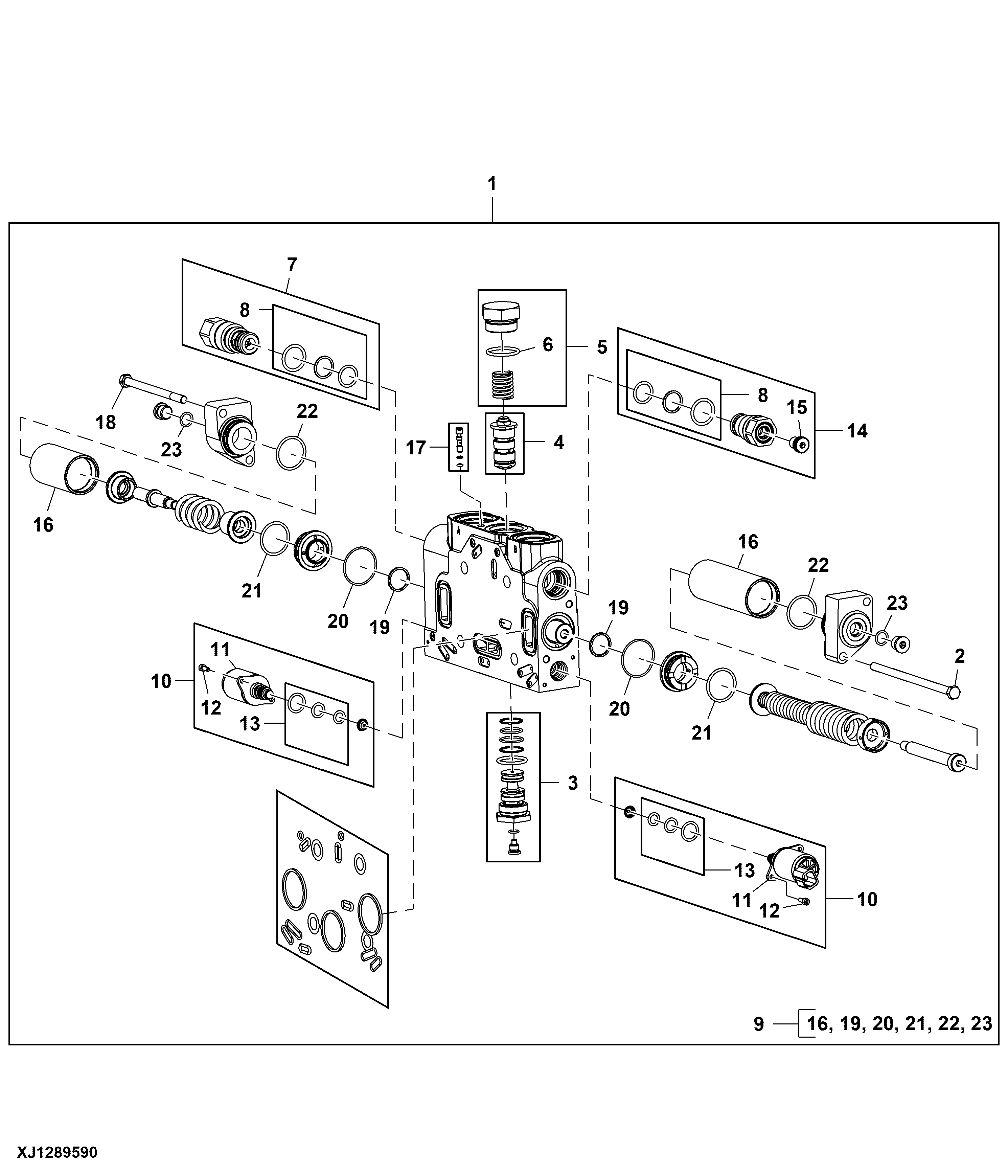

Loader Control Valve, Boom Section, Z-Bar (705368 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT508804	1	Valve Kit	Boom Section
2	19H3782	2	Cap Screw	5/16" X 6-1/4"
3	AT210686	1	Check Valve	Q-MET CHECK ASSEMBLY
4	AT210687	1	Compensator	-
4	A4742R	1	Ball	-
5	AT220831	1	Plug Kit	-
6	R29936	1	O-Ring	-
7	AT221506	1	Hyd Actuated Control Valve	Anti Cavitation
8	AT170991	2	O-Ring Kit	INCLUDES U12547, T154187 AND AT124574
8	U12547	1	O-Ring	-
8	T154187	1	Back-Up Ring	-
8	AT124574	1	O-Ring	-
9	AT488561	1	Seal Kit	-
10	AT488571	2	Valve Kit	INCLUDES AT488589, F308978 AND AT319043
11	AT488589	1	Solenoid Hydraulic Valve	-
12	F308978	1	Cap Screw	-
13	AT319043	1	Seal Kit	-
14	AT509786	1	Adapter Fitting	-
15	64M1016	1	Drain Plug	ALSO ORDER 51M7040
15	51M7040	1	O-Ring	9.300 X 2.200 mm
16	-	2	Part 21	ORDER AT488561
17	T172562	1	Check Valve	Induced Load Check Crtridged
18	T174025	2	Cap Screw	-
19	-	2	Part 24	ORDER AT488561
20	-	2	Part 25	ORDER AT488561
21	-	2	Part 26	ORDER AT488561
22	-	2	Part 27	ORDER AT488561
23	-	2	Part 28	ORDER AT488561

Loader Control Valve, Boom Section, Z-Bar (705368 - )

Нет текстового описания
