Открытый узел

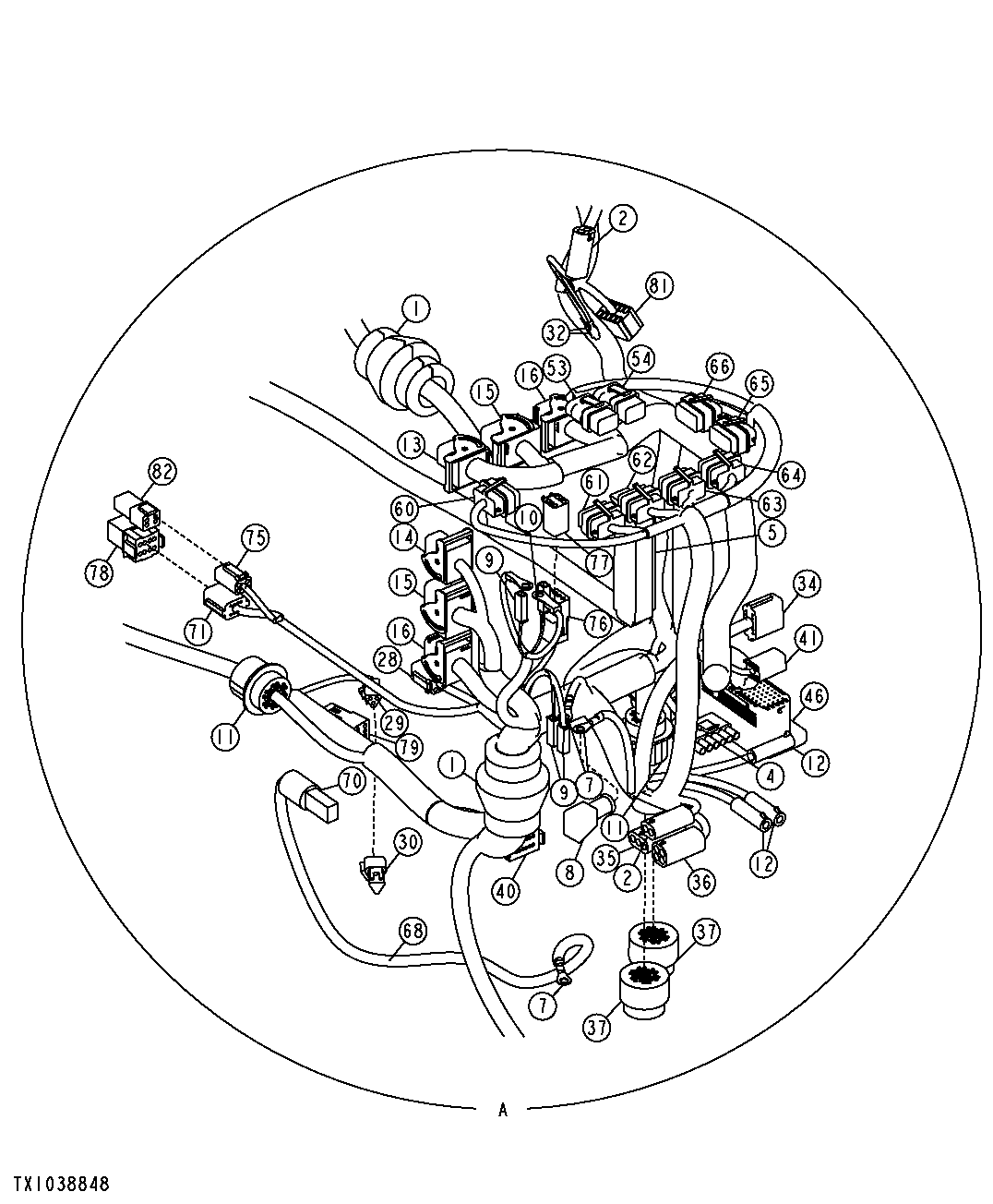

Load Center Wiring Harness (Insert)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T143596	2	Grommet	-
2	R78053	2	Electrical Connector Assy	Power Port To HVAC Harness
2	57M7882	2	Elec. Connector Terminal	To HVAC Harness
2	R78062	2	Elec. Connector Seal	To HVAC Harness
2	R78059	2	Elec. Connector Seal	Power Port
2	57M7251	2	Elec. Connector Terminal	Power Port
3	-	23	Part 8	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	57M7750	1	Elec. Connector Housing	To Transmission Harness Not Illustrated
4	RE12366	1	Electrical Connector Assy	Transmission Control Unit (TCU)
4	R78059	1	Elec. Connector Seal	Green
4	57M7368	4	Elec. Connector Cable Seal	Red
4	R78057	4	Elec. Connector Terminal	-
4	R78060	1	Elec. Connector Terminal	-
4	R78064	1	Elec. Connector Cavity Plug	-
5	57M7400	1	Elec. Connector Seal	-
5	57M7403	1	Elec. Connector Cavity Plug	-
5	-	1	Part 22	-
5	57M7965	48	Elec.Connect Retainer/Clip	-
5	57M7402	48	Elec. Connector Cable Seal	-
5	57M8425	2	Elec. Connector Terminal	-
5	57M9532	2	Elec. Connector Terminal	-
5	57M8419	1	Elec. Connector Housing	Transmission Control Unit (TCU)
7	-	3	Part 24	To HVAC Harness FLC2 Power Cable
8	M135512	2	Boot	-
9	57M9452	4	Elec. Connector Housing	Starter Relay Ignition Relay
9	57M9454	2	Elec. Connector Terminal	14-18 GA
9	57M9456	2	Elec. Connector Terminal	10-12 GA
10	-	2	Part 29	Starter Relay Ignition Relay
11	57M7752	2	Elec. Connector Housing	To Loader Frame Harness To Engine Frame Harness
11	-	31	Part 31	To Engine Frame Harness
11	57M7541	2	Elec. Connector Terminal	To Loader Frame Harness
11	-	23	Part 33	To Loader Frame Harness
11	R78069	6	Elec. Connector Cavity Plug	To Loader Frame Harness
12	R78063	2	Elec. Connector Seal	Gray
12	R78059	1	Elec. Connector Seal	Green
12	R78061	3	Elec. Connector Terminal	-
12	R78052	3	Electrical Connector Assy	Spare Ground Spare Battery Spare Ignition
13	57M8519	1	Elec. Connector Housing	ECU Black
13	57M8530	17	Elec. Connector Terminal	-
13	57M9469	4	Elec. Connector Terminal	-
13	57M8605	7	Elec. Connector Seal	-
14	57M8605	3	Elec. Connector Seal	White
14	57M8604	6	Elec. Connector Seal	Orange
14	57M9469	1	Elec. Connector Terminal	-
14	57M8530	22	Elec. Connector Terminal	-
14	57M8522	1	Elec. Connector Housing	FLC2 Brown
14	57M8528	1	Electrical Connector Cap	-
15	57M8530	26	Elec. Connector Terminal	FLC2
15	57M8529	2	Electrical Connector Cap	-
15	57M8605	14	Elec. Connector Seal	ECU White
15	57M9469	8	Elec. Connector Terminal	FLC2
15	57M8604	1	Elec. Connector Seal	ECU Orange
15	57M8605	31	Elec. Connector Seal	ECU White
15	57M9469	7	Elec. Connector Terminal	ECU
15	57M8530	9	Elec. Connector Terminal	ECU
15	57M8527	2	Elec. Connector Housing	FLC2 ECU Brown
16	57M8605	4	Elec. Connector Seal	FLC2 White
16	57M8528	2	Electrical Connector Cap	-
16	57M8604	1	Elec. Connector Seal	FLC2 Orange
16	57M9469	7	Elec. Connector Terminal	FLC2
16	57M8530	20	Elec. Connector Terminal	FLC2
16	57M8605	4	Elec. Connector Seal	ECU White
16	57M9469	3	Elec. Connector Terminal	ECU
16	57M8530	23	Elec. Connector Terminal	ECU
16	57M8523	2	Elec. Connector Housing	FLC2 ECU Blue
16	57M8604	2	Elec. Connector Seal	ECU Orange
28	57M8012	1	Electrical Connector Assy	10 Amp Converter
28	-	2	Part 69	-
28	57M7542	3	Elec. Connector Terminal	-
28	-	1	Part 71	-
28	57M8013	1	Elec.Connect Locking Device	-
29	-	3	Part 74	-
29	57M8221	1	Elec.Connect Locking Device	-
29	57M8018	1	Electrical Connector Assy	Can Terminator
30	57M8131	1	Electronic Terminator	Can Terminator
32	57M9451	2	Elec. Connector Terminal	Power Port
34	57M8008	1	Electrical Connector Assy	To Cab Roof Harness
34	57M7542	3	Elec. Connector Terminal	-
34	-	8	Part 80	-
34	57M8009	1	Elec.Connect Locking Device	-
35	R78064	1	Elec. Connector Cavity Plug	-
35	R78061	1	Elec. Connector Terminal	-
35	57M7251	1	Elec. Connector Terminal	-
35	R78063	1	Elec. Connector Seal	Gray
35	57M7368	1	Elec. Connector Cable Seal	Red
35	R78054	1	Electrical Connector Assy	To HVAC Harness
36	T138822	1	Electrical Connector Assy	To HVAC Harness
36	R78062	2	Elec. Connector Seal	Blue
36	R78063	1	Elec. Connector Seal	Gray
36	57M7882	1	Elec. Connector Terminal	-
36	R78061	3	Elec. Connector Terminal	-
36	R78059	1	Elec. Connector Seal	Green
37	57M7667	2	Electrical Connector Assy	Bulkhead Adapter
39	57M8021	1	Electrical Connector Assy	CAN Ground Not Illustrated
39	-	2	Part 96	-
39	57M8022	1	Elec.Connect Locking Device	-
40	-	11	Part 99	-
40	57M7682	1	Elec.Connect Locking Device	-
40	R78069	1	Elec. Connector Cavity Plug	-
40	57M7633	1	Electrical Connector Assy	To Engine Frame Harness
41	57M8015	1	Electrical Connector Assy	To Cab Roof Harness
41	-	4	Part 103	-
41	57M8016	1	Elec.Connect Locking Device	-
46	R78069	12	Elec. Connector Cavity Plug	-
46	-	50	Part 109	-
46	57M7541	3	Elec. Connector Terminal	-
46	57M8264	3	Elec. Connector Terminal	-
46	57M9650	1	Electrical Connector Assy	To Engine Harness
46	57M7541	2	Elec. Connector Terminal	-
52	57M7628	1	Electrical Connector Assy	Cap
53	57M8981	1	Elec. Connector Housing	VEC Black
53	57M8966	2	Elec. Connector Terminal	-
53	57M8967	2	Elec. Connector Seal	-
54	57M8982	1	Elec. Connector Housing	VEC Gray
54	57M8877	2	Elec. Connector Terminal	-
54	57M8967	2	Elec. Connector Seal	-
55	57M8023	1	Elec. Connector Housing	CAN Ground Not Illustrated
55	57M7621	1	Elec.Connect Locking Device	-
55	-	2	Part 119	-
60	57M8986	1	Elec. Connector Housing	VEC Blue
60	R78063	1	Elec. Connector Seal	-
60	57M7297	1	Elec. Connector Terminal	-
60	R78064	7	Elec. Connector Cavity Plug	-
61	57M7491	1	Elec. Connector Terminal	-
61	57M7297	7	Elec. Connector Terminal	-
61	R78063	1	Elec. Connector Seal	Gray
61	57M8985	1	Elec. Connector Housing	VEC Green
61	R78059	7	Elec. Connector Seal	Green
62	57M8990	1	Elec. Connector Housing	VEC Brown
62	R78059	5	Elec. Connector Seal	Green
62	R78063	2	Elec. Connector Seal	Gray
62	57M7368	1	Elec. Connector Cable Seal	Red
62	57M7297	6	Elec. Connector Terminal	-
62	57M7491	2	Elec. Connector Terminal	-
63	R78062	1	Elec. Connector Seal	Blue
63	R78064	1	Elec. Connector Cavity Plug	-
63	57M7491	2	Elec. Connector Terminal	-
63	57M7297	5	Elec. Connector Terminal	-
63	R78063	1	Elec. Connector Seal	Gray
63	R78059	5	Elec. Connector Seal	Green
63	57M8984	1	Elec. Connector Housing	VEC Gray
64	57M8988	1	Elec. Connector Housing	VEC Red
64	R78059	7	Elec. Connector Seal	Green
64	R78063	1	Elec. Connector Seal	Gray
64	57M7297	7	Elec. Connector Terminal	-
64	57M7491	1	Elec. Connector Terminal	-
65	57M8983	1	Elec. Connector Housing	VEC Black
65	R78064	5	Elec. Connector Cavity Plug	-
65	R78059	3	Elec. Connector Seal	-
65	57M7297	3	Elec. Connector Terminal	-
66	57M8989	1	Elec. Connector Housing	VEC Orange
66	R78059	3	Elec. Connector Seal	Green
66	R78063	2	Elec. Connector Seal	Gray
66	R78062	1	Elec. Connector Seal	Blue
66	57M7297	3	Elec. Connector Terminal	-
66	57M7491	3	Elec. Connector Terminal	-
66	R78064	2	Elec. Connector Cavity Plug	-
68	AT341748	1	Wiring Harness	FLC2
70	57M9710	1	Elec. Connector Housing	FLC2
71	57M8010	1	Electrical Connector Assy	Machine Information Center, (NA)
75	57M8015	1	Electrical Connector Assy	Machine Information Center, (NA)
76	57M8014	1	Elec. Connector Housing	Tire Pressure Monitoring System, (NA)
77	57M8012	1	Electrical Connector Assy	Cap
78	-	1	Part 165	Cap
79	-	1	Part 166	Rear Object Detection, (NA)
81	-	1	Part 167	Heated Seat Switch, (NA)
82	57M9130	1	Electrical Connector Assy	Cap

Load Center Wiring Harness (Insert)

Нет текстового описания
