Load Center Wiring Harness

Load Center Wiring Harness

Load Center Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Load Center Wiring Harness

Нет текстового описания

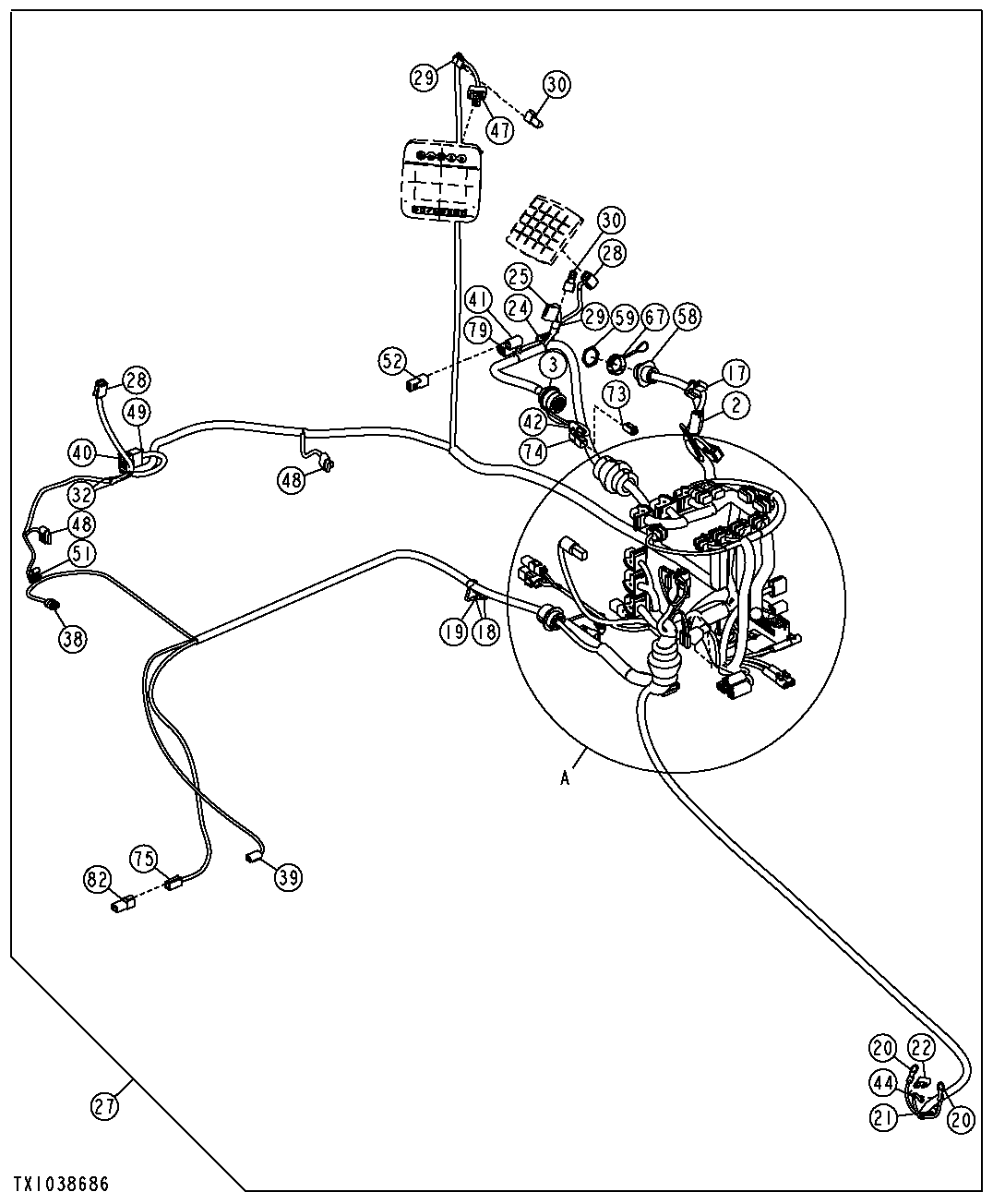

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	R78059	2	Elec. Connector Seal	-
2	R78053	1	Electrical Connector Assy	Power Port
2	57M7251	2	Elec. Connector Terminal	-
3	57M7750	1	Elec. Connector Housing	To Joystick Harness
3	-	14	Part 5	-
3	-	2	Part 6	-
3	R78069	8	Elec. Connector Cavity Plug	-
17	-	1	Part 8	Blower Speed
17	57M7429	2	Elec. Connector Terminal	-
17	57M7512	3	Elec. Connector Terminal	-
18	-	2	Part 11	Ground
19	-	1	Part 12	Ground
20	-	2	Part 13	Ground
21	-	1	Part 14	Starter Suppression
21	-	1	Part 15	-
21	-	1	Part 16	-
22	AT103399	1	Diode	5 A, Starter Suppression
24	57M8010	1	Electrical Connector Assy	Auxiliary Single Lever Controller
24	-	8	Part 19	-
24	57M8011	1	Elec.Connect Locking Device	-
25	57M9653	1	Electrical Connector Assy	To Joystick Harness
25	57M9658	1	Elec.Connect Locking Device	-
25	57M7684	12	Elec. Connector Terminal	-
27	AT366945	1	Wiring Harness	Load Center, (SUB FOR AT339415)
28	57M8012	2	Electrical Connector Assy	To Wiper Motor Jumper Harness Sealed Switch Module (SSM)
28	57M7542	1	Elec. Connector Terminal	To Wiper Motor Jumper Harness
28	-	4	Part 27	To Wiper Motor Jumper Harness
28	R78069	1	Elec. Connector Cavity Plug	To Wiper Motor Jumper Harness
28	-	6	Part 29	Sealed Switch Module (SSM)
28	57M8013	2	Elec.Connect Locking Device	-
29	57M8018	2	Electrical Connector Assy	Can Terminator
29	57M8221	2	Elec.Connect Locking Device	-
29	-	6	Part 32	-
30	57M8131	2	Electronic Terminator	Can Terminator
32	57M9451	2	Elec. Connector Terminal	Power Port
38	57M7796	1	Elec. Connector Housing	Accumulator Charge Pressure
38	R104701	3	Elec. Connector Terminal	-
39	57M8022	1	Elec.Connect Locking Device	-
39	57M7542	1	Elec. Connector Terminal	-
39	57M8021	1	Electrical Connector Assy	Pre-Cleaner
39	-	1	Part 40	-
40	57M7633	1	Electrical Connector Assy	To Steering Column Harness
40	-	12	Part 43	-
40	57M7682	1	Elec.Connect Locking Device	-
41	57M8015	1	Electrical Connector Assy	5th Function Controller
41	-	3	Part 46	-
41	R78069	1	Elec. Connector Cavity Plug	-
41	57M8016	1	Elec.Connect Locking Device	-
42	R78059	2	Elec. Connector Seal	-
42	R78060	2	Elec. Connector Terminal	-
42	RE12363	1	Electrical Connector Assy	Seat Adjustment
44	-	1	Part 52	Starter Excitation
47	57M7262	1	Elec. Connector Housing	Display Monitor
47	R104846	7	Elec. Connector Terminal	-
47	-	7	Part 55	-
47	57M7259	3	Elec. Connector Seal	-
47	57M7281	1	Elec.Connect Locking Device	-
48	57M8906	2	Elec. Connector Housing	Throttle Position Sensor Clutch Cutoff Sensor
48	57M7259	6	Elec. Connector Seal	-
48	57M9572	6	Elec. Connector Terminal	-
49	57M8439	1	Elec. Connector Accessory	-
51	57M7328	1	Elec. Connector Housing	Differential Lock Switch
51	R104846	2	Elec. Connector Terminal	-
51	-	2	Part 64	-
51	57M7289	1	Elec.Connect Locking Device	-
52	57M7628	1	Electrical Connector Assy	Diagnostic Port Dust Cap
58	-	6	Part 68	-
58	R78069	3	Elec. Connector Cavity Plug	-
58	57M9183	1	Elec. Connector Housing	Diagnostic Receptacle
59	-	1	Part 70	-
67	57M7477	1	Electrical Connector Cap	-
73	57M8021	1	Electrical Connector Assy	Cap
74	57M8023	1	Elec. Connector Housing	Heated Seat, (NA)
75	57M8015	1	Electrical Connector Assy	Left Joystick, (NA)
79	-	1	Part 75	3-Button Switch, (NA)
82	57M9130	1	Electrical Connector Assy	Cap
