Joystick Pilot Controller With Forward Neutral Reverse (FNR) and Auxiliary Lever

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H327	7	Lock Washer	3/4"
2	12H328	1	Lock Washer	7/8"
3	14M7397	4	Lock Nut	M6
4	19M7866	2	Screw	M8 X 20
5	21M7285	4	Screw	M6 X 12
6	38H1023	2	Tee Fitting	-
6	38H1023	1	Tee Fitting	-
7	R26448	10	O-Ring	-
8	T77613	13	O-Ring	-
8	T77613	12	O-Ring	-
9	38H1160	2	Adapter Fitting	-
10	62H1001	6	Adapter Fitting	SUB FOR 63H1001
11	AT336507	6	Hydraulic Hose	Fabricate
12	AT341527	1	Plate	-
13	AT342616	1	Oil Line	-
14	AT342617	1	Oil Line	-
15	AT363800	1	Hydraulic Hose	Fabricate, SUB FOR AT344124
16	AT344125	1	Hydraulic Hose	Fabricate
16	AT363800	1	Hydraulic Hose	Fabricate
17	T77857	1	O-Ring	-
17	T77857	2	O-Ring	-
18	AT345515	1	Hydr./Pilot Control Valve	Auxiliary Components On Separate Page
19	AT352891	1	Plate	-
20	AT356032	1	Hydr./Pilot Control Valve	With Forward Neutral Reverse (FNR) Components On Separate Page
20	AT362746	1	Hydr./Pilot Control Valve	With Forward Neutral Reverse (FNR)
21	T125994	2	Plug	-
22	T196079	2	Nut	-
23	T197182	1	Label	With Forward Neutral Reverse (FNR)
25	T230554	1	Conduit	-
26	-	1	Part 30	MAKE FROM T66419, CTL 0.671 m (2.2 ft)
27	T78716	1	Nut	20.625 mm (13/16")
28	T81029	7	Nut	17.475 mm (11/16")
29	T247427	1	Label	Auxiliary Lever
30	R44302	1	Tie Band	-
31	38H1642	1	Adapter Fitting	-

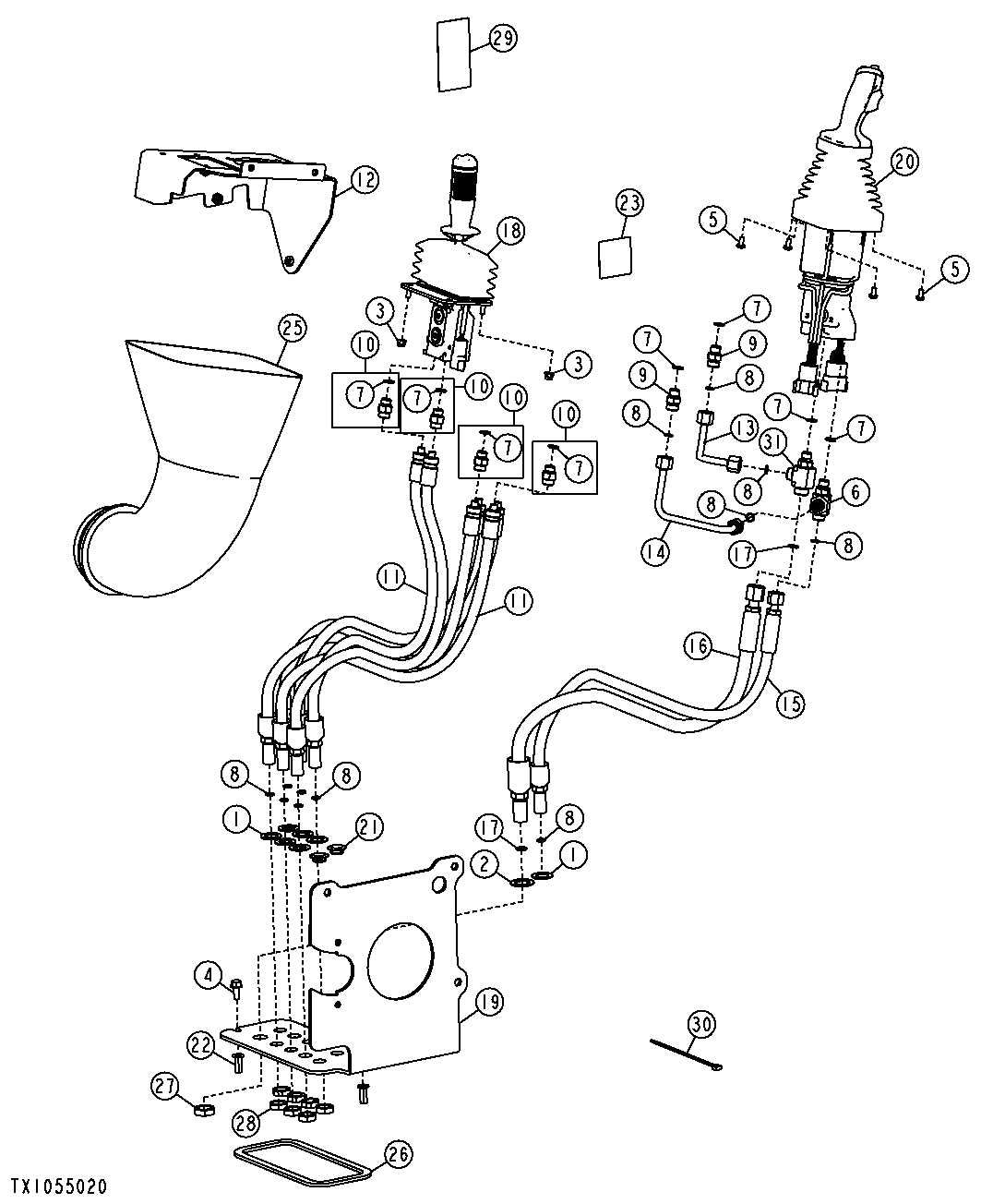

Joystick Pilot Controller With Forward Neutral Reverse (FNR) and Auxiliary Lever
