Heavy Duty LED Marker Lights and LED Lights (Powerllel)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT493201	2	Support	-
1	AT210246	2	Support	ORDER AT493201
2	14M7400	5	Lock Nut	M10
3	24M7240	2	Washer	13 X 25 X 3 mm
4	14M7299	2	Flange Nut	M12
5	24M7296	6	Washer	10.500 X 30 X 2.500 mm
6	19M7806	6	Screw	M10 X 50
7	T75276	2	Clamp	-
8	57M10310	2	Elec. Connector Accessory	-
9	19M7868	2	Screw	M8 X 30
10	14M7396	2	Lock Nut	M8
11	AT444932	2	Floodlamp	-
12	03M7198	2	Bolt	M12 X 30
13	AT465217	2	Lamp	-
14	T414004	2	Grommet	USE WITH AT493201
15	AT494005	1	Wiring Harness	USE WITH AT465217
16	R78065	3	Elec. Connector Terminal	-
16	57M9734	1	Elec. Connector Housing	Front Turn/ Marker Light
17	R78054	1	Electrical Connector Assy	To Loader Frame
17	R78061	3	Elec. Connector Terminal	-
17	57M9218	3	Elec. Connector Seal	-
18	AT494005	1	Wiring Harness	USE WITH AT465217
19	57M9734	1	Elec. Connector Housing	Front Turn/ Marker Light
19	R78065	3	Elec. Connector Terminal	-
20	R78061	3	Elec. Connector Terminal	-
20	57M9218	3	Elec. Connector Seal	-
20	R78054	1	Electrical Connector Assy	To Loader Frame
21	AT448279	2	Wiring Harness	-
22	57M8021	1	Electrical Connector Assy	-
23	57M8022	1	Elec.Connect Locking Device	-
24	57M11230	1	Elec. Connector Accessory	-
25	RE12364	1	Electrical Connector Assy	-
26	AT362406	2	Lamp	Front Turn / Marker, ORDER AT465217
27	R44302	5	Tie Band	-

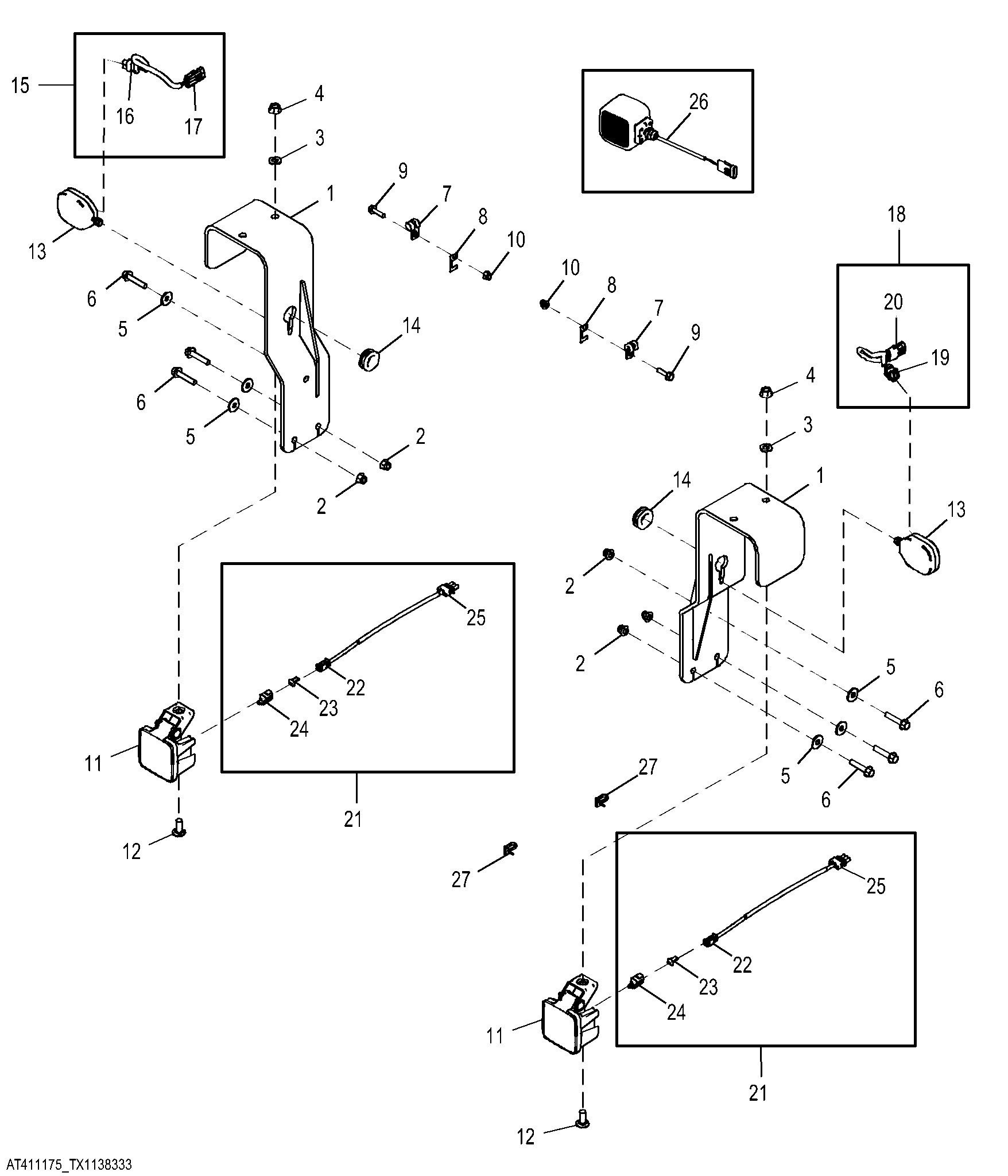

Heavy Duty LED Marker Lights and LED Lights (Powerllel)

Нет текстового описания
