Открытый узел

Coupler Forks

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

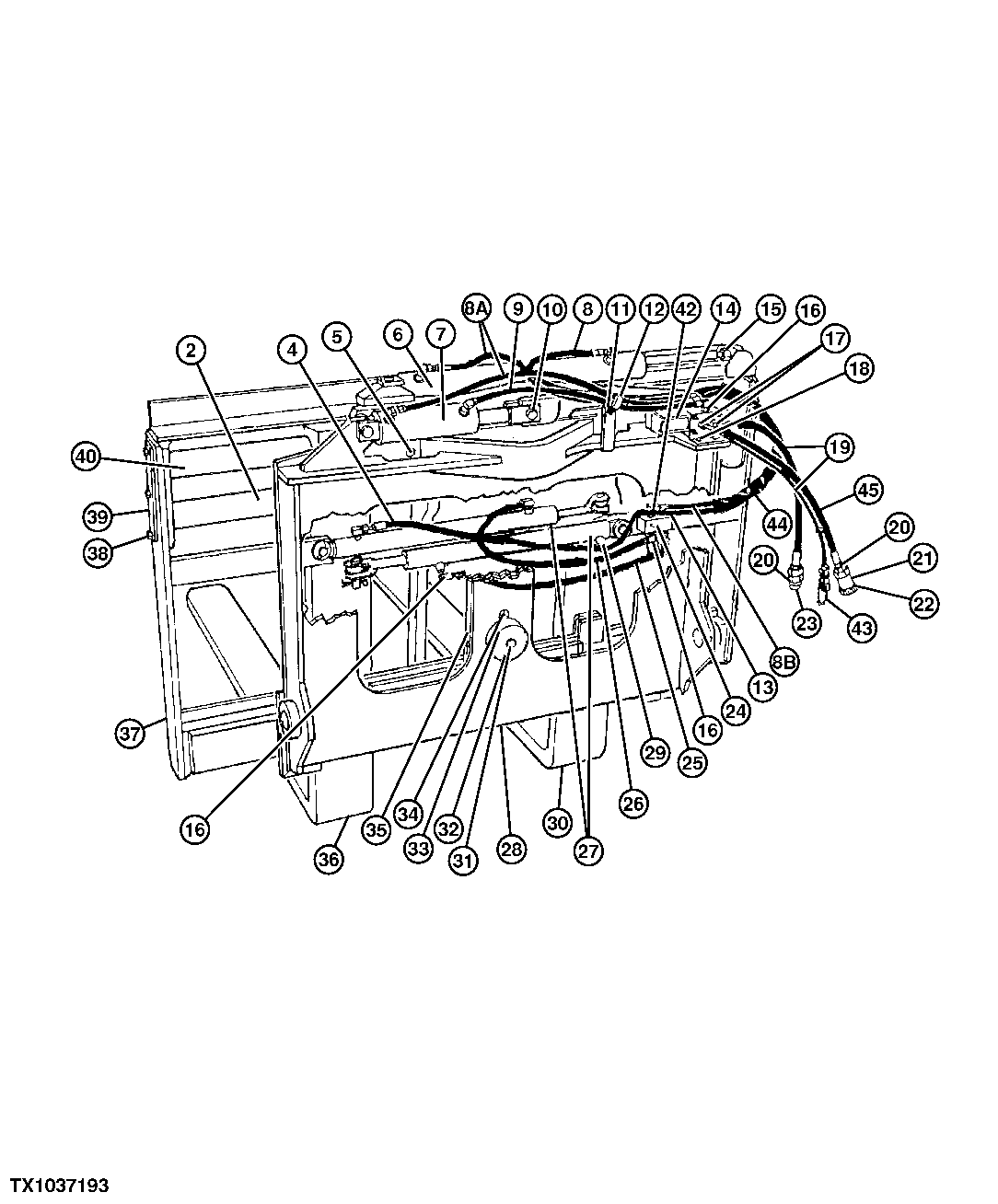

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-	1	Part 1	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Tine, (ORDER 40704540)
4	-	1	Part 2	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Tine Cylinder Includes O-Ring, (ORDER 54001320)
5	-	2	Part 3	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 15704548)
5	-	2	Part 4	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 15705312)
5	-	4	Part 5	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 5/8�? X 4�?, (ORDER 60001169)
5	-	4	Part 6	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 5/8�?, (ORDER 60481400)
5	-	4	Part 7	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 5/8�?, (ORDER 60680220)
6	-	1	Part 8	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Carriage, (ORDER 50001197)
7	-	1	Part 9	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Oscillation, (ORDER 50001198)
8	-	1	Part 10	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Carriage Cylinder Includes O-Ring, (ORDER 54001700)
9	-	1	Part 13	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Oscillation Cylinder Includes O-Ring, (ORDER 54001699)
10	-	4	Part 16	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3/16�? X 1 1/2�?, Tine Pin Retainer, (ORDER 62641014)
10	-	3	Part 15	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�?, (ORDER 62640100)
10	-	7	Part 14	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�? X 2 1/2�?, (ORDER 62001031)
11	-	1	Part 17	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3/8�? X 1 1/4�?, (ORDER 60661102)
11	-	1	Part 18	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3/8�? X 1 1/2�?, (ORDER 60660297)
11	-	1	Part 19	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3/8�?, (ORDER 60670140)
11	-	1	Part 20	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3/8�?, (ORDER 60691140)
12	-	3	Part 21	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 62800683)
13	-	1	Part 22	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 54001319)
14	-	1	Part 23	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 3-way Diverter, (ORDER 50001200)
15	-	2	Part 24	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�?, Carriage Cylinder, (ORDER 60670280)
15	-	2	Part 25	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�?, Carriage Cylinder, (ORDER 60675283)
16	-	5	Part 26	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 52800730)
17	-	4	Part 27	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Elbow Includes O-Ring, (ORDER 52001586)
18	-	2	Part 30	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�? X 1 3/4�?, (ORDER 60660190)
18	-	6	Part 29	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/2�?, (ORDER 60690100)
18	-	4	Part 28	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�? X 1�?, (ORDER 60660175)
18	-	6	Part 31	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�?, (ORDER 60680100)
19	-	2	Part 32	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Quick Disconnect Includes O-Ring, (ORDER 54001321)
20	-	2	Part 33	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 52800748)
21	-	1	Part 34	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Male Female, (ORDER 52800749)
22	-	1	Part 35	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 52800633)
23	-	1	Part 36	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 52800632)
24	-	1	Part 37	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 50600559)
24	-	2	Part 38	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�? X 2 1/4�?, (ORDER 60660190)
24	-	6	Part 39	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�?, (ORDER 60680100)
24	-	2	Part 40	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/4�?, (ORDER 60690100)
25	-	1	Part 41	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 54001321)
26	-	1	Part 42	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 54001324)
27	-	2	Part 43	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Tine Shift, (ORDER 50001196)
28	-	1	Part 44	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Female End, (ORDER 15009538)
29	-	1	Part 45	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 52800744)
30	-	1	Part 46	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (RH) (ORDER 70001049)
31	-	1	Part 49	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�?, (ORDER 60675280)
31	-	2	Part 48	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�?, (ORDER 60691280)
31	-	1	Part 47	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1�? X 9�?, (ORDER 60661100)
32	-	2	Part 50	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 15009292)
33	-	1	Part 51	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Oscillation, (ORDER 40001287)
34	-	4	Part 52	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 452160)
35	-	1	Part 53	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Oscillation, (ORDER 15009537)
36	-	1	Part 54	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (LH) (ORDER 70001048)
37	-	1	Part 55	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Carriage, (ASSY) (ORDER 15009536)
38	-	3	Part 56	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/2�? X 1 1/4�?, (ORDER 60668802)
38	-	3	Part 57	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) 1/2�?, (ORDER 60680180)
39	-	1	Part 58	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 15704544)
40	-	1	Part 59	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Carriage, (ORDER 40704541)
42	-	1	Part 60	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Includes O-Ring, (ORDER 52800760)
43	-	1	Part 61	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 58001041)
44	-	1	Part 62	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 13352100)
45	-	6	Part 63	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) (ORDER 62640051)
8A	-	2	Part 11	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Oscillation Cylinder Carriage Cylinder Includes O-Ring, (ORDER 54001699)
8B	-	1	Part 12	(Order from ACS Industries, Inc. (www.acs-coupler.com) Phone: 1-800-321-2348 (Cage Code: 4P217)) Flow Divider to Valve Includes O-Ring, (ORDER 54001318)

Coupler Forks

Нет текстового описания
