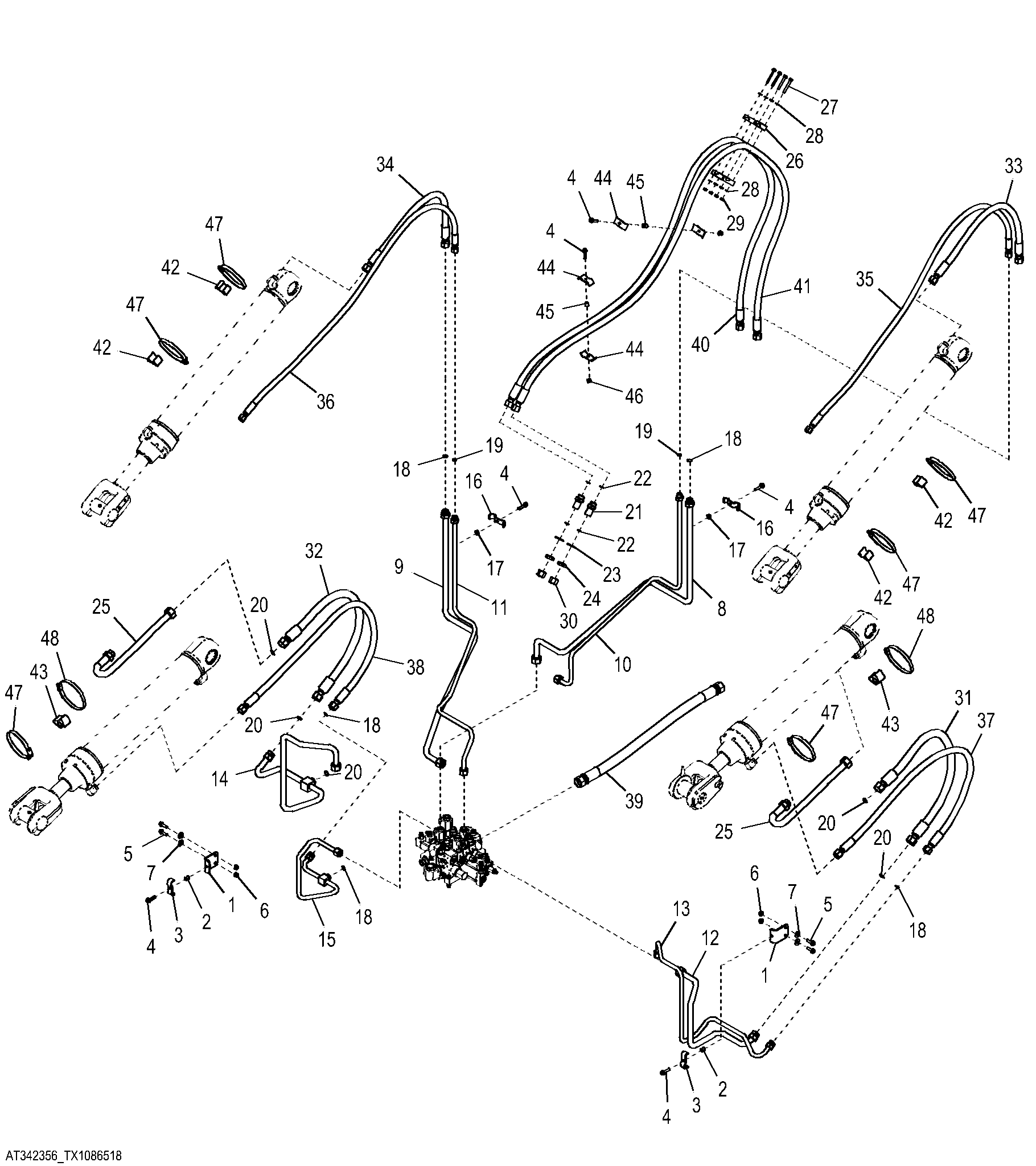

Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool Control Valve) ( - 649772)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT224318	2	Bracket	-
2	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
3	T167921	2	Clamp	-
4	19M7805	6	Screw	M10 X 45
5	19M7835	4	Screw	M10 X 35
6	14M7296	4	Flange Nut	M10
7	24M7296	4	Washer	10.500 X 30 X 2.500 mm
8	AT359951	1	Oil Line	-
9	AT359952	1	Oil Line	SUB FOR AT343715
10	AT359953	1	Oil Line	SUB FOR AT343714
11	AT359954	1	Oil Line	-
12	AT308284	1	Oil Line	-
13	AT308286	1	Oil Line	-
14	AT308419	1	Oil Line	-
15	AT308447	1	Oil Line	SUB FOR AT343709
16	T170143	2	Clamp	-
17	T13976	2	Bushing	11.506 X 20.625 X 10.668 mm (29/64" X 13/16" X 0.420")
18	T77858	5	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
20	T76938	5	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
21	38H1276	2	Adapter Fitting	-
22	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	T174275	2	Lock Washer	30.950 mm (1-7/32")
24	T78707	2	Nut	30.175 mm (1-3/16")
25	AT210400	2	Oil Line	-
26	T147188	4	Clamp	-
27	19M7803	4	Screw	M8 X 70
28	24M7238	8	Washer	8.700 X 17 X 2 mm
29	14M7298	4	Flange Nut	M8
30	38H1418	2	Fitting	-
31	AT219783	1	Hydraulic Hose	36.5252" X 1169 mm (46") X 36.5252"
32	AT219783	1	Hydraulic Hose	36.5252" X 1169 mm (46") X 36.5252"
33	AT227536	1	Hydraulic Hose	30.1752" X 1000 mm (39-1/4") X 30.1752"
34	AT227536	1	Hydraulic Hose	30.1752" X 1000 mm (39-1/4") X 30.1752"
35	AT306599	1	Hydraulic Hose	1" X 2000 mm (78-3/4") X 1"
36	AT306599	1	Hydraulic Hose	1" X 2000 mm (78-3/4") X 1"
37	AT306812	1	Hydraulic Hose	30.1752" X 1590 mm (62-1/2") X 30.1752"
38	AT306812	1	Hydraulic Hose	30.1752" X 1590 mm (62-1/2") X 30.1752"
39	AT364885	1	Hydraulic Hose	SUB FOR AT345001
39	AT421688	1	Hydraulic Hose	Fabricate
39	AT366773	1	Hydraulic Hose	Fabricate
40	AT346960	1	Hydraulic Hose	30.1752" X 3162 mm (124-1/2") X 30.1752", SUB FOR AT343713
41	AT346960	1	Hydraulic Hose	30.1752" X 3162 mm (124-1/2") X 30.1752", SUB FOR AT343713
42	T105773	4	Guide	-
43	T102005	2	Guide	-
44	U46753	4	Hose Clamp	-
45	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
46	14M7400	2	Lock Nut	M10
47	TY22493	6	Hose Clamp	-
48	TY22494	2	Hose Clamp	-

Boom and Bucket Cylinder Hydraulics (Tool Carrier) (3-Spool Control Valve) ( - 649772)
