Two Spool Loader Control Valve (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT314008	1	Valve	Inlet Valve Section Components On Separate Page
1	AT317146	1	Hyd Actuated Control Valve	Assembly
1	AT314048	4	Rod	Two Spool Stud Assembly
1	AT314022	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Separate Page
1	AT317149	1	Valve	Boom Valve Section Components On Separate Page
1	AT314009	1	Valve	Bucket Valve Section Components On Separate Page
2	38H1090	1	Elbow Fitting	-
3	U13639	1	O-Ring	-
4	T78784	1	O-Ring	-
5	38H1160	4	Adapter Fitting	-
5	38H1160	3	Adapter Fitting	-
6	T77613	3	O-Ring	-
7	R26448	3	O-Ring	-
8	38H1026	1	Tee Fitting	-
9	U12547	1	O-Ring	-
10	T77858	2	O-Ring	-
11	AT317129	1	Tee Fitting	-
12	T76938	2	O-Ring	-
13	U12547	1	O-Ring	-
14	38H1216	1	Adapter Fitting	-
14	38H1196	1	Adapter Fitting	-
15	T78612	1	O-Ring	-
16	R29936	1	O-Ring	-
17	R27218	2	Fitting Plug	-
18	R26448	2	O-Ring	-
19	T210479	1	Fitting	-
20	T76938	1	O-Ring	-
21	U12547	1	O-Ring	-
22	38H1215	1	Adapter Fitting	-
23	T77858	1	O-Ring	-
24	U12547	1	O-Ring	-
25	38H1004	1	Elbow Fitting	-
26	R26448	1	O-Ring	-
27	T77613	7	O-Ring	-
27	T77613	1	O-Ring	-
28	AT353746	2	Check Valve	-
29	T77613	1	O-Ring	-
30	R26448	1	O-Ring	-
31	AT467557	1	Bracket	-
32	T379234	1	Plate	-
33	T379235	1	Plate	-
34	19M7775	2	Screw	M6 X 16
35	19M7808	2	Screw	M10 X 65
36	14M7400	3	Lock Nut	M10
37	24M7239	1	Washer	10.700 X 21 X 2.500 mm
38	19M7807	1	Screw	M10 X 60

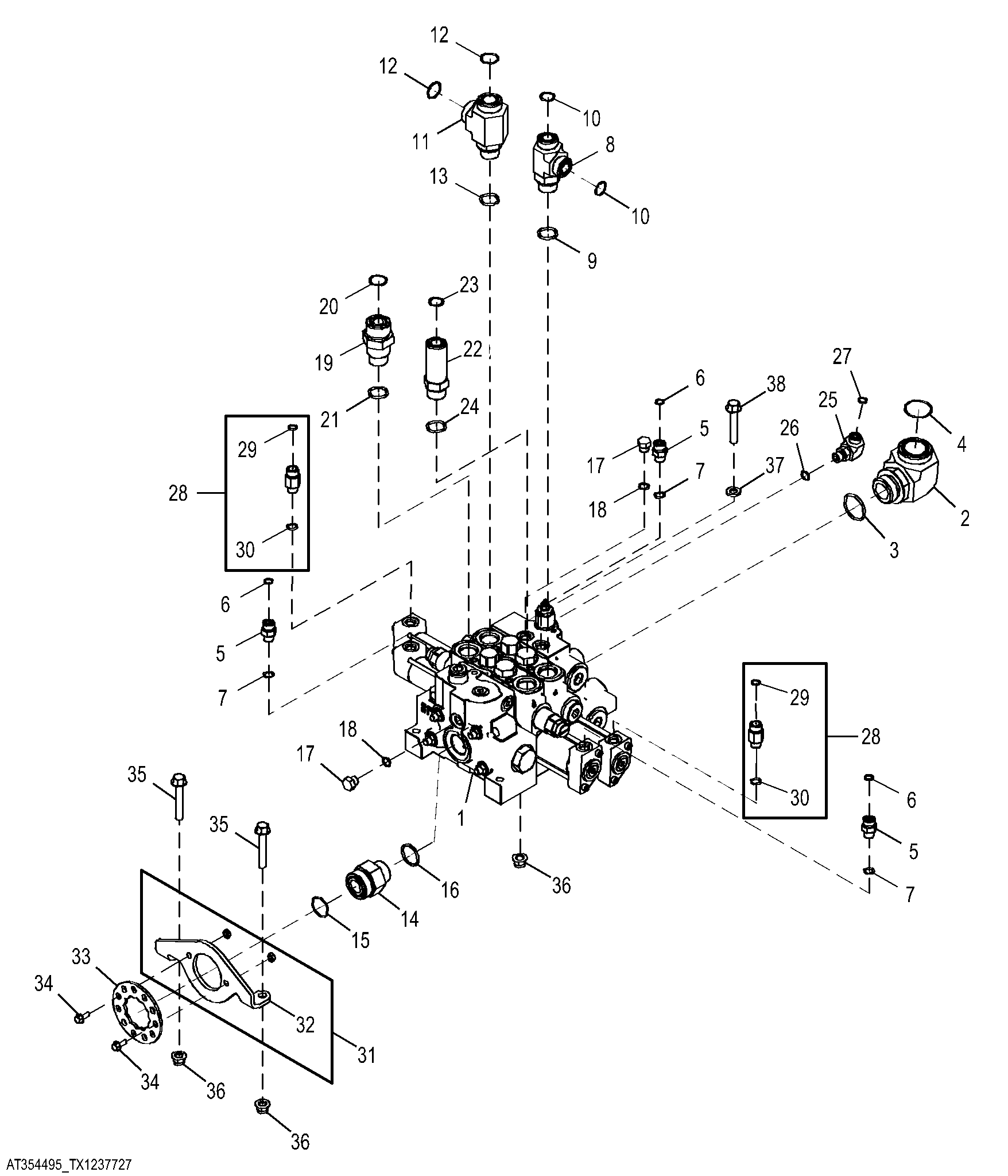

Two Spool Loader Control Valve (Powerllel™)
