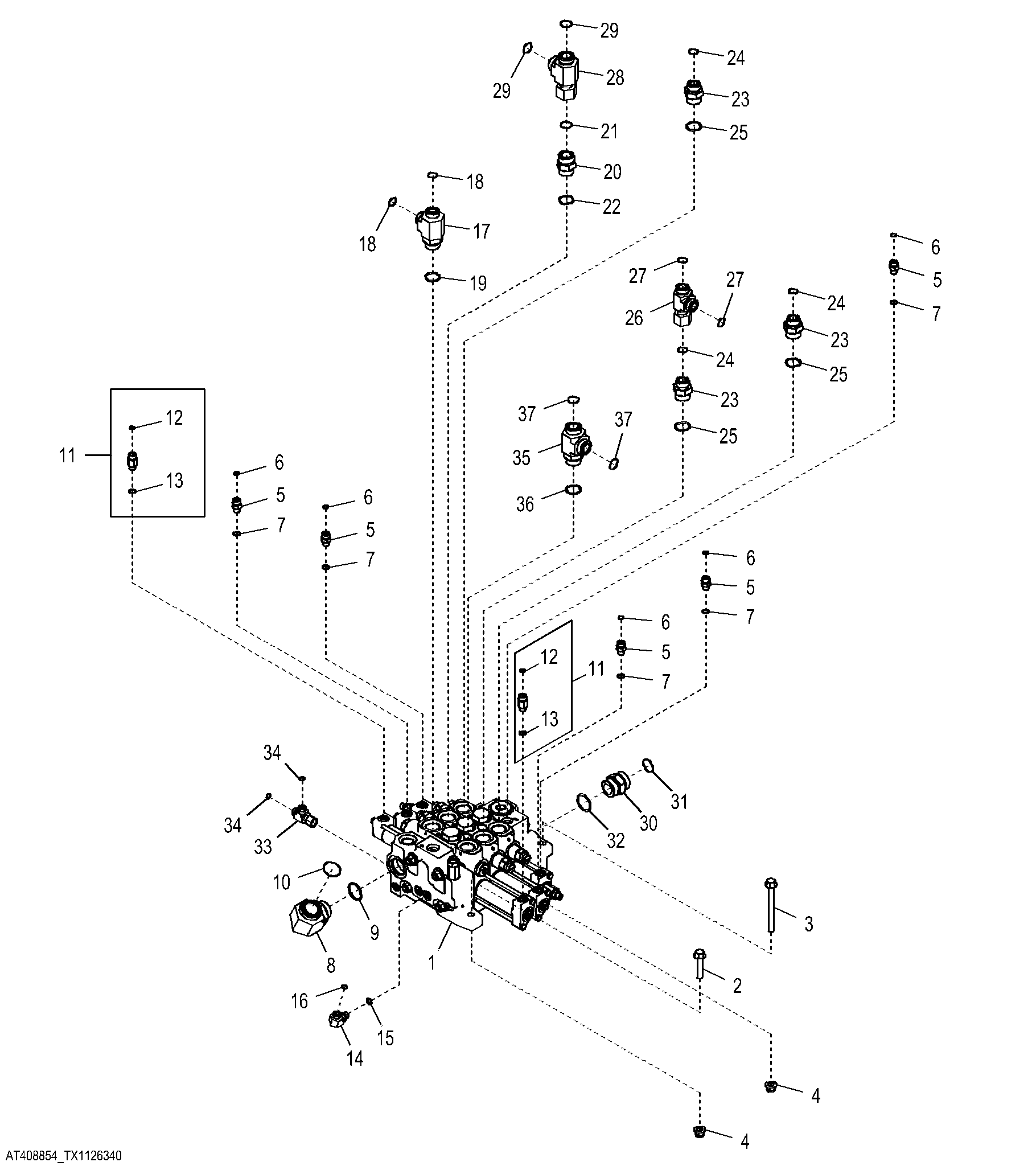

Three Spool Loader Control Valve (Tool Carrier) (649773 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT409163	1	Manifold	Inlet Valve Section Components On Seperate Page
1	AT409165	1	Spool Valve	ASSY
1	AT220174	1	Solenoid Hydraulic Valve	Auxiliary Valve Section Components On Seperate Page
1	AT223639	1	Spool Valve	Bucket Valve Section Components On Seperate Page
1	AT409164	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Seperate Page
1	AT224770	1	Hyd Actuated Control Valve	Boom Valve Section Components On Seperate Page
2	19M7815	1	Screw	M12 X 60
3	19M7838	2	Screw	M12 X 130
4	14M7401	3	Lock Nut	M12
5	38H1160	5	Adapter Fitting	-
6	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	R26448	5	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	38H1090	1	Elbow Fitting	-
9	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
10	T78784	1	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
11	AT353746	2	Check Valve	-
12	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
13	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	38H1004	1	Elbow Fitting	-
15	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	38H1438	1	Tee Fitting	-
18	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
19	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
20	38H1164	1	Adapter Fitting	-
21	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
22	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
23	38H1194	3	Adapter Fitting	-
24	T77858	3	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
25	R29936	3	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
26	38H1033	1	Tee Fitting	-
27	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
28	38H1002	1	Tee Fitting	-
29	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
30	38H1165	1	Adapter Fitting	-
31	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
32	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
33	38H1038	1	Tee Fitting	-
34	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
35	38H1027	1	Tee Fitting	-
36	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
37	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")

Three Spool Loader Control Valve (Tool Carrier) (649773 - )

Нет текстового описания
