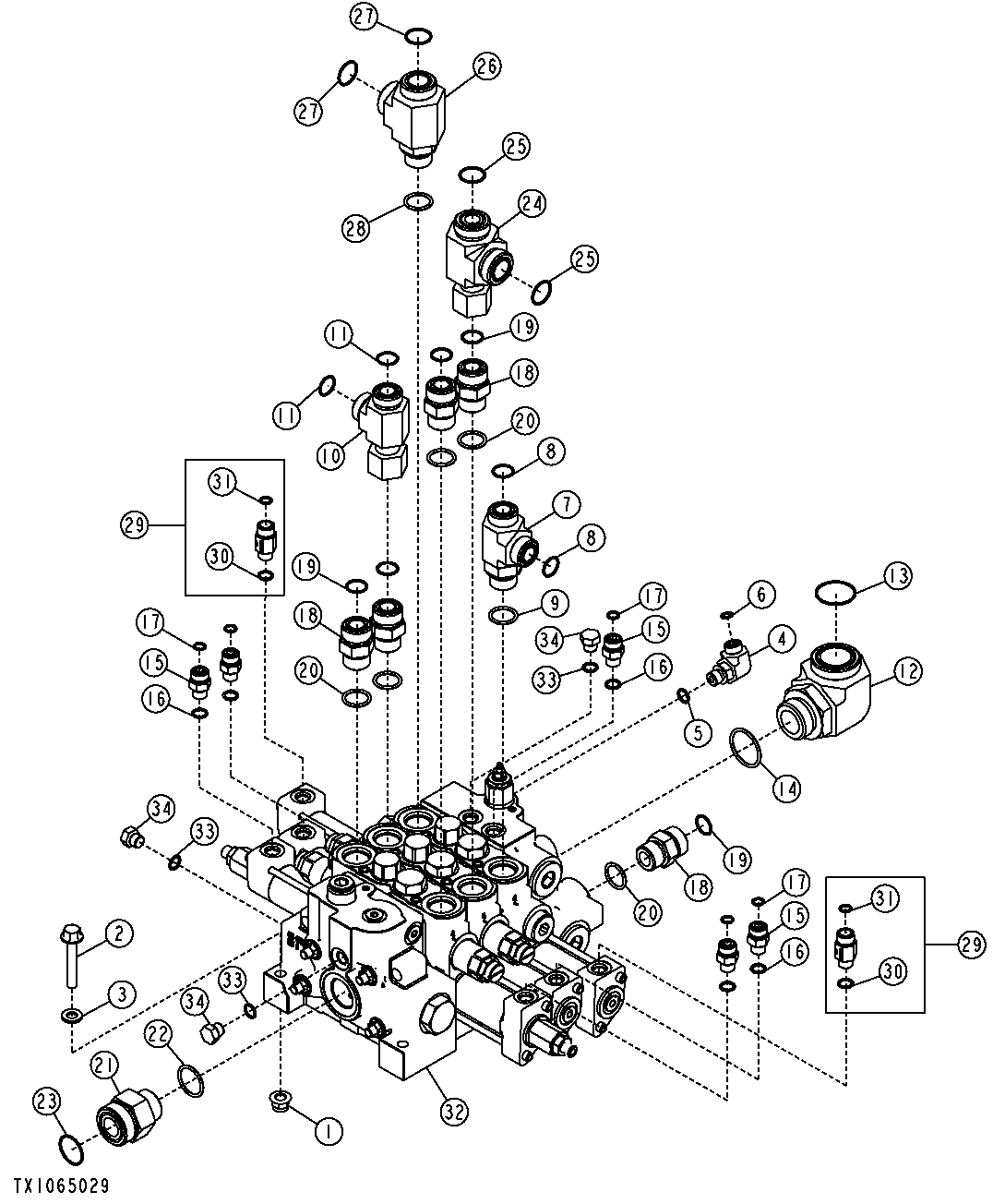

Three Spool Loader Control Valve (Tool Carrier) ( - 649772)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7400	3	Lock Nut	M10
2	19M7807	3	Screw	M10 X 60
3	24M7239	3	Washer	10.700 X 21 X 2.500 mm
4	38H1004	1	Elbow Fitting	-
5	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	38H1026	1	Tee Fitting	-
8	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1033	1	Tee Fitting	-
11	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
12	38H1090	1	Elbow Fitting	-
13	T78784	1	O-Ring	37.821 X 1.778 mm (1.489" X 0.070")
14	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
15	38H1160	5	Adapter Fitting	-
16	R26448	5	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	38H1163	5	Adapter Fitting	-
19	T77858	5	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	U12547	5	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
21	38H1196	1	Adapter Fitting	-
22	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
23	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
24	38H1467	1	Tee Fitting	-
25	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
26	AT317129	1	Tee Fitting	-
27	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
28	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
29	AT353746	2	Check Valve	-
30	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
31	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
32	AT369985	1	Hyd Actuated Control Valve	(ASSY)
32	AT105438	4	Rod	Three Spool Stud Assembly
32	AT314008	1	Valve	Inlet Valve Section Components On Separate Page
32	AT317149	1	Valve	Boom Valve Section Components On Separate Page
32	AT362507	1	Valve	Bucket Valve Section Components On Separate Page
32	AT347888	1	Valve	Auxiliary Valve Section Components On Separate Page
32	AT314022	1	Flow Control Hyd. Valve	Outlet Valve Section Components On Separate Page
33	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
34	R27218	3	Fitting Plug	-
