Three Lever To Four Lever Pilot Controller Conversion Kit (Powerllel™)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT364967	1	Field Installation Kit	Whole Goods
2	12H327	2	Lock Washer	3/4"
3	14M7400	1	Lock Nut	M10
4	19M7786	2	Screw	M10 X 30
5	19M7805	1	Screw	M10 X 45
6	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
7	38H1418	2	Fitting	-
8	38H1160	2	Adapter Fitting	-
9	R26448	4	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
10	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	38H1163	2	Adapter Fitting	-
12	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
13	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1276	2	Adapter Fitting	-
15	62H1001	4	Adapter Fitting	SUB FOR 63H1001
16	AT225432	2	Hydr./Pilot Control Valve	4-Lever
17	AT313424	2	Hydraulic Hose	Fabricate
18	AT314046	1	Valve	Auxiliary Valve Section Components Listed On Separate Page
19	AT322416	1	Oil Line	-
20	AT322442	1	Oil Line	-
21	AT336507	2	Hydraulic Hose	Fabricate
22	AT340580	2	Hydraulic Hose	Fabricate
23	AT341524	1	Plate	-
24	AT366733	1	Hydraulic Hose	Fabricate
24	AT421689	1	Hydraulic Hose	Fabricate
25	H77698	6	Tie Band	-
26	T174275	2	Lock Washer	30.950 mm (1-7/32")
27	T215434	2	Clamp	-
28	T228348	1	Cover	-
29	T238029	2	Adjusting Strap	-
30	T78707	2	Nut	30.175 mm (1-3/16")
31	T81029	2	Nut	17.475 mm (11/16")
32	U46753	2	Hose Clamp	-

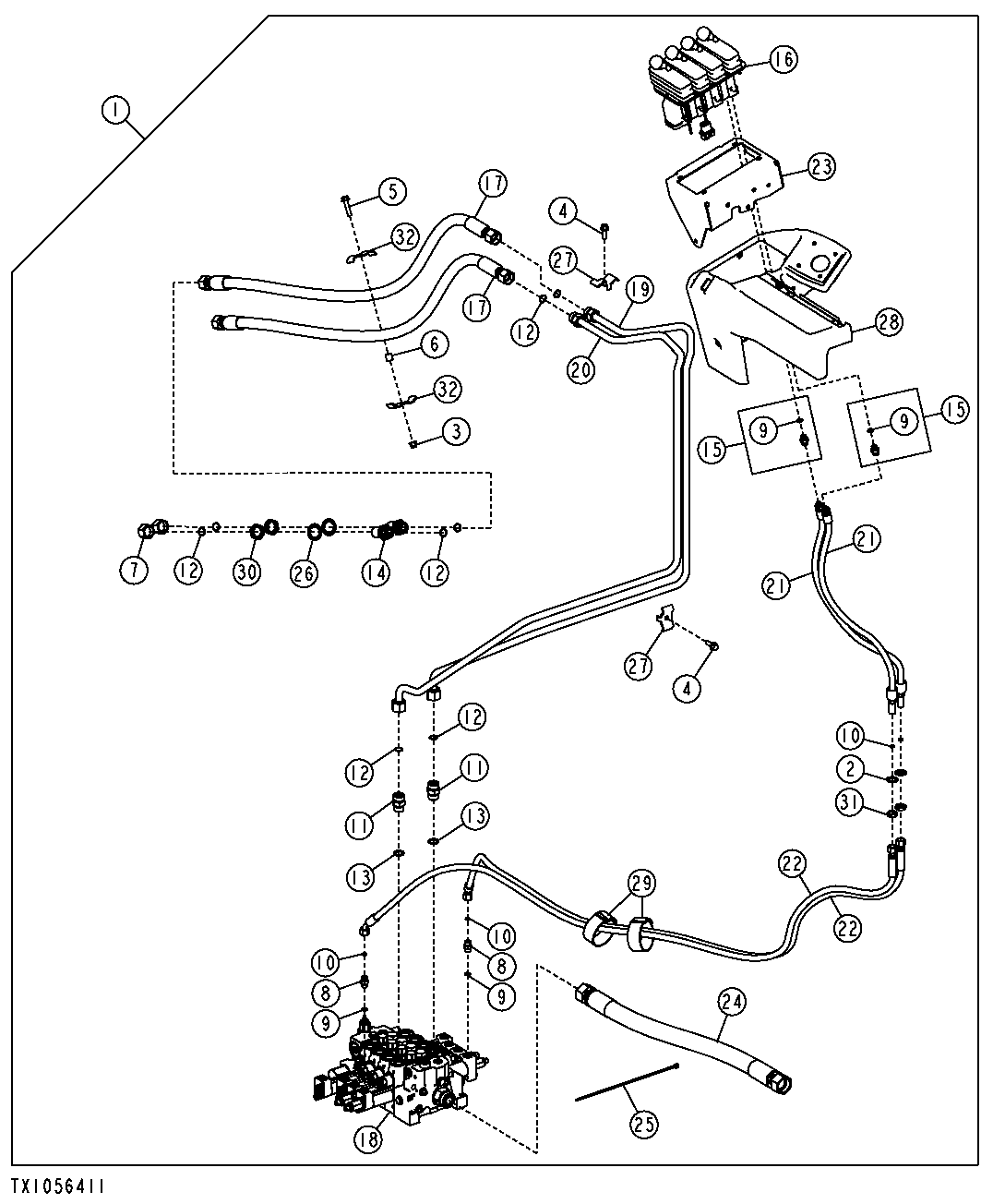

Three Lever To Four Lever Pilot Controller Conversion Kit (Powerllel™)

Нет текстового описания
