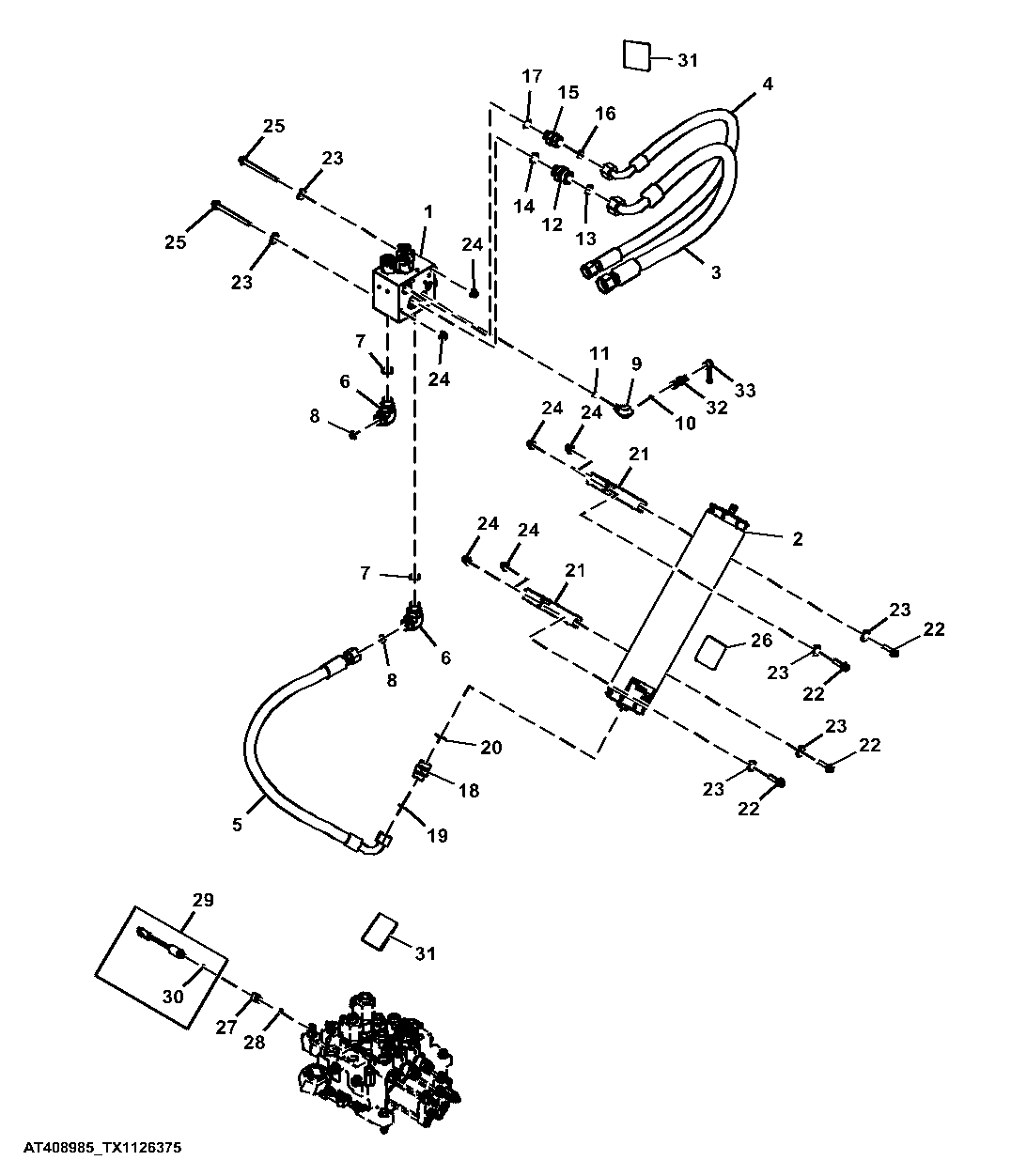

Ride Control (Tool Carrier) (649773 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT442499	1	Hyd Actuated Control Valve	Ride Control Valve Components On Seperate Page
1	AT332291	1	Hyd Actuated Control Valve	Ride Control Valve Components On Seperate Page, NLA, ORDER AT442499
2	AT224493	1	Hydraulic Accumulator	-
3	AT225446	1	Hydraulic Hose	-
4	AT228199	1	Hydraulic Hose	-
5	AT228199	1	Hydraulic Hose	-
6	38H1007	2	Elbow Fitting	-
7	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
8	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	38H1009	1	Elbow Fitting	-
10	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
11	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	38H1179	1	Adapter Fitting	-
13	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
14	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
15	38H1193	1	Adapter Fitting	-
16	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
17	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
18	38H1194	1	Adapter Fitting	-
19	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
20	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
21	T146490	2	Clamp	-
22	19M7804	4	Screw	M10 X 40
23	24M7296	6	Washer	10.500 X 30 X 2.500 mm
24	14M7400	6	Lock Nut	M10
25	19M7898	2	Screw	M10 X 130
26	T215216	1	Label	Accumulator French
26	T215217	1	Label	Accumulator Spanish
26	T180944	1	Label	Accumulator English
27	T158047	1	Adapter Fitting	-
28	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
29	AT223535	1	Pressure Switch	-
30	AT223535	1	Pressure Switch	Ride Control Pressure Switch
31	T146792	2	Safety Sign	Ride Control
32	RE60700	1	Diagnostic Coupling	-
33	R77175	1	Cover	-
