Main Hydraulic Lines (Tool Carrier) (649773 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT365132	1	Suction Hose	-
2	RE52702	1	Clamp	-
3	RE56859	1	Clamp	-
4	38H1007	1	Elbow Fitting	-
5	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
7	38H1163	1	Adapter Fitting	-
8	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
9	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
10	38H1276	2	Adapter Fitting	-
11	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
12	T78707	2	Nut	-
13	T174275	2	Lock Washer	-
14	AT334374	1	Hydraulic Hose	Fabricate
15	AT352745	1	Hydraulic Hose	Fabricate
16	AR21839	1	Clamp	-
17	AT391162	1	Hydraulic Hose	Fabricate
18	AT372138	1	Oil Line	-
19	T352264	1	Adapter	-
20	T78612	2	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
21	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	R58925	2	Clamp	-
24	19M7865	2	Screw	M8 X 16
25	AT308426	1	Oil Line	-
26	AT352332	1	Hydraulic Hose	Fabricate
27	AT336761	1	Hydraulic Hose	Fabricate
28	AT340599	1	Hose	Fabricate
29	AT343495	1	Hydraulic Hose	-
30	AT343571	1	Hydraulic Hose	-
31	AT341195	1	Hydraulic Hose	Fabricate
32	AT343601	1	Hydraulic Hose	-
33	AT353096	1	Hydraulic Hose	-
34	AT371360	1	Hydraulic Hose	-
35	AT338918	1	Hydraulic Hose	Fabricate
36	T238029	1	Adjusting Strap	-
37	28H3485	2	Bushing	0.493" X 0.675" X 2-1/4"
38	T240085	2	Clamp	-
39	24M7296	2	Washer	10.500 X 30 X 2.500 mm
40	19M7348	2	Cap Screw	M10 X 150
41	T172732	1	Adapter Fitting	-
42	L150867	1	O-Ring	23 X 2 mm (29/32" X 0.079")
43	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
44	38H5037	1	Adapter Fitting	-
45	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
46	51M7042	1	O-Ring	13.300 X 2.200 mm
47	24M7241	2	Washer	17 X 34 X 4 mm
48	T203438	1	Clamp	-
49	19M7877	1	Cap Screw	M14 X 30
50	T78612	1	O-Ring	29.870 X 1.778 mm (1.176" X 0.070")
51	38H1097	1	Elbow Fitting	-
52	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
53	AT410916	1	Hydraulic Hose	Fabricate
54	AT410917	1	Hydraulic Hose	-
55	38H1030	1	Tee Fitting	-
56	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
57	RE60701	1	Diagnostic Coupling	-
58	R77175	1	Cover	-
59	AT346015	1	Hydraulic Hose	-
60	AT430685	1	Hydraulic Hose	Fabricate

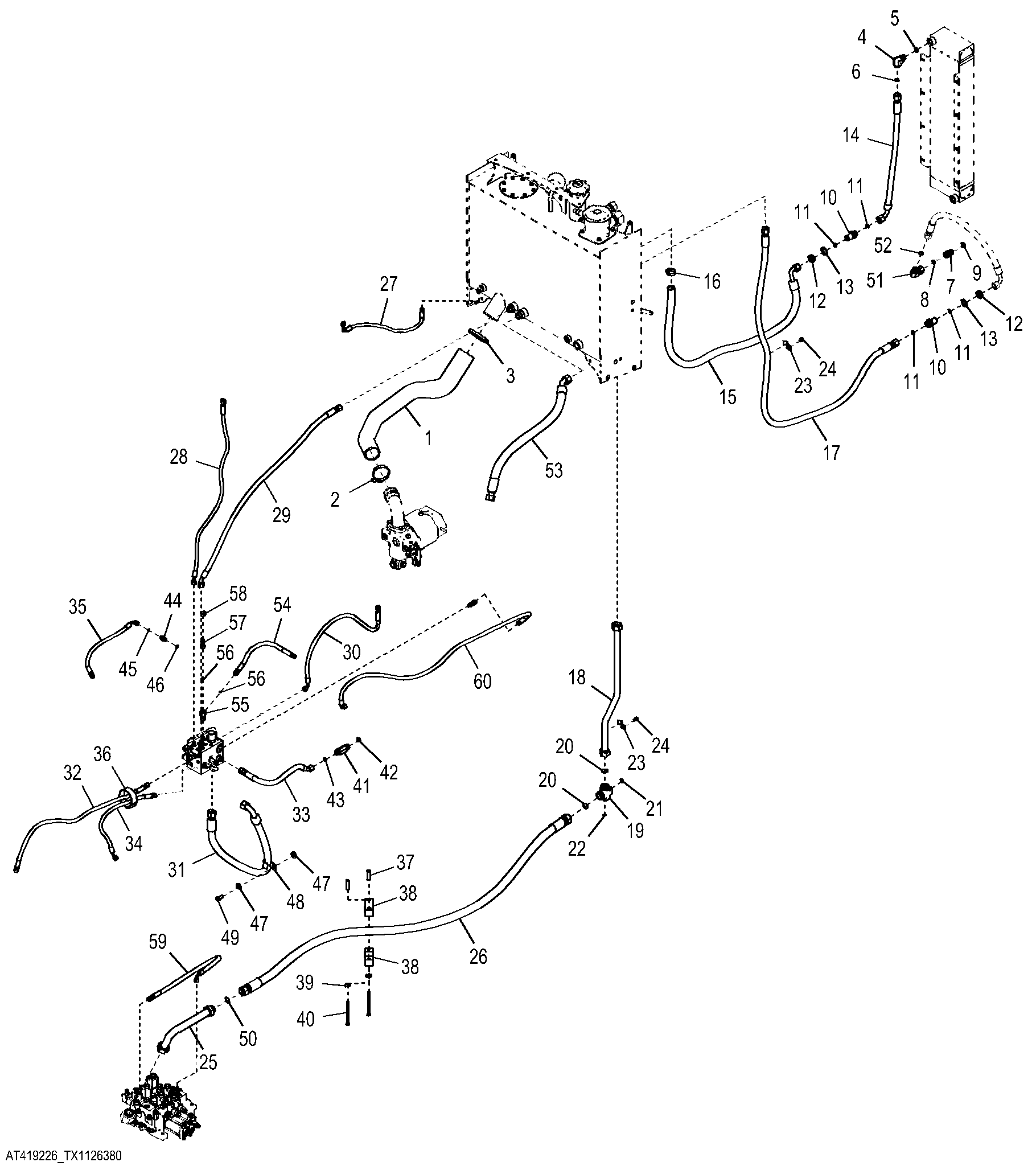

Main Hydraulic Lines (Tool Carrier) (649773 - )
